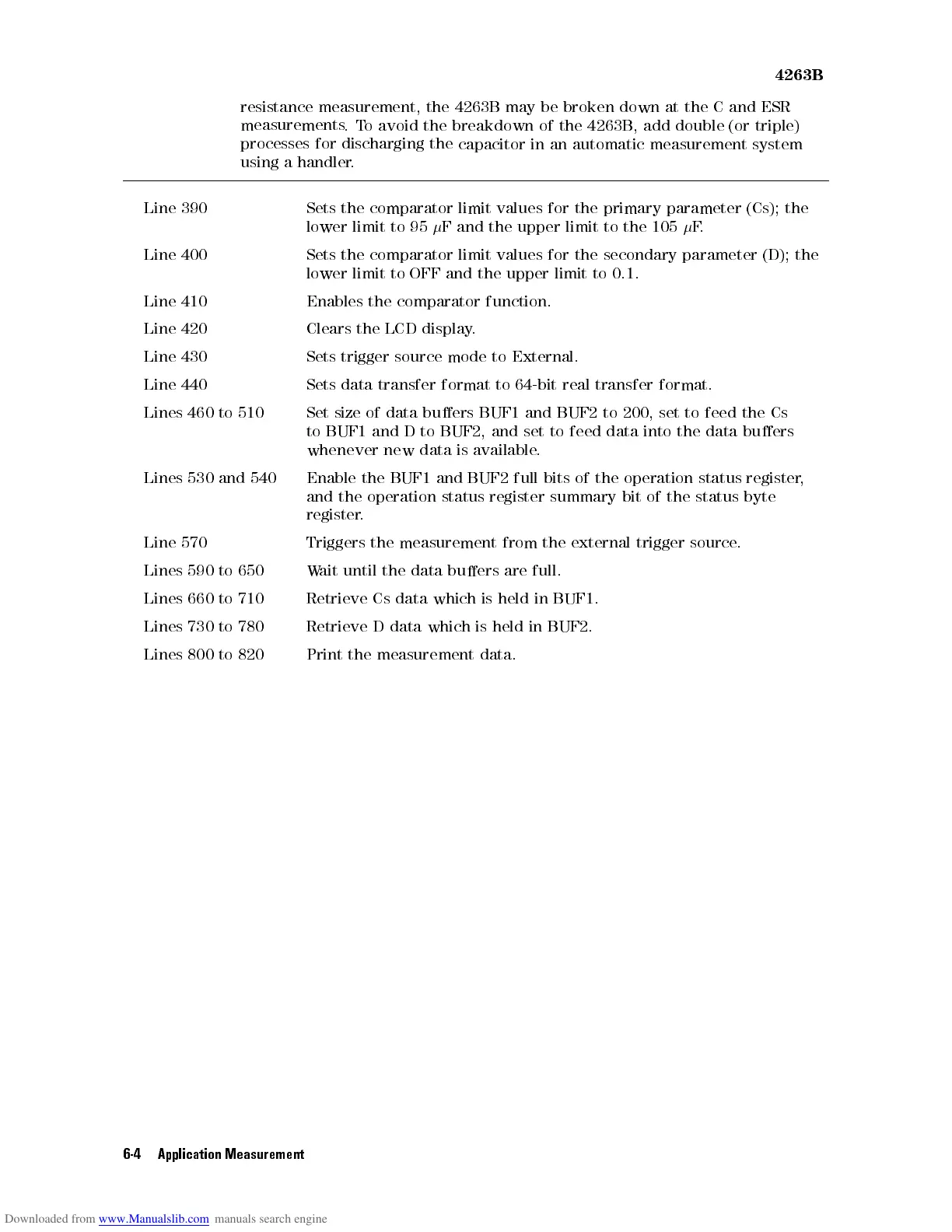

Agilent Technologies 4263B User Manual

4263B
resistance
measurement, the
4263B may
be
broken
down
at
the
C
and
ESR
measurements
.T
o
avoid
the
breakdown
of
the
4263B
,
add
double
(or
triple)
processes
for discharging
the
capacitor
in
an
automatic
measurement
system
using
a handler
.
Line
390
Sets the
comparator limit
values for
the primary
parameter (Cs);
the
lower
limit
to 95
 F
and the
upper limit
to
the
105

F
.
Line
400
Sets the
comparator limit
values for
the secondary
parameter
(D);
the
lower
limit
to OFF
and the
upper limit
to 0.1.
Line
410
Enables the
comparator function.
Line 420
Clears the
LCD display
.
Line 430
Sets trigger
source mode
to
External.
Line 440
Sets data
transfer format
to
64-bit
real
transfer
format.
Lines 460
to
510
Set
size
of
data
buers
BUF1
and
BUF2
to
200,
set
to
feed
the
Cs
to
BUF1
and
Dto
BUF2,
and
set
to
feed
data
into
the
data
buers
whenever
new
data
is
available.
Lines
530
and
540
Enable
the
BUF1
and
BUF2
full
bits of
the operation
status register
,
and
the
operation
status
register
summary
bit
of
the
status
byte
register
.
Line
570
Triggers
the
measurement from
the external
trigger
source
.
Lines
590
to
650
W
ait
until the
data
buers
are
full.
Lines
660
to
710
Retrieve
Cs
data
which is
held
in
BUF1.
Lines 730
to
780
Retrieve
D
data
which
is
held
in
BUF2.
Lines 800
to
820
Print
the
measurement
data.
6-4 Application Measurement
