Side Panel AC Power Connectors
Foreline pump power receptacle (top)
The foreline pump power cord receptacle located on the left side of the MS
provides AC power for the foreline pump. If the power switch is off, no power
is supplied to the foreline pump.
Main power cord receptacle (bottom)
The AC power cord located on the left side of the MS brings in all electrical
power for the MS. The power cord can be detached from the MS.

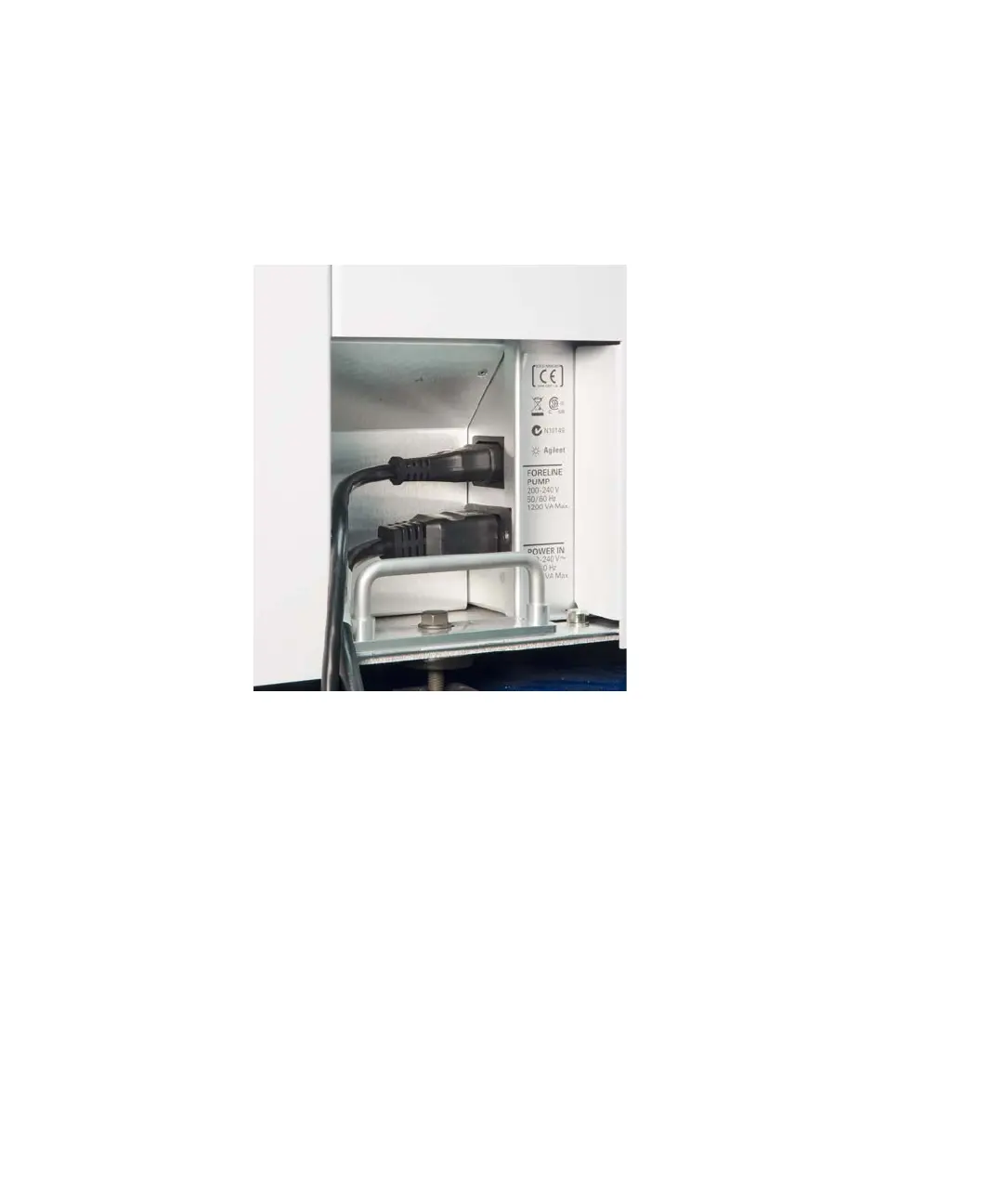

Figure 2 Side panel power supply (left) and back panel connections (right)
