Installation 1
Installation and First Startup 29

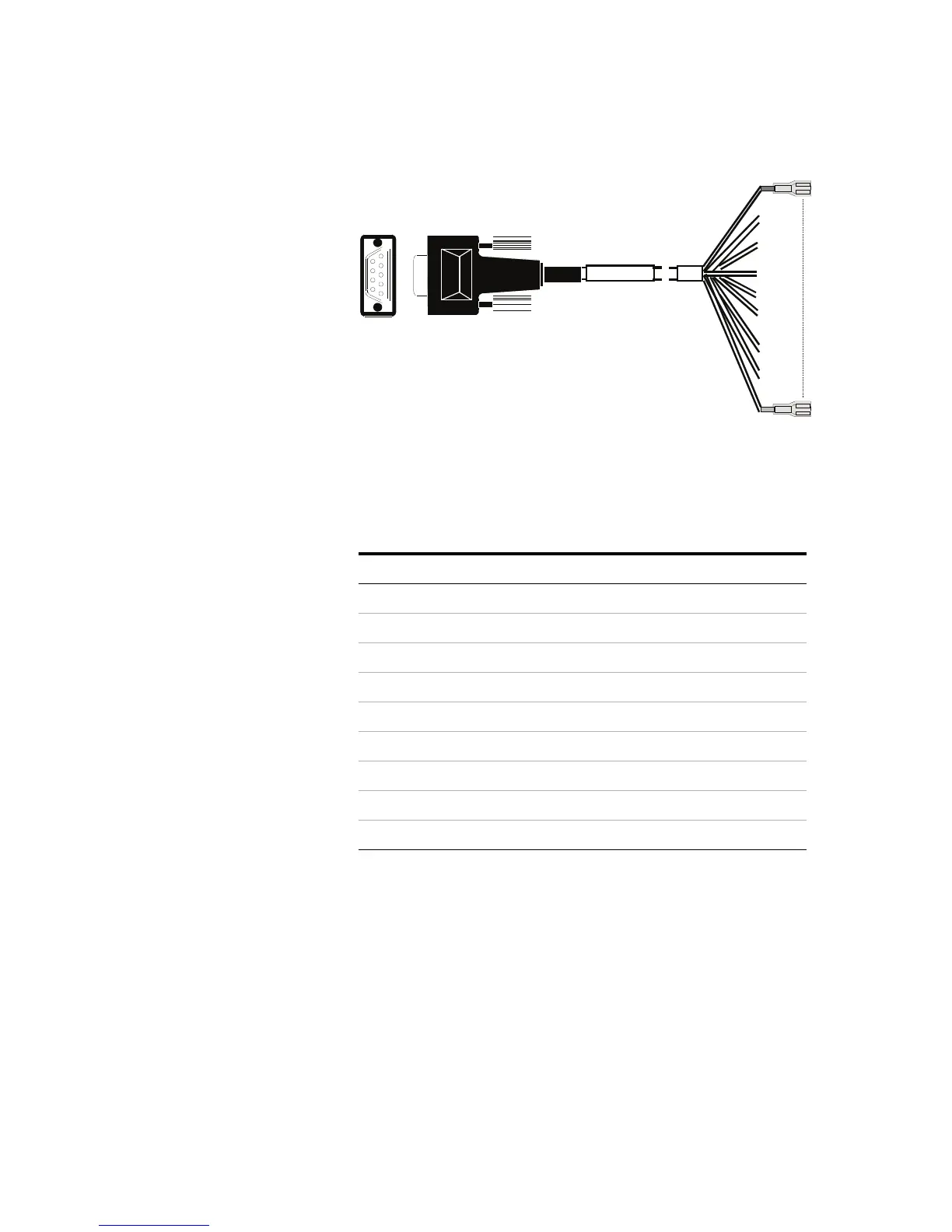

Figure 9 General purpose remote start/stop cable, Agilent product to
non-Agilent product
To ensure compatibility when connecting to a non- Agilent
product, a detailed knowledge of signal levels, driver and
receiver circuitry, and timing is necessary.
Table 7 Cable pinouts, general purpose remote start/stop cable
Wire color Signal name
Black Ground
White Prepare (low true)
Red Start (low true)
Green Start relay
Brown Start relay
Blue Not used
Orange Ready (high true input)
Yellow Stop (low true)
Violet Not used
