Compare Results
When the run completes, compare the output chromatogram
against the examples below. Is correctly installed and
operating properly, the output chromatogram should be
similar to the example here.

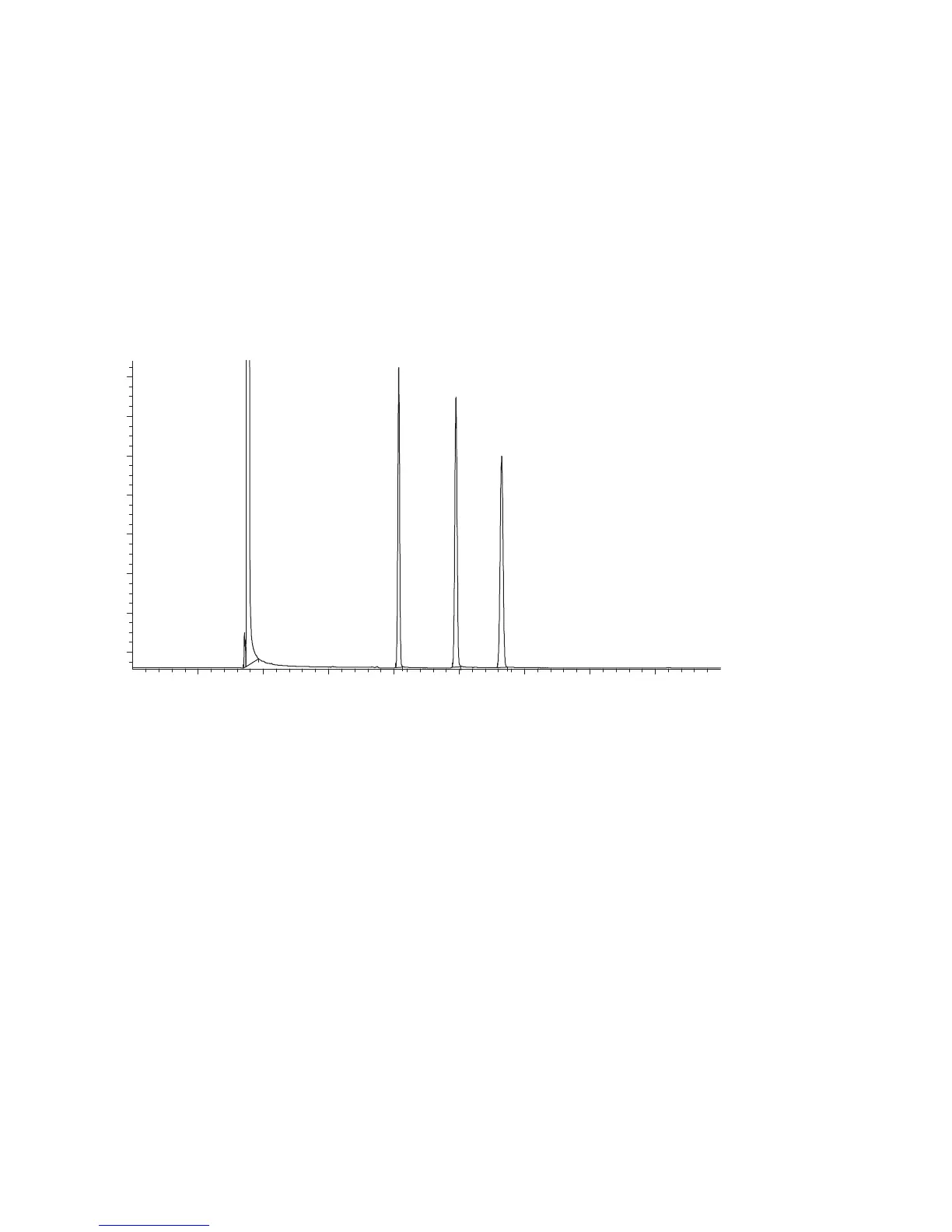

Figure 21 FID checkout chromatogram
min
0.50.0 1.0 1.5 2.0 2.5 3.0 3.5 4.0
pA
20
40
60
80
100
120
140
160
FID1 A, (HS_ECD\HSVI0004.D)
0.858
0.880
2.037
2.476
2.825
Ethanol
(40,000 counts
typical)
Dichlorobenzene
Nitrobenzene
t-Butyl disulfide
