1-18
Making Measurements
Using Display Functions
4 Param Displays Softkey
The menu does two things:
• provides a quick way to set up a four-parameter display
• gives information for using softkeys in the menu
Figure 1-11 shows the first screen. Six setup options are described
with softkeys through . is a four-parameter display
where each channel is displayed on its own grid. Pressing immediately
produces a four-grid, four-parameter display. is also a four-parameter display,
except that channel 1 and channel 2 are overlaid on the upper grid and channel 3 and
channel 4 are overlaid on the lower grid. The other setup softkeys operate similarly. Notice
that setups D and F produce displays which include Smith charts.
Pressing opens a screen which lists the order of keystrokes you would have to
enter in order to create some of the setups without using one of the setup softkeys. The
keystroke entries are listed (from top to bottom) beneath each setup and are color-coded to
show the relationship between the keys and the channels. For example, beneath the
four-grid display, [CHAN 1] and [MEAS] S11 are shown in yellow. Notice that in the
four-grid graphic, Ch1 is also yellow, indicating that the keys in yellow apply to channel 1.
Pressing opens a screen which lists the hardkeys and softkeys associated
with the auxiliary channels and setting up multiple-channel, multiple-grid displays. Next
to each key is a description of its function.

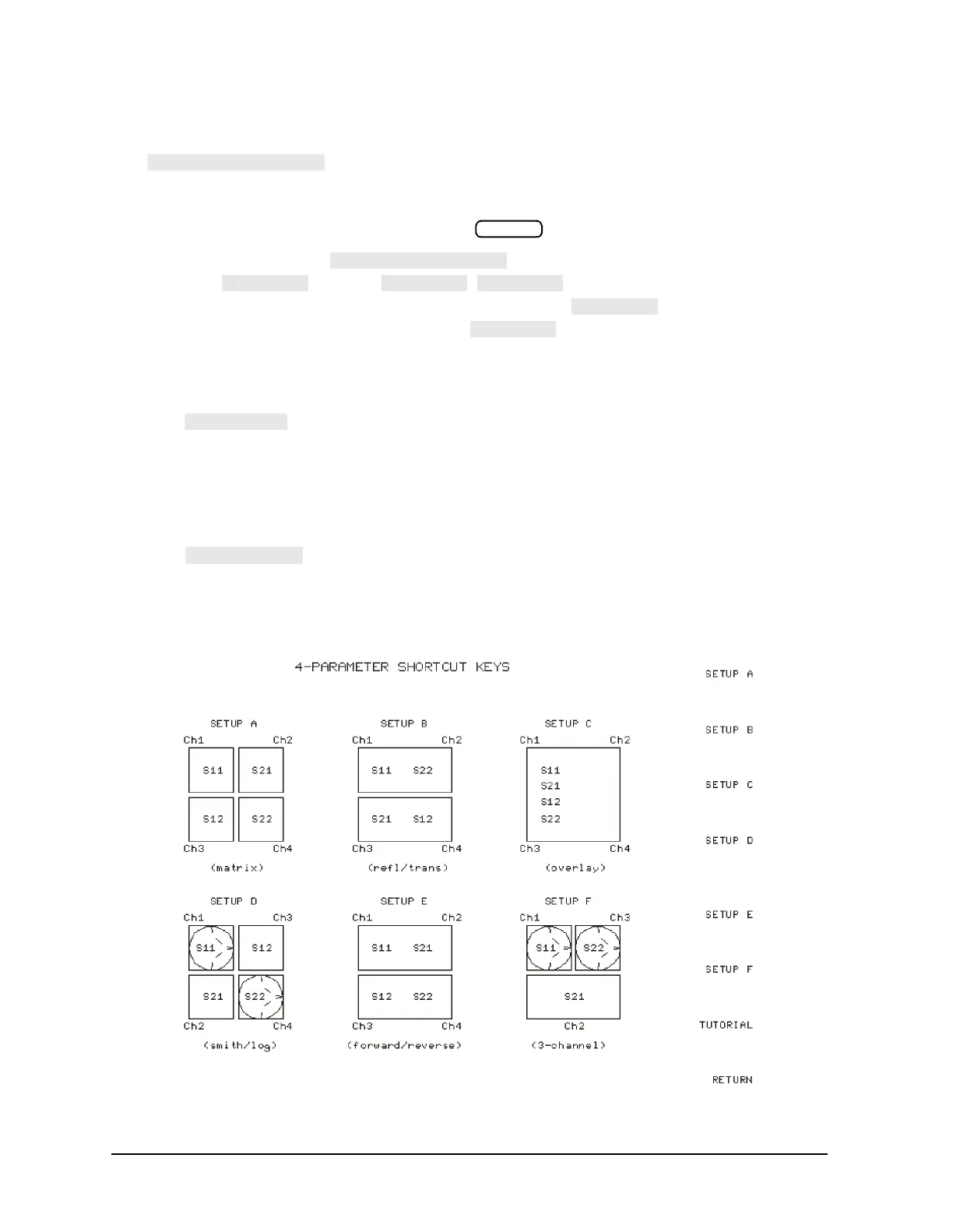

Figure 1-11 4 Param Displays Menu
