Calibrating for Increased Measurement Accuracy
Calibrating for Noninsertable Devices
NOTE You must use the floppy disk to store the following calibrations. Select the
floppy disk by pressing .
3. Connect adapter A3 (same sex and connector type as the DUT) to adapter A2 on port 2
as shown in Figure 6-15.

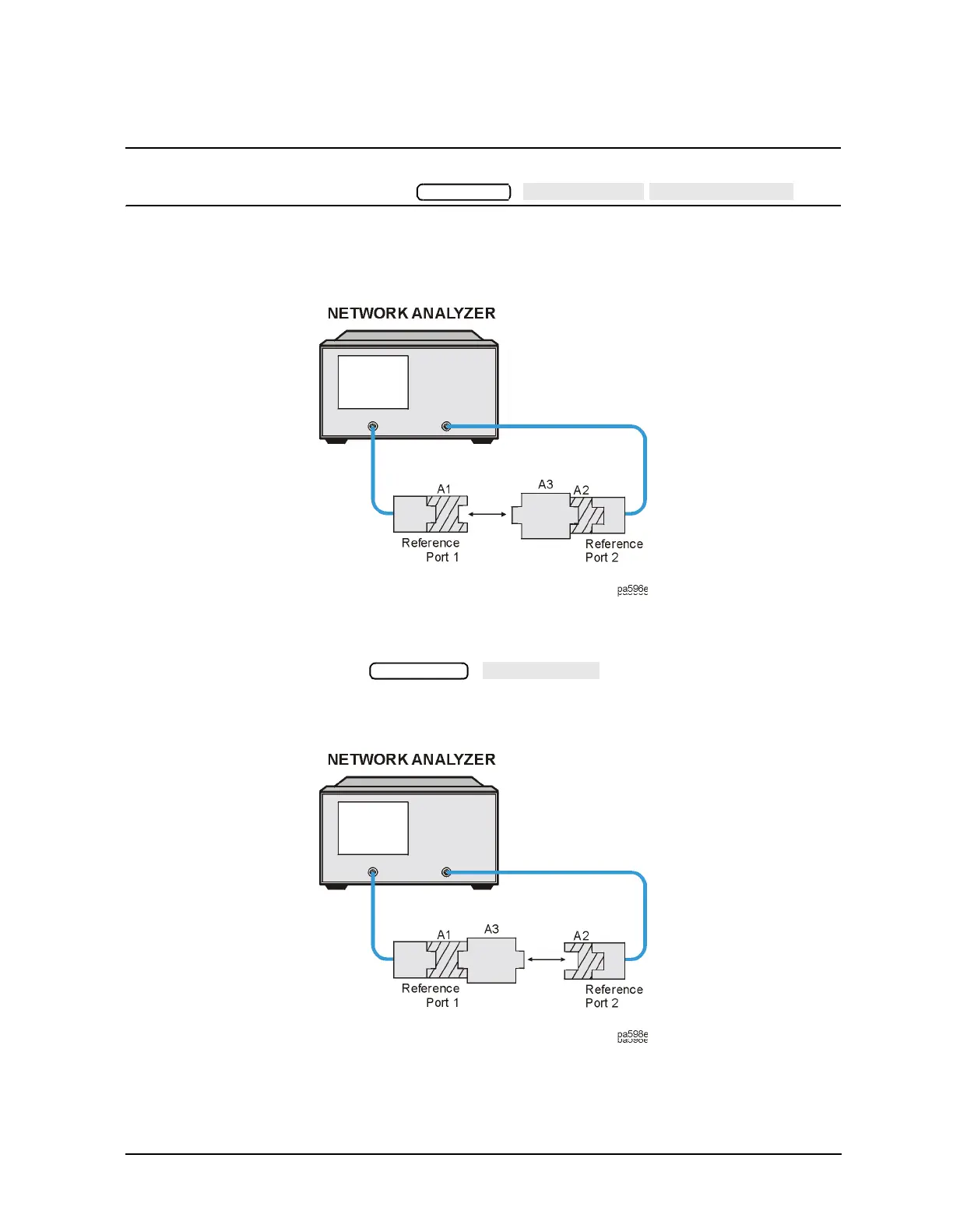

Figure 6-15 Two-Port Cal Set 1
4. Perform a full 2-port calibration between ports 1 and 2 using calibration standards
appropriate for the connector type at port 1 (the connector type for adapter A1). Save
the calibration by selecting . Name the file "PORT1."
5. Connect adapter A3 to adapter A1 on port 1 as shown in Figure 6-16.
Figure 6-16 Two-Port Cal Set 2
