1-7
8753ES Specifications and Characteristics
Corrected System Performance

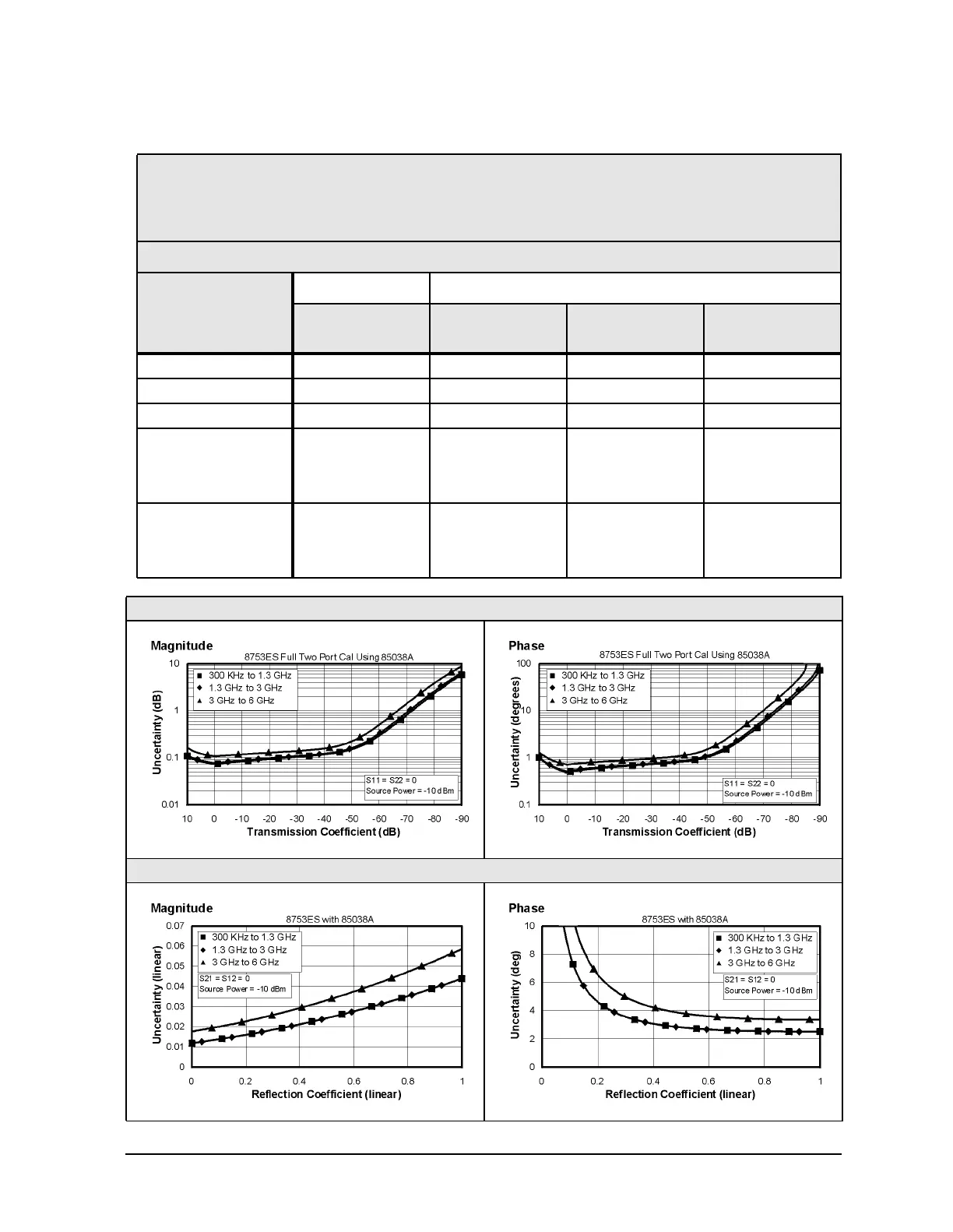

Table 1-5 7/16-mm Device Connector Type
Network Analyzer: 8753ES, Standard and Option 006
Calibration Kit: 85038A (7/16-mm, 50 Ω)
Cables: 11857D
Calibration: Full 2-Port
IF BW = 10 Hz, Avg off, Temp = 25 ± 5°C with < 1°C deviation from cal temp, Isol cal with avg = 8
Description
Typical Specification
30 to 300 kHz 300 kHz to
1.3 GHz
1.3 to 3 GHz 3 to 6 GHz
(Opt 006 only)
Directivity 40 dB 40 dB 40 dB 36 dB
Source Match 37 dB 37 dB 37 dB 34 dB
Load Match 40 dB 40 dB 40 dB 36 dB
Refl. Tracking
Magnitude (db) ±(0.089 + .02/°C) ±(0.089 + .01/°C) ±(0.089 + .02/°C) ±(0.115 + .03/°C)
Phase (deg) ±(0.587 + .05/°C) ±(0.587 + .05/°C) ±(0.587 + .05/°C) ±(0.759 + 0.2/°C)
Trans. Tracking
Magnitude (db) ±(0.066 + .02/°C) ±(0.029 + .01/°C) ±(0.033 + .02/°C) ±(0.062 + .03/°C)
Phase (deg) ±(0.436 + .05/°C) ±(0.192 + .05/°C) ±(0.219 + .05/°C) ±(0.436 + 0.2/°C)
Transmission Uncertainty (Specification)
Reflection Uncertainty (Specification)
