2-12
Adjusting the Analyzer
To adjust input flatness
6 Normalize the measurement.
a Press the
[ setup 1 ] softkey.
b Set the network analyzer’s input to the reference channel.
c Wait for a complete sweep on the network analyzer.
d Store the trace data in a storage register.
e Set the network analyzer to divide the reference channel by the
storage register.

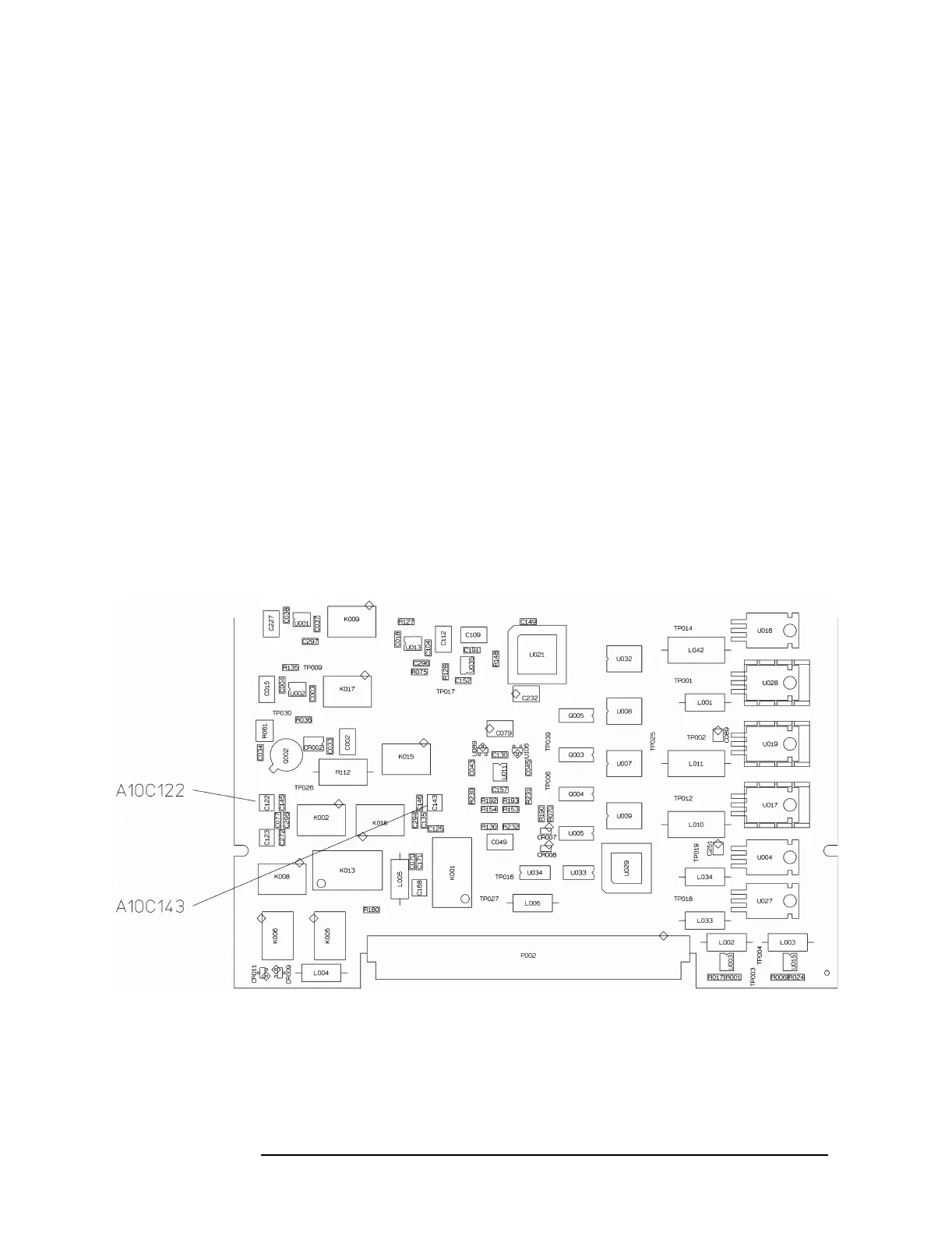

7 Adjust A10 C143.
a Press the
[ setup 3 ] softkey.
b Set the network analyzer’s reference level to the value at 10 kHz.
c Center the trace on the network analyzer’s display, then set the
scale to 0.1 dB/div.
d Adjust C143 for a flat trace using the flat-edge adjustment tool.
To continue the input adjustments, go to the next adjustment.
