3-4
Replacing Assemblies
What to do b
efore
replacing the analog
sour
ce
What to d
o before replac
ing the an
alog s
ource
Bef
ore replacing
the A35 Analog Sourc
e assembl
y

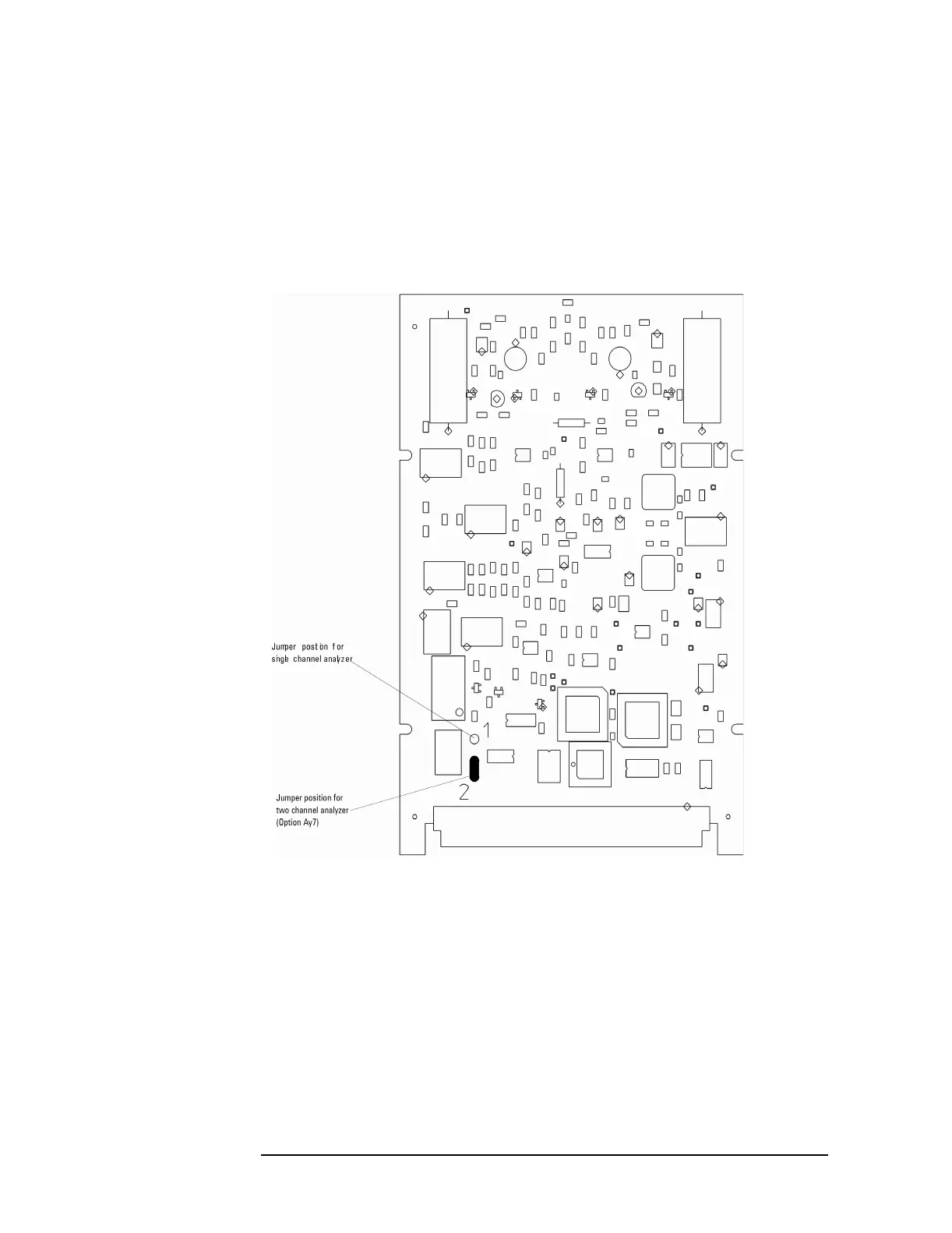

, check that the jum
per
is in the correct p
osition.
