3-10
Replacing Assemblies

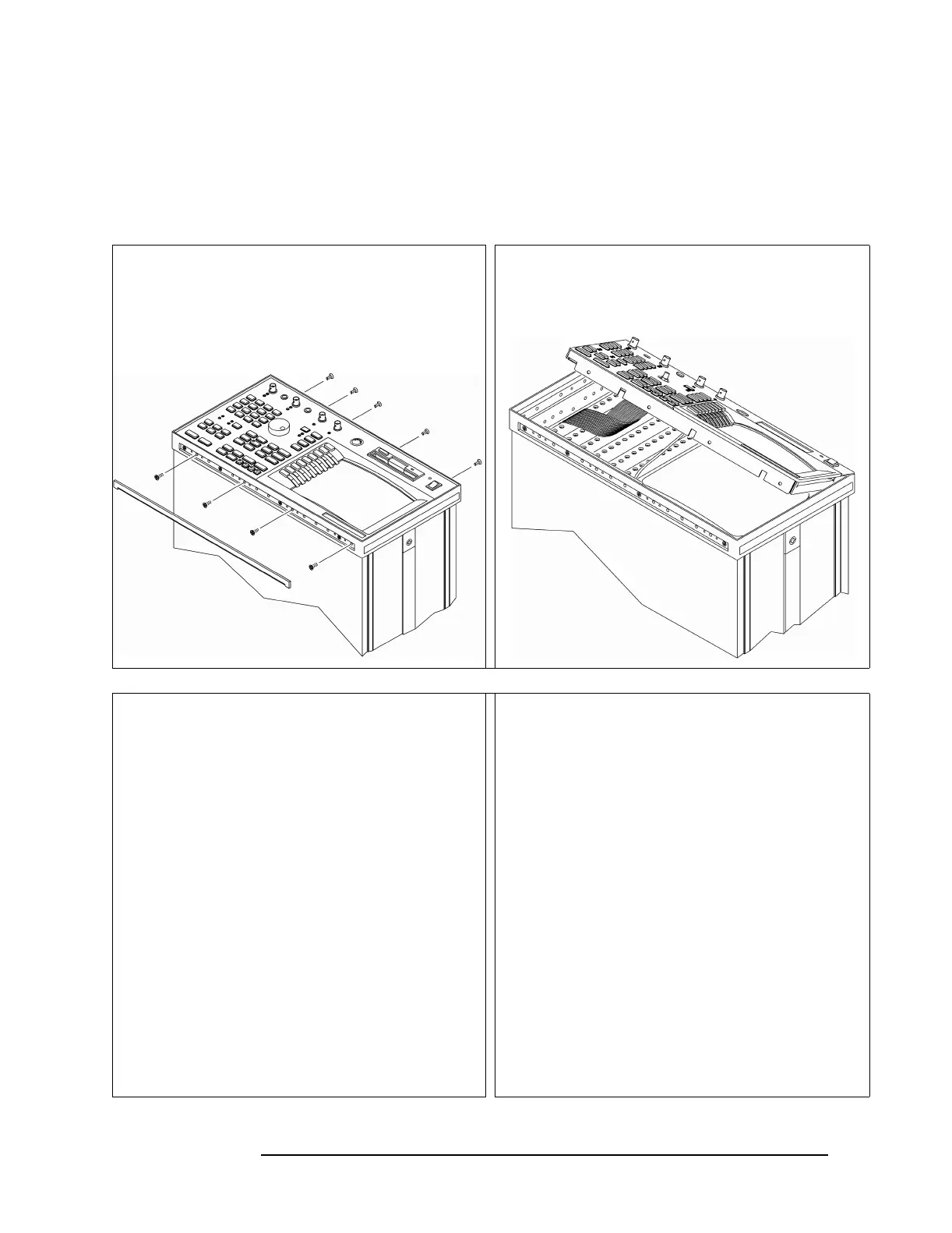

To remove front panel
To remove front panel
1
Remove trim strip from top of front frame. Using a T-10 torx
driver, remove four screws from top and five screws from
bottom of front frame.
2
Pull the top of the front panel out of the frame.
3
Disconnect the ribbon cable from the A82 Flat Panel Display
Interface assembly. Disconnect the ribbon cable from the
Keyboard assembly. Disconnect the coaxial cables
connected to the front panel BNCs. Disconnect the probe
power cables connected to the A91 Analog Motherboard
assembly. Disconnect the power switch cable.
