Replacing Assemblies
To remove analog motherboard
To remove analog motherboard

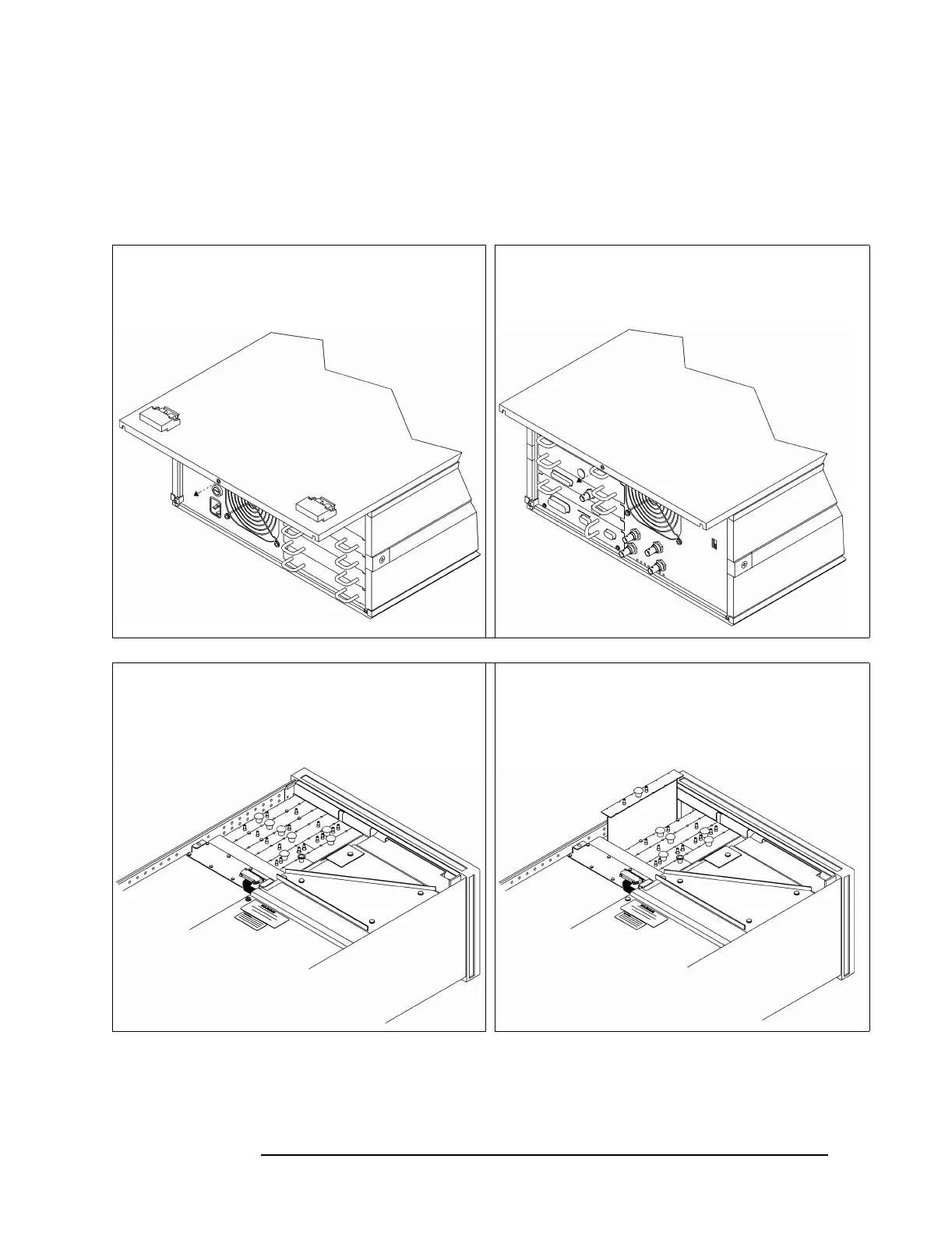

1
Using a T-15 torx driver, remove the screw from the back of
the bottom cover. Slide the cover off.
2
Using a T-15 torx driver, remove the screw from the back of
the top cover. Slide the cover off.
3
Disconnect the coaxial cables from the assemblies.
4
Using a 5 mm nut driver, remove the screws holding the
assemblies in the card nest. Remove all the assemblies
from the card nest.
