Agilent Technologies 89410A - To Remove Digital Motherboard

3-23
Replacing Assemblies
To remove digital motherboard
To remove digital motherboard

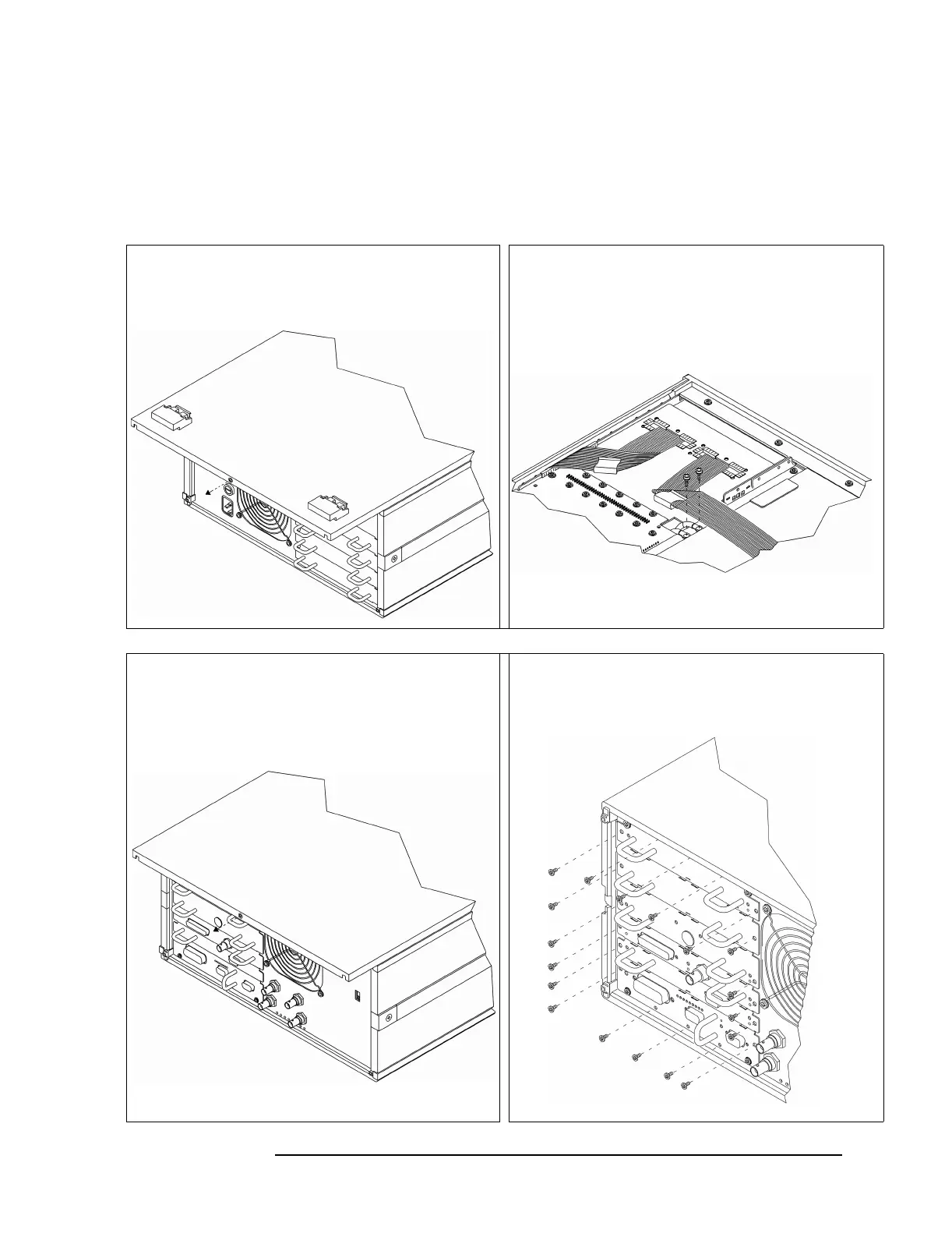

1
Using a T-15 torx driver, remove the screw from the back of
the bottom cover. Slide the cover off.
2
Using a 2.5 mm hex driver, remove the screws that fasten
the red cable to A95 J301 and the black cable to A95 J302.
3
Using a T-15 torx driver, remove the screws from the back of
the top cover. Slide the cover off.
4
Using a T-10 torx driver, remove the screws from the
assembly covers.
