Getting Started
14 Agilent Cary 630 FTIR Spectrometer User’s Guide
Connecting Power
To connect power to the spectrometer system:
1 Insert the provided power connection from power supply into the
power connector located on the lower left side at the rear of the
Cary 630 FTIR system (see Figure 2).

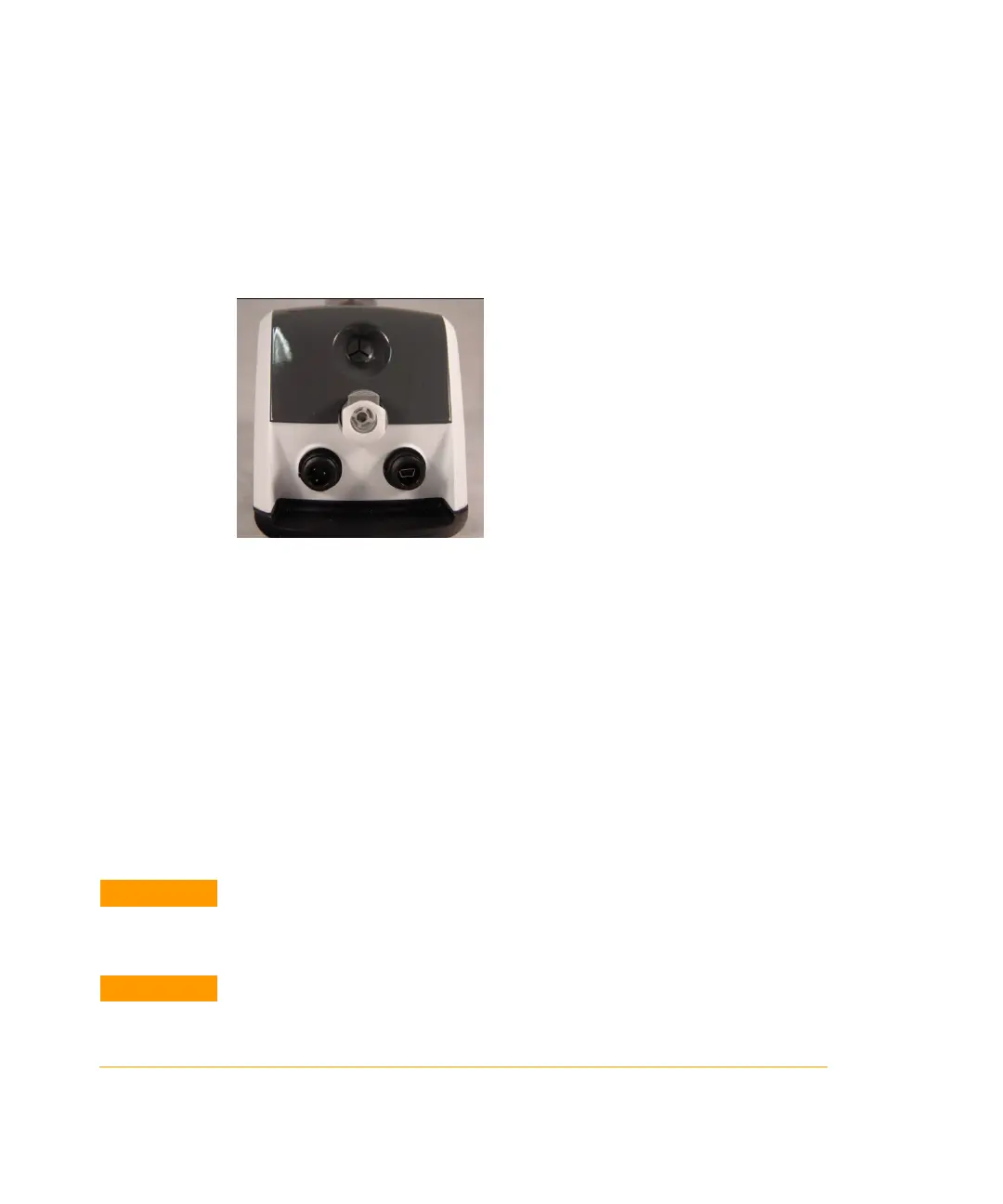

Figure 2. Attaching the power cord
2 Thread the blue cap onto the power connector by rotating it
clockwise until finger-tight. To avoid damage to the plastic
connector, be careful not to over-tighten.
3 The appropriate power supply cabling will be provided with the
system. Connect the opposite end of the power cable to the AC
power outlet.
4 Connect the Mini USB communication cable to the USB connector
on the back right of the instrument.
Thread the blue cap onto the power connector by rotating it
clockwise until finger-tight. To avoid damage to the plastic
connector, be careful not to over-tighten.
CAUTION
To prevent any power startup damage or problems, connect the power cord to
the spectrometer system first and then to the power outlet.
CAUTION
To avoid damage to the system due to power surges or a faulty power source,
always use a UL approved power surge protection strip between the power
outlet source and the system power cord.
Power USB
