28 Agilent Cary 8454 UV-Visible Spectroscopy System Operator’s Manual
2 Introduction to Your System
Agilent Cary 8454 UV-Visible Spectrophotometer — Overview
Rear View
All connections are made at the rear of the spectrophotometer, see Figure 3.
The multicell connector allows you to connect a multicell transport.
The GPIO (general-purpose input/output) connector allow you to control a
sipper and autosampler or other accessories depending on the software you
are using.
The remote connector is currently not used by Agilent instrument control
software. It can be used e.g. to synchronize instruments.
The RS232C connector may be used to control the spectrophotometer from
a computer through RS232 connection, using appropriate software. The
Multiple Instrument Firmware Tool provided can be used with RS232
communication. The UV-Visible ChemStation software currently supports
LAN communication only.
The MIO board slot is reserved for a LAN interface board.
The accessory board slot is reserved for future use.

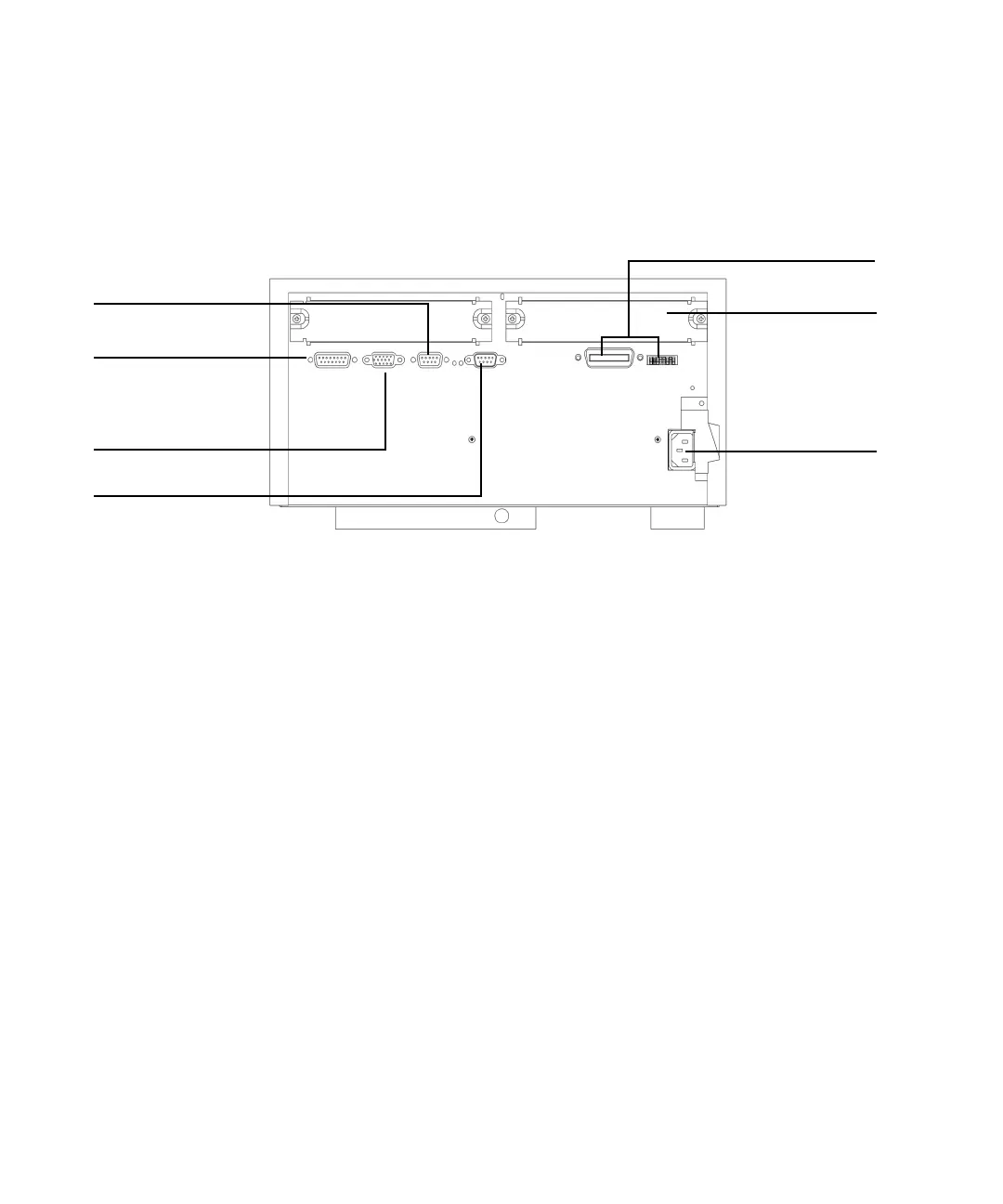

Figure 3 Rear view of spectrophotometer
Line connector
GPIB connector
and switches
Multicell transport
connector
GP-IO connector
RS 232 connector
Remote connector
MIO slot for
LAN interface
