Agilent Cary 8454 UV-Visible Spectroscopy System Operator’s Manual 33
Introduction to Your System 2
General Purpose Agilent ChemStation Software for UV-Visible Spectroscopy — Overview

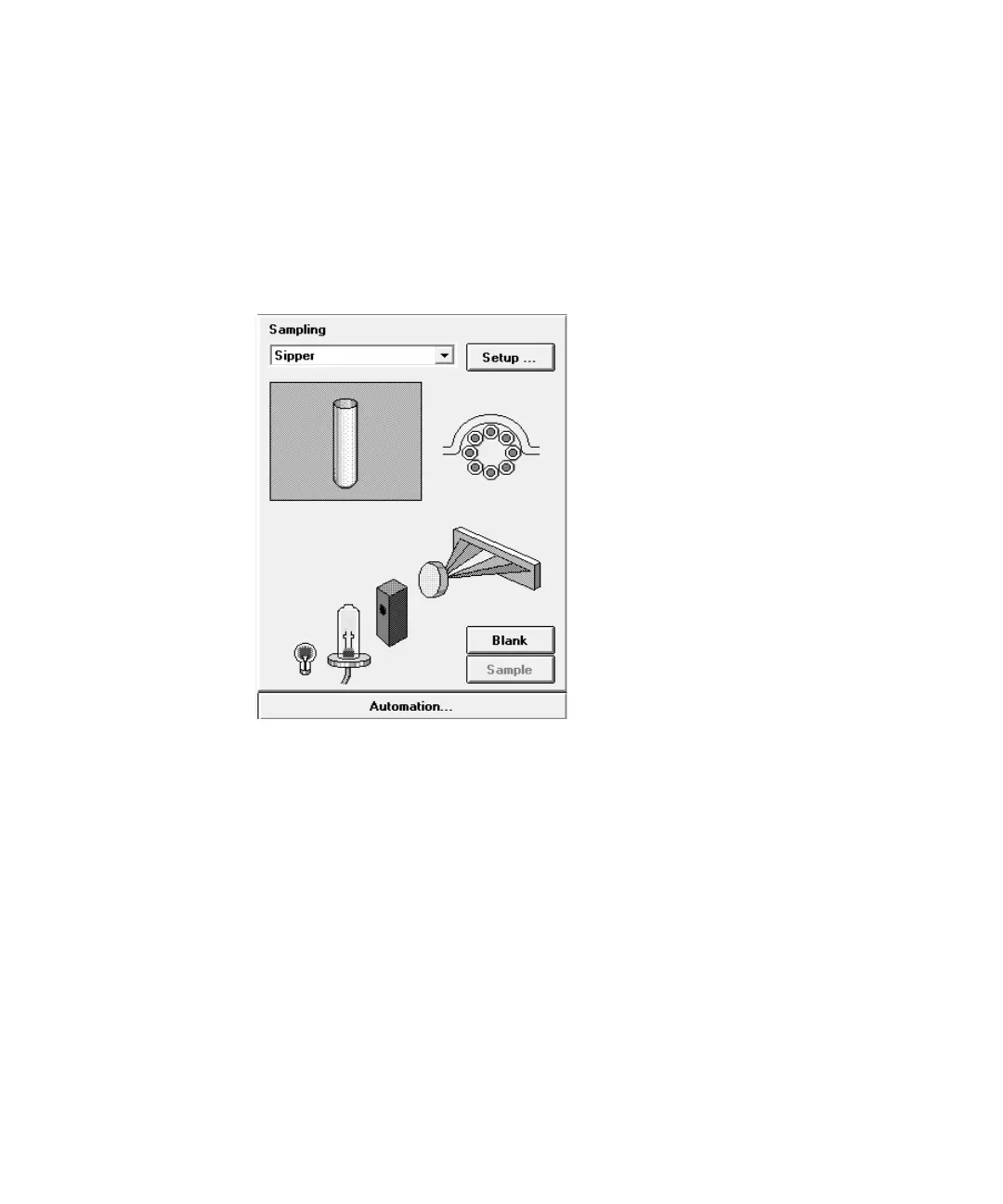

Instrument Panel
The instrument panel is below the analysis panel. It displays and controls your
sampling devices and spectrophotometer. Some of the graphical elements on
this panel are active items which are used, for example, to switch lamps on or
off, or run a peristaltic pump.
When you move the mouse across an active area, the cursor changes. Click in
an active area to bring up a small menu with selections, or to perform an
operation.
In addition you can select a sampling system from the list of available systems.
Its parameters can be adjusted by means of the Setup button.
