76 Chapter 2
Front-Panel Key Reference
Auto Couple

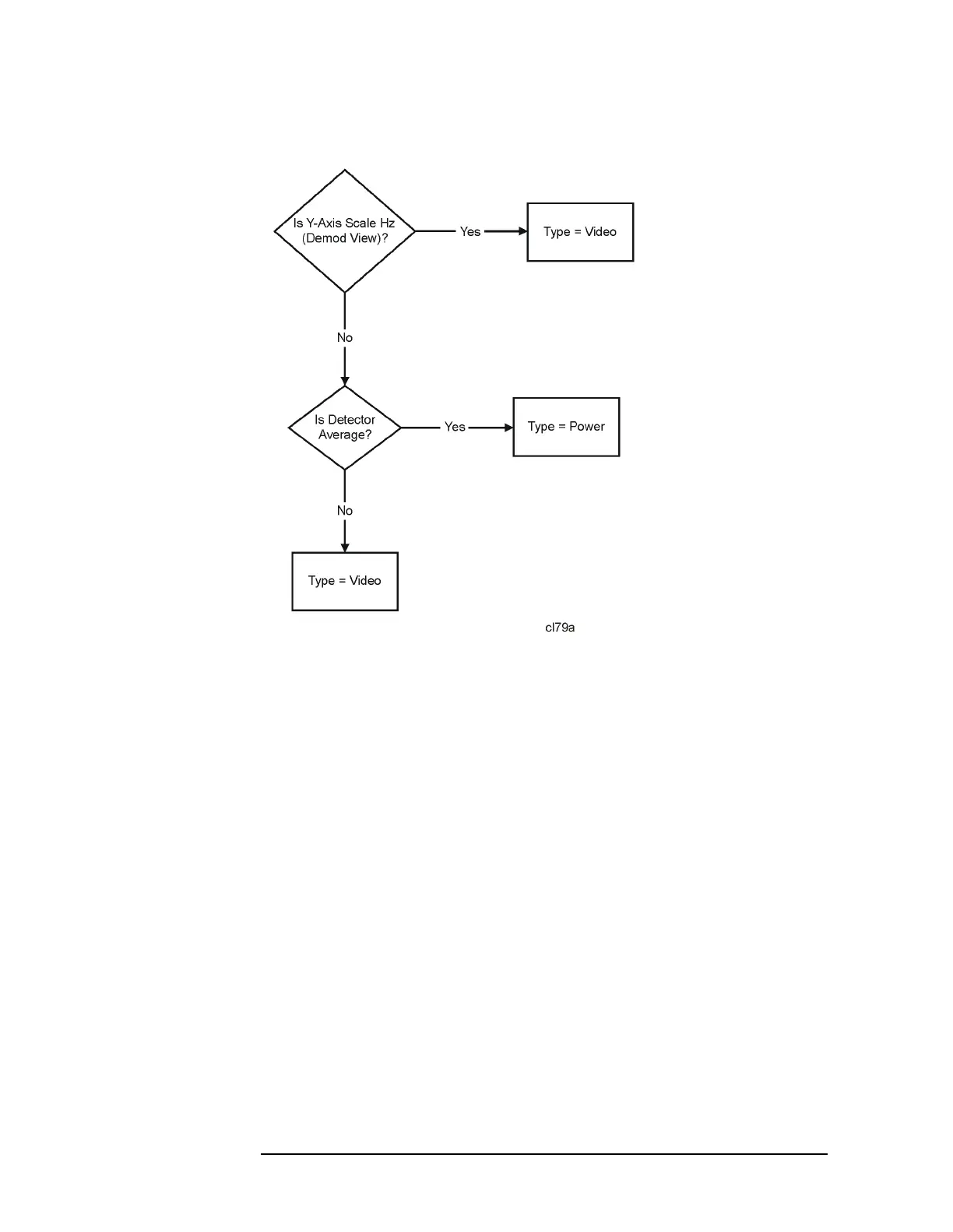

Figure 2-2 Auto Rules for Average Type
Key Access:
Auto Couple
Video Avg
Video averaging averages the data as appropriate for
the y-axis scale. When
Avg Type, Video Avg is selected,
VAvg appears on the left side of the analyzer display if
Average is On.
Key Access:
Auto Couple, Avg Type
Pwr Avg
Power averaging is performed by converting the trace
data from logarithmic to linear power units, and then
averaging the power trace data. When
Avg Type, Pwr
Avg
is selected, PAvg appears on the left side of the
analyzer display if
Average is On.
Key Access:
Auto Couple, Avg Type
