Agilent Technologies E5071C Compliance Tests

Agilent MOI for DisplayPort Cable & Connector Compliance Tests
11

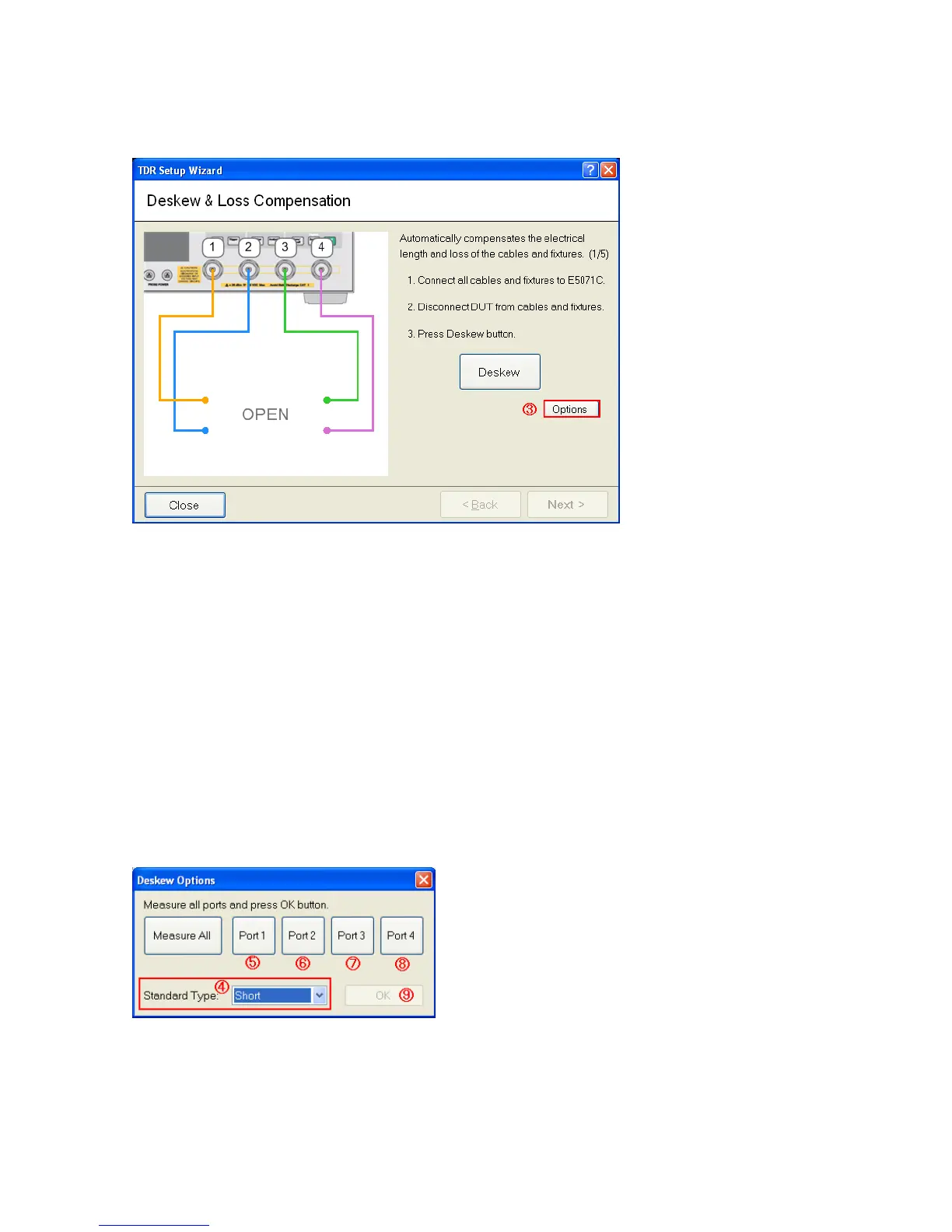

5. Select standard type (item 4) to Short.
6. Connect “Short” standard to Port1.
7. Click Port 1 (item 5). Wait until the check-mark appears under Port1.
8. Connect “Short” standard to Port2.
9. Click Port 2 (item 6). Wait until the check-mark appears under Port2.
10. Connect “Short” standard to Port3.
11. Click Port 3 (item 7). Wait until the check-mark appears under Port3.
12. Connect “Short” standard to Port4.
13. Click Port 4 (item 8). Wait until the check-mark appears under Port4.
14. Click OK (item 9).
15. Click Next.
16. Connect “Thru” standard between Port 1 and Port 3.
