Agilent Technologies E5071C Compliance Tests

Agilent MOI for DisplayPort Cable & Connector Compliance Tests
12

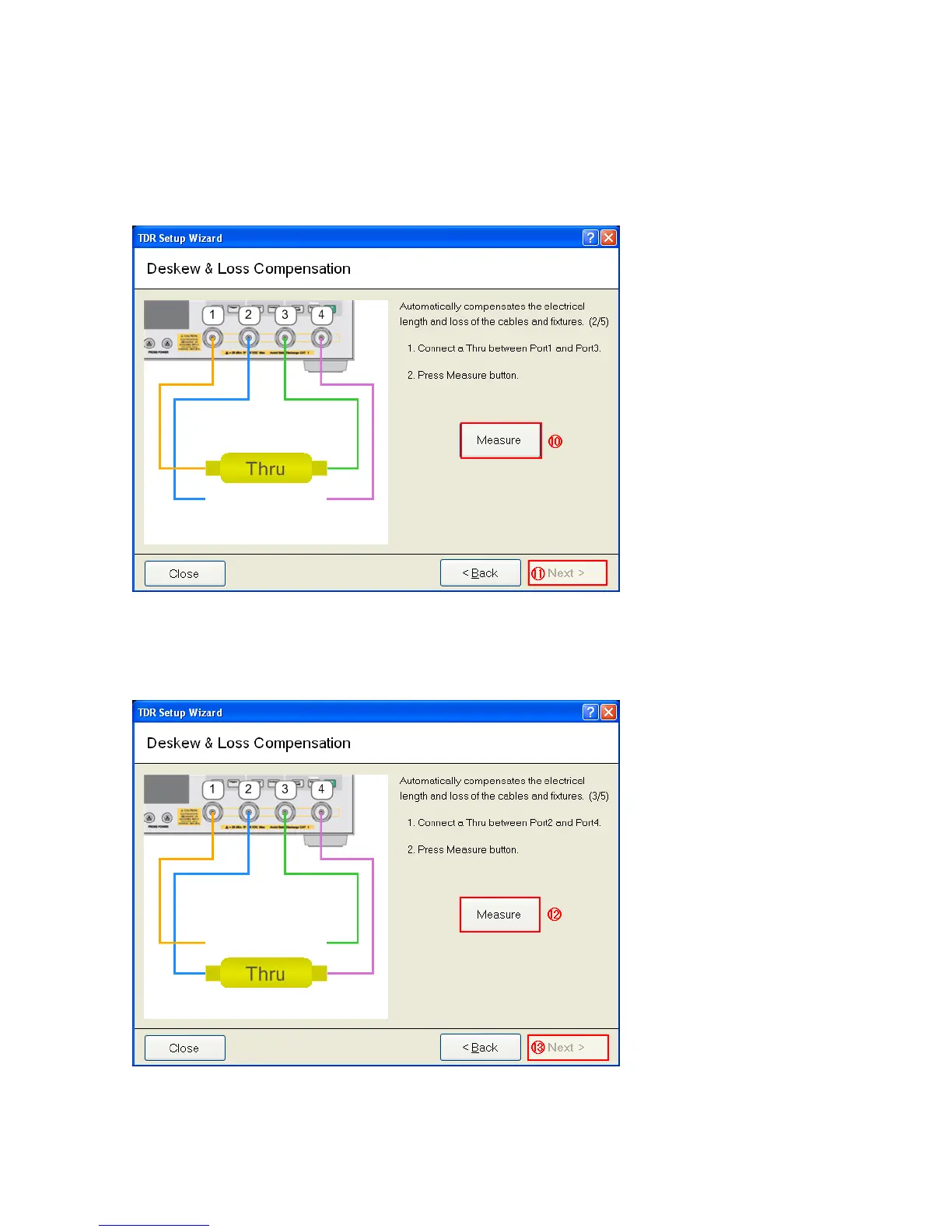

17. Click Measure (item 10).
18. Click Next (item 11).
19. Connect “Thru” standard between Port 2 and Port 4.
20. Click Measure (item12).
21. Click Next (item13).
22. Connect “Load” standard to Port 1.
