Agilent Technologies E5071C - Page 27

Agilent MOI for DisplayPort Cable & Connector Compliance Tests
27
Note: Once you finish the measurement, switch the Display Port cable end and repeat the
same measurement for the opposite direction.

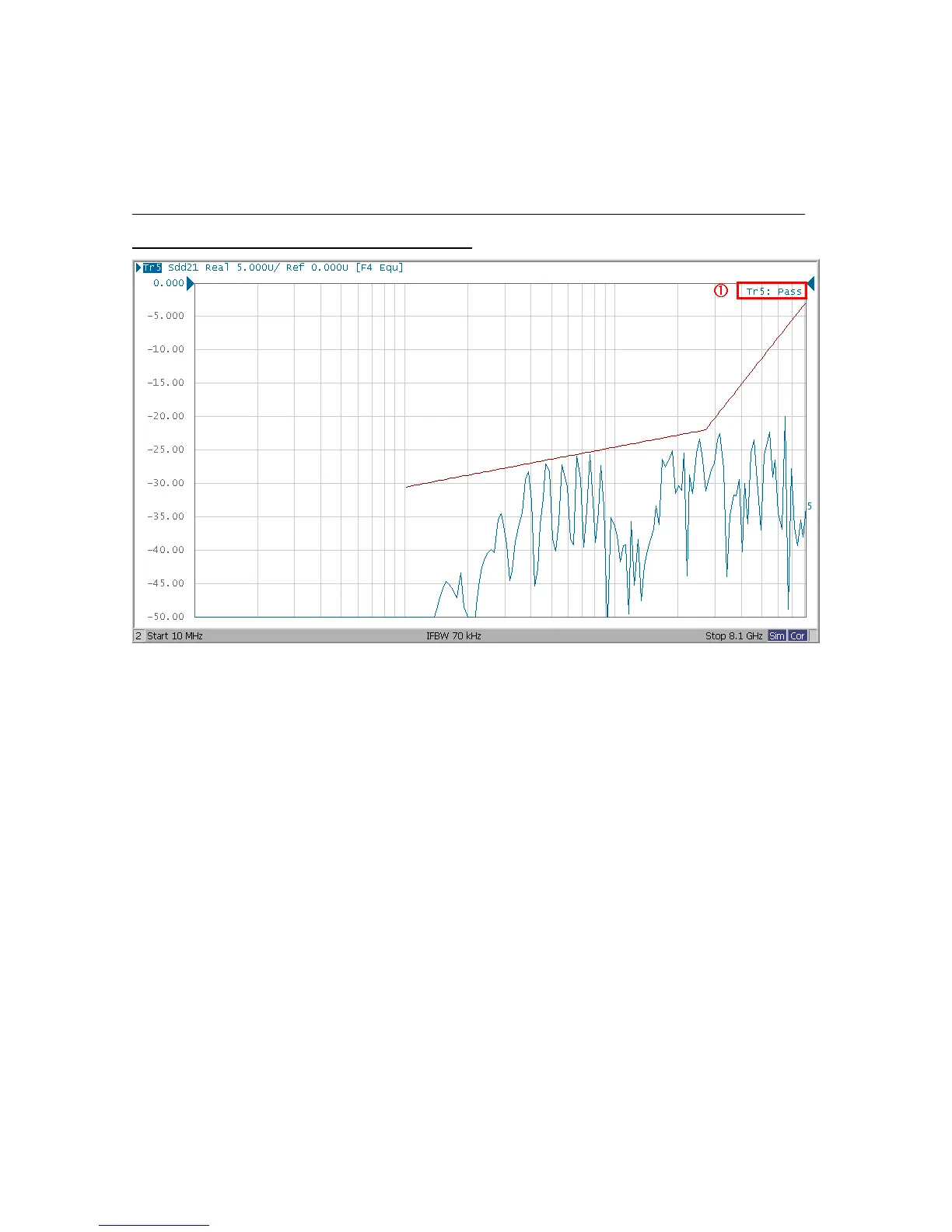

Figure 5-6: Far End Noise Measurement Example.
