Agilent N5181A/82A MXG Signal Generators User’s Guide 123
Basic Digital Operation (Option 651/652/654)
I/Q Modulation

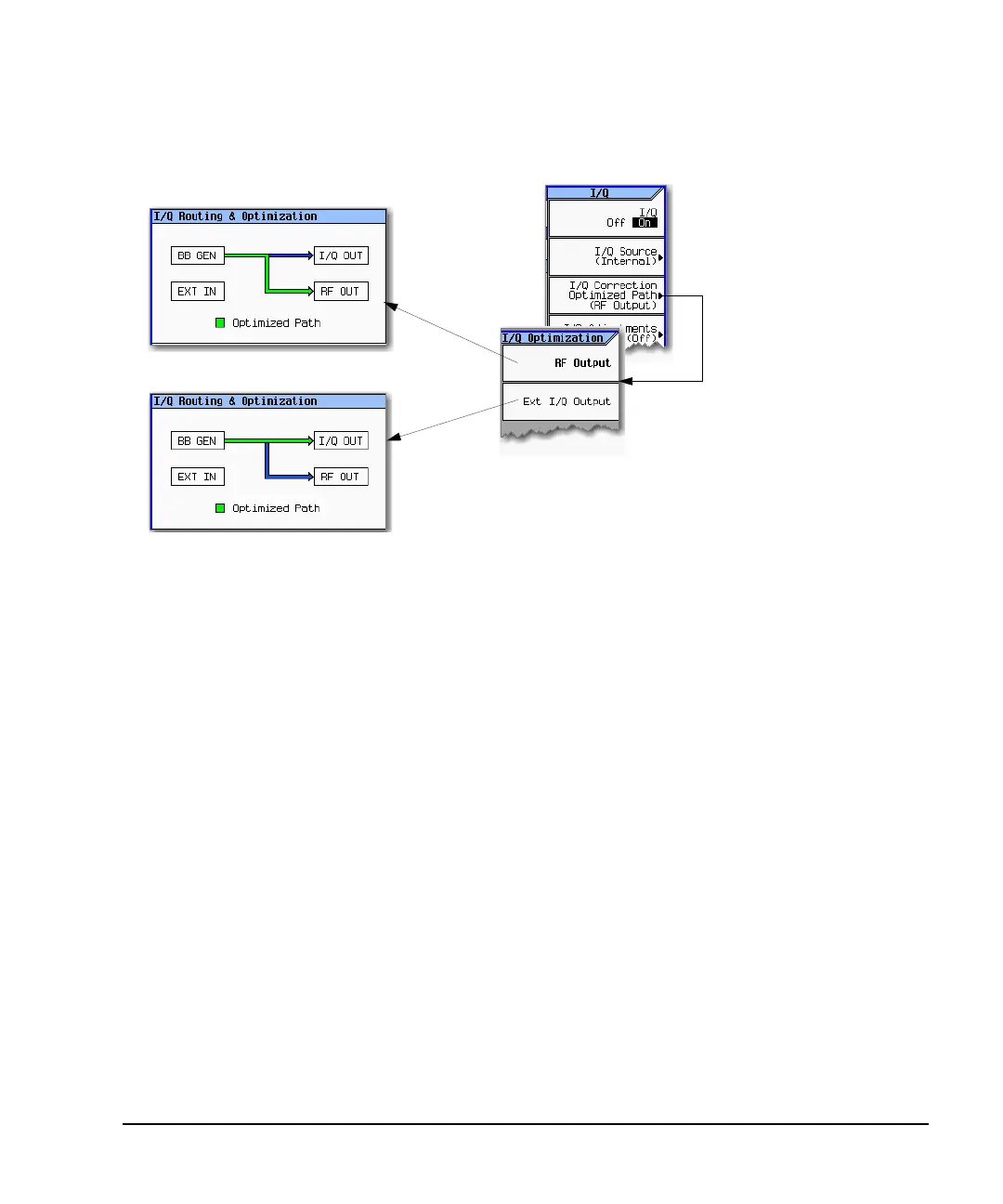

When you optimize a path, the path indicator turns green.
Factory default setting—RF Output path optimized
Rear-panel I/Q path optimized
