Agilent N5181A/82A MXG Signal Generators User’s Guide 87
Basic Digital Operation (Option 651/652/654)
Using Waveform Markers
Accessing Marker Utilities
Mode > Dual ARB > More >
Note: This is the
second Arb menu.

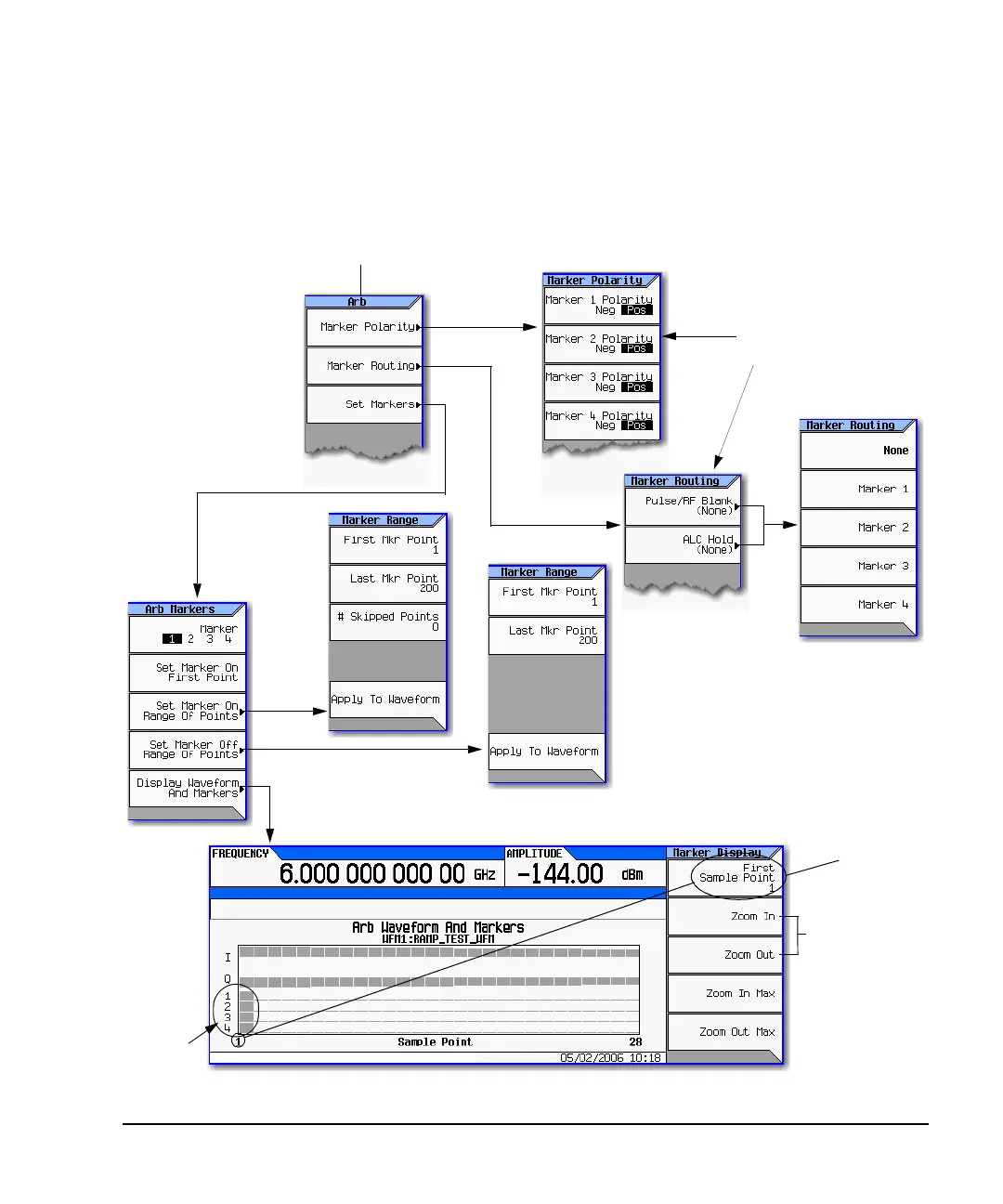

The display below shows the I and Q components of the waveform, and
the marker points set in a factory-supplied segment.
First sample poin
t
shown on displa
y
These softkeys change
the range of waveform
sample points shown
on the marker display.
Each press of the
softkey changes the
sample range by
approximately a factor
of two.
M
arker points
o
n first
s
ample point
For details on each key, use key help
as described on page 23.
The settings in these menus
can be stored to the file
header, see page 78.
