Optimizing Performance
Using User Flatness Correction
Using User Flatness Correction
User flatness correction enables you to adjust the RF output amplitude for up to 1601 sequential
linearly or arbitrarily spaced frequency points to compensate for external losses in cables, switches,
or other devices.
You can create and save individual user flatness correction tables, which enables you to recall
different correction arrays for various test setups or frequency ranges (see page 46).

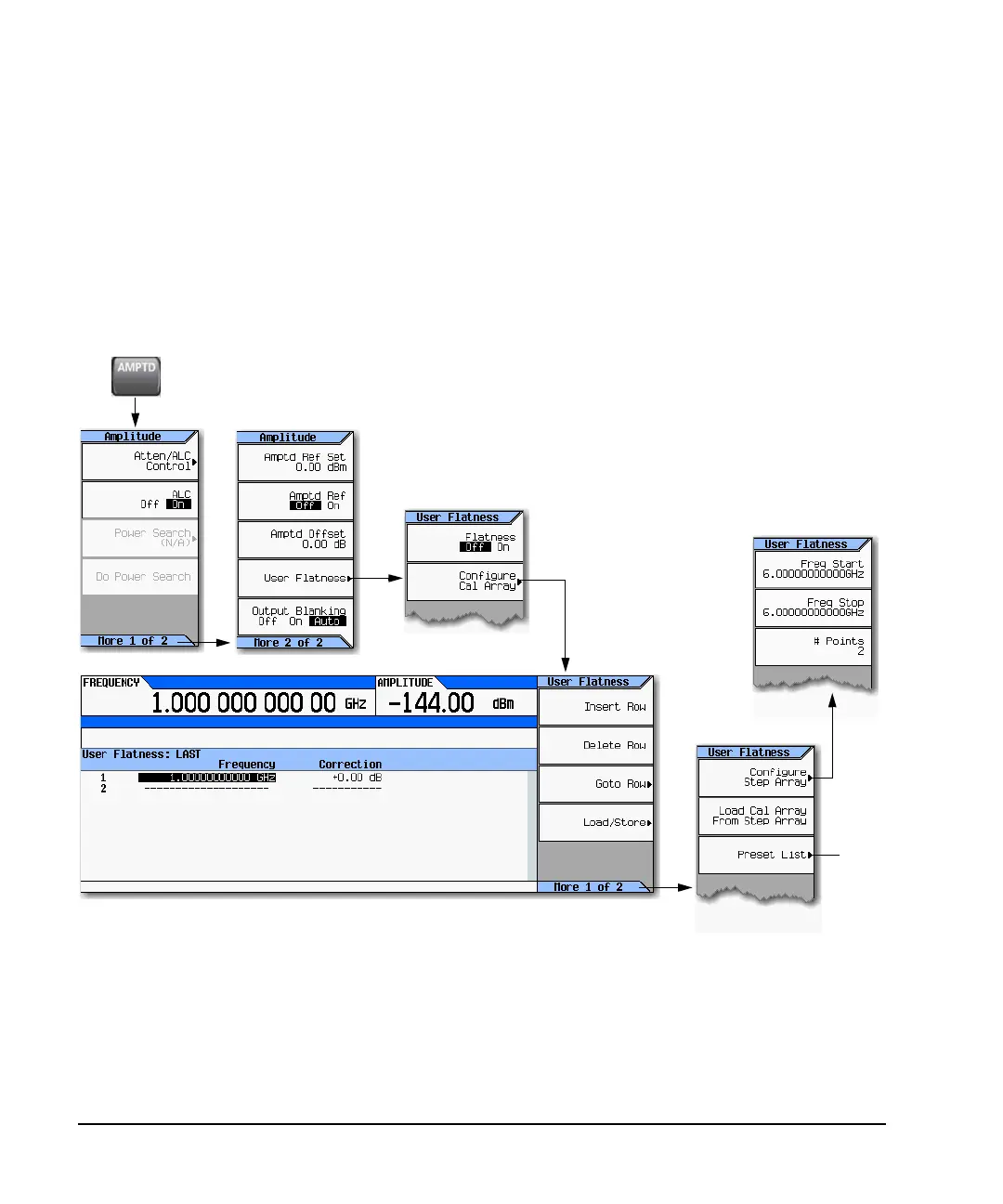

Figure 4-1 User Flatness Correction Softkeys
Basic Procedure
1. Create a user flatness array: Enter the user flatness correction values.
2. Optionally, save the user flatness correction data.
3. Apply user flatness correction to the RF Output.
Confirm
For details on each key, use key help
as described on see page 23.
