AIREDALE EasiCool - Hydronic Data Condenser Waterside Pressure Drop

EasiCool™ Precision Air Conditioning
Technical Data Downow Units WX Type

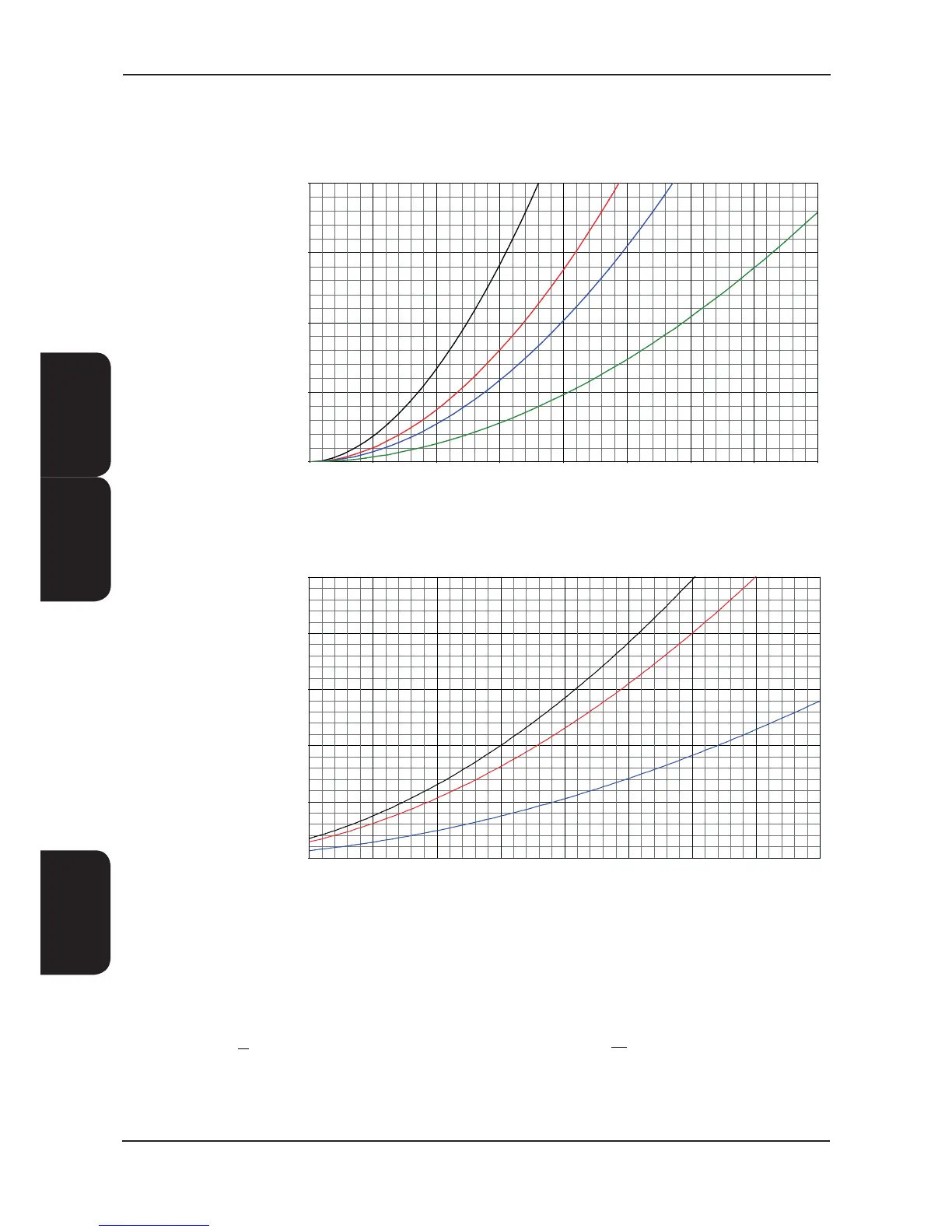

Hydronic Data Condenser Waterside Pressure Drop
DF6 - DF26
DF28 - DF60
116
EasiCool Technical Manual 7525389 V1.8.0_05_2016
TechnicalDF
WX - Type
200
150
100
Waterside Pressure Drop (kPa)
50
6 8 - 13 15
17 - 26
0
0.00 0.25 0.50 0.75 1.00 1.25 1.50 1.75 2.00
Waterflow (l/s)
250
200
150
100
Waterside Pressure Drop (kPa)
50
28 - 35
40
45 - 60
0
1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0
Waterflow (l/s)
(1) Includes coil, 3 port valve and pipework.
(2) To calculate 3 port valve pressure drop
∆P valve =
2






M
Q
where ∆P = Pressure Drop in kPa, Q = Water Flow Rate in l/s and M =






36
Kv
(3) Fluid 100% water, for glycol use, refer to Ethylene Glycol Correction Factors.
