AIREDALE EasiCool - Hydronic Data Low Pressure Hot Water

EasiCool™Precision Air Conditioning
Technical Data Downow Units WX Type

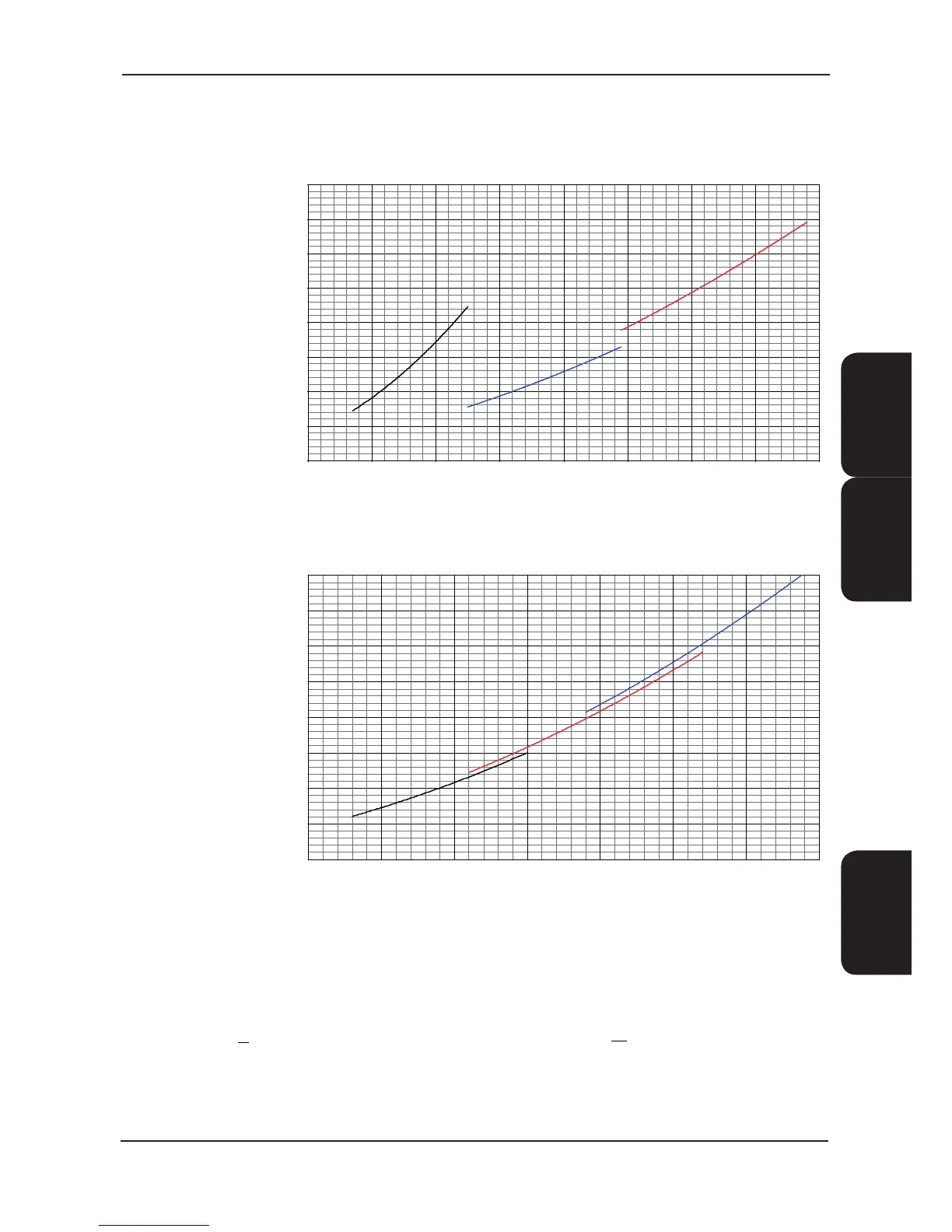

Hydronic Data Low Pressure Hot Water
40
35
30
25
20
15
10
Waterside Pressure Drop (kPa)
5
6 - 10
13 - 17
20 - 26
0
0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50
Waterflow (l/s)
80
70
60
50
40
30
20
Waterside Pressure Drop (kPa)
10
28-31
35-45
50-60
0
0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
Waterflow (l/s)
DF6 - DF26
DF28 - DF60
117
EasiCool Technical Manual 7525389 V1.8.0_05_2016
Technical WX - TypeDF
(1) Includes coil, 3 port valve and pipework.
(2) To calculate 3 port valve pressure drop
∆P valve =
2






M
Q
where ∆P = Pressure Drop in kPa, Q = Water Flow Rate in l/s and M =






36
Kv
(3) Fluid 100% water, for glycol use, refer to Ethylene Glycol Correction Factors.
