AIREDALE EasiCool - Dimensional & Installation Data; Unit Dimensions, Clearances, and Weights

EasiCool™ Precision Air Conditioning
W x D x H A B C D E F G
DF6 X/WX mm 670 x 670 x 1940 640 270 216 238 N/A 50 268
DF8 X/WX mm 670 x 670 x 1940 640 270 183 304 N/A 50 268
DF10 X/WX mm 670 x 670 x 1940 640 270 167 337 N/A 50 295
DF13 X/WX mm 990 x 670 x 1940 960 590 326 337 N/A 50 295
DF15 X/WX mm 990 x 670 x 1940 960 590 294 401 N/A 50 347
DF17 X/WX mm 990 x 670 x 1940 960 590 294 401 N/A 50 347
DF20 X2/WX2 mm 1310 x 670 x 1940 1280 455 166 337 303 50 295
DF22 X2/WX2 mm 1310 x 670 x 1940 1280 455 166 337 303 50 295
DF26 X2/WX2 mm 1310x 670 x 1940 1280 455 166 337 303 50 295
(1) Standard forward airow direction.
(2) Optional reverse airow direction.
(3) Optional gland plate and panel for side services access via the right side of unit. For services details contact Airedale.
(4) Base mains cable entry.
(5) Standard base gland plate entry for refrigeration/water services. For services details contact Airedale.
(6) Shaded area denotes fan discharge aperture. Optional EC fan motor discharge aperture provided with protective mesh, not shown.
(7) M6 xing hole positions.
(8) Units tted with optional EC fan motors require a oorstand.
1
2
6 - 10
13 - 17
20 - 26
3
670
A
640
270
15
200
B
15
200
D
C
F
G
A
B
D
C
A
5
B
B
D
C
D
E
4
6
7
1940
670
990
1310
Dimensional & Installation Data
Dimensions

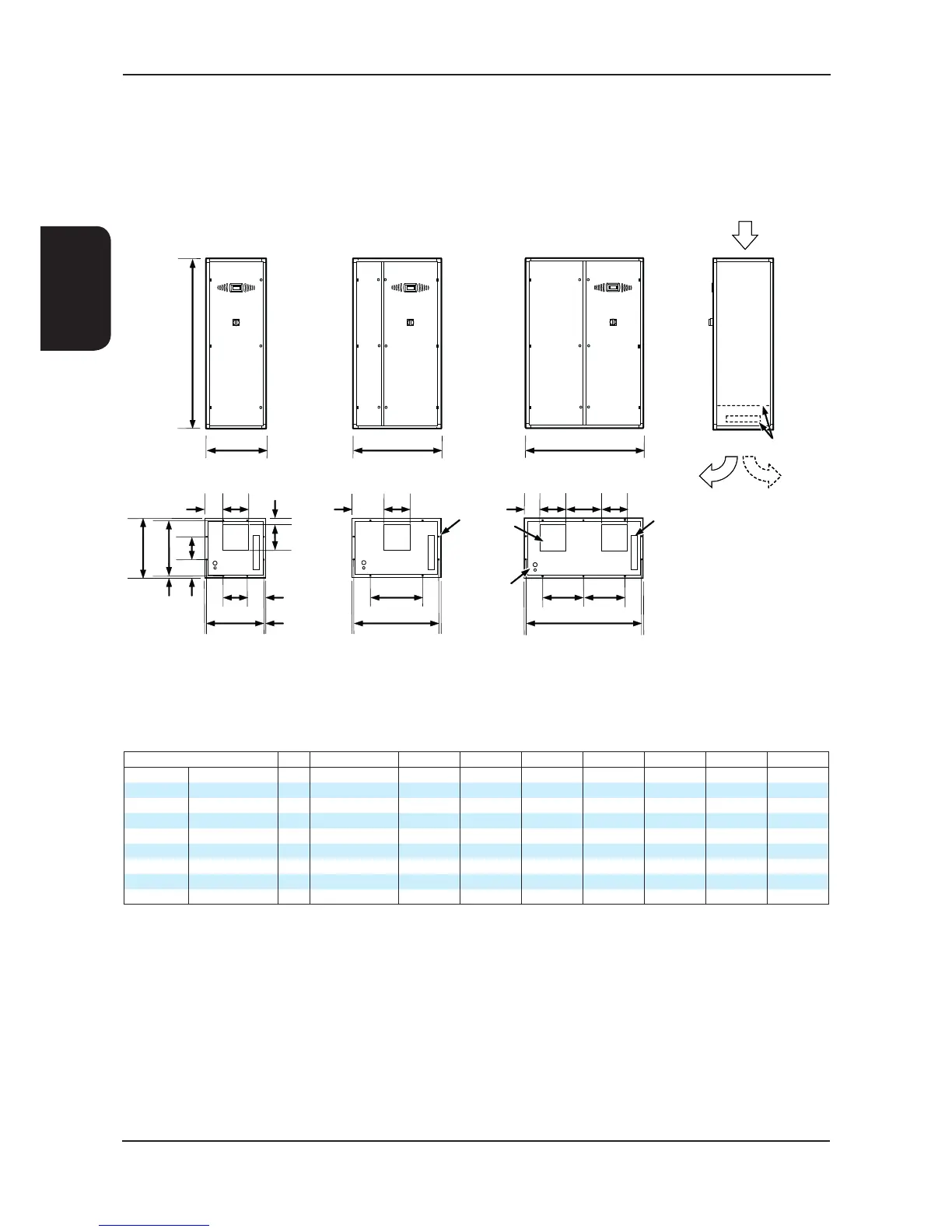

DF6 - DF26 - Standard Airow Conguration (mm) with Standard EC Fan Motors
32
EasiCool Technical Manual 7525389 V1.8.0_05_2016
Installation
