EasiCool™Precision Air Conditioning

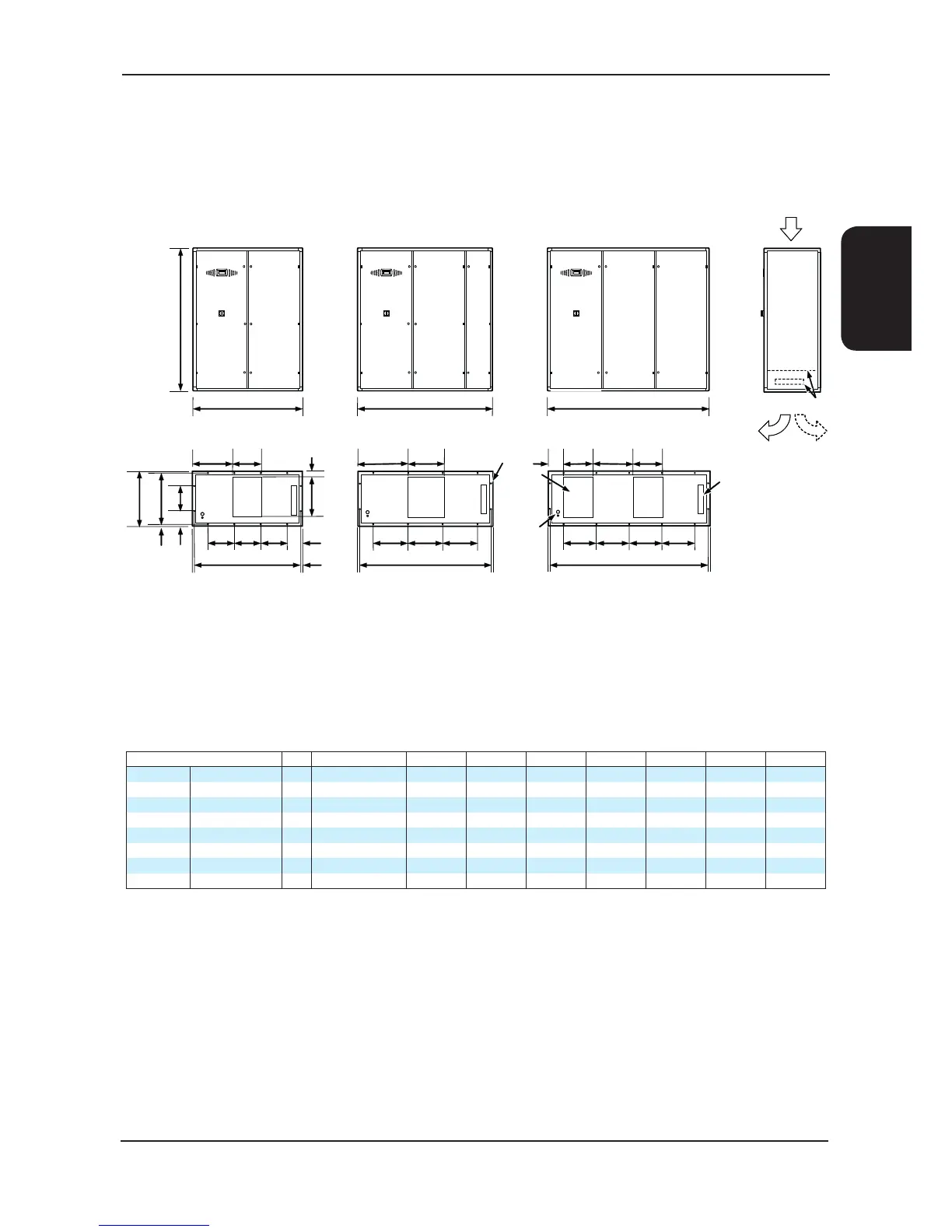

Dimensional & Installation Data
Dimensions
DF28 - DF60 - Standard Airow Conguration (mm) with Standard AC Fan Motors
1
2
1940
1460
28 - 31
1835
35 - 45
2170
50 - 60
3
4
20
210
750
710
330
A
B
B
C
20
210
F
G
B
D
A
B
B
C
B
E
A
B
B
D
B
B
D
C
D
6
7
5
W x D x H A B C
(8)
D
(8)
E F
(9)
G
(8)
DF28 X/WX mm 1460 x 750 x 1940 1420 347 540 379 N/A 91 (113) 546
DF31 X/WX mm 1460 x 750 x 1940 1420 347 540 379 N/A 91 (113) 546
DF35 X/WX mm 1835 x 750 x 1940 1795 472 679 477 N/A 91 (113) 546
DF40 X/WX mm 1835 x 750 x 1940 1795 472 679 477 N/A 91 (113) 546
DF45 X/WX mm 1835 x 750 x 1940 1795 472 679 477 N/A 91 (113) 546
DF50 X2/WX2 mm 2170 x 750 x 1940 2130 438 206 401 543 76 (257) 345
DF55 X2/WX2 mm 2170 x 750 x 1940 2130 438 206 401 543 76 (257) 345
DF60 X2/WX2 mm 2170 x 750 x 1940 2130 438 206 401 543 76 (257) 345
(1) Standard forward airow direction.
(2) Optional reverse airow direction.
(3) Optional gland plate and panel for side services access via the right side of unit. For services details contact Airedale.
(4) Base mains cable entry.
(5) Standard base gland plate entry for refrigeration/water services. For services details contact Airedale.
(6) Shaded area denotes fan discharge aperture. Optional EC fan motor discharge aperture provided with protective mesh, not shown.
(7) M6 xing hole positions.
(8) Figures in brackets represent position of fan discharge aperture when larger AC fan motor option is tted.
(9) Figures in brackets represent optional reverse air discharge conguration when tted with standard AC fan motors.
(10) Units tted with optional EC fan motors require a oorstand.
33
EasiCool Technical Manual 7525389 V1.8.0_05_2016
Installation
