AIREDALE EasiCool - Refrigeration Components

EasiCool™ Precision Air Conditioning
System Conguration
Downow Upow
X Type WX Type X Type WX Type
Refrigeration
Efcient Fixed Speed Scroll Compressor
● ● ● ●
Evaporator Coil
● ● ● ●
Refrigeration Sight Glass
● ● ● ●
Oil Separator
○ ○ ○ ○
Liquid Line Solenoid Valve
○ ○ ○ ○
Refrigerant Pump down
○ ○ ○ ○
Hot Gas Reheat
○ – ○ –
Suction Throttle Valve
○ ○ ○ ○
BPHE Condenser
○ ● ○ ●
Thermostatic Expansion Valves (TEV)
● ● ● ●
Electronic expansion Valves (EEV)
○ ○ ○ ○
●
Standard Feature ○ Optional Feature – Not Available
Evaporator
Large surface area coil(s) ideally positioned to optimise airow and heat transfer, manufactured from refrigeration quality
copper tube with mechanically bonded aluminium ns.
The copper tube is internally ried for improved heat transfer.
Fins are coated with a non-stick acrylic lm (hydrophilic) which provides additional corrosion protection and efcient
surface water removal for improved performance.
The cooling coil is mounted over a full width stainless steel condensate tray.
Factory pressure tested to 45 Barg.
X Models Only Sweat copper pipe for brazed connection as standard.
Refrigeration Components
10
Introduction
EasiCool Technical Manual 7525389 V1.8.0_05_2016

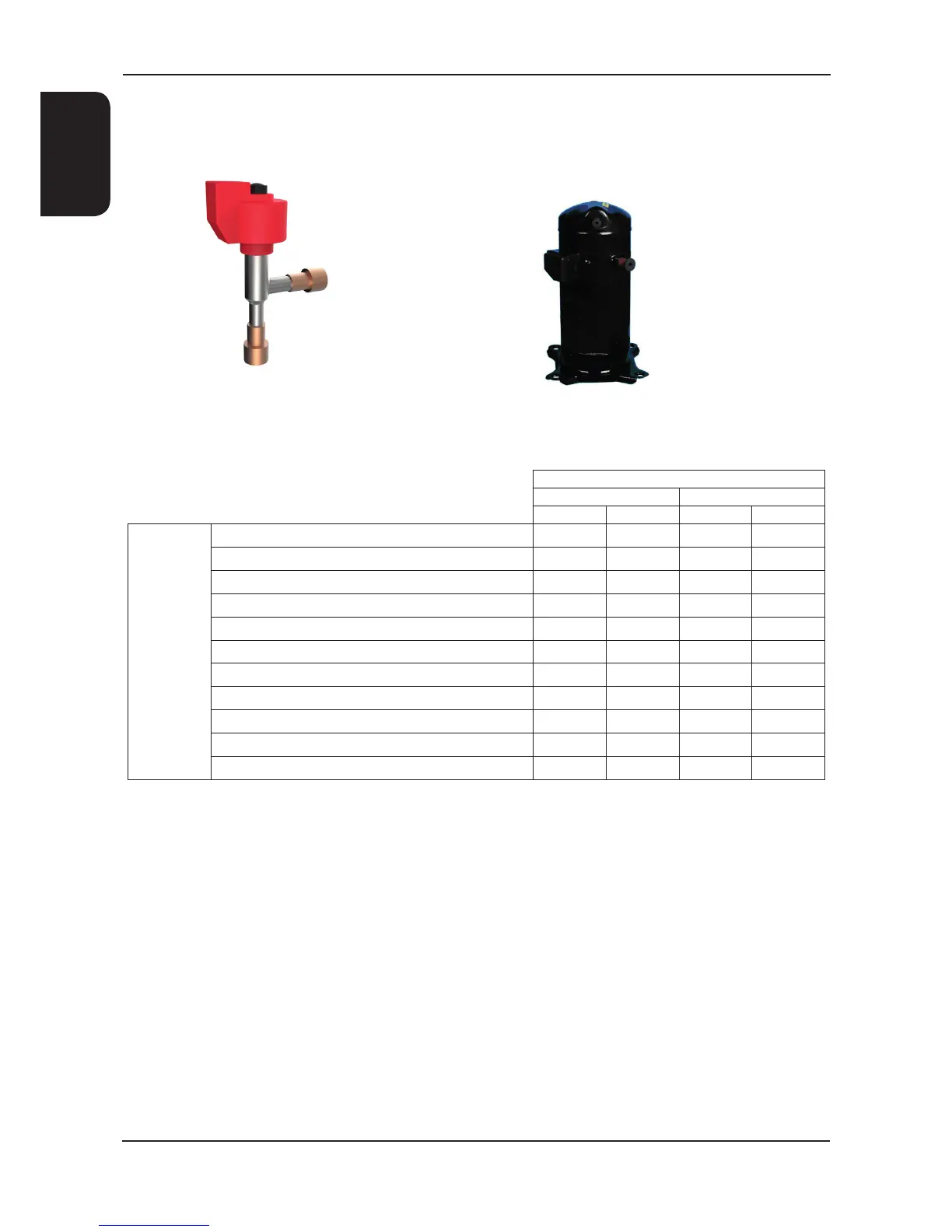

Electronic Expansion Valve Scroll Compressor
