EasiCool™ Precision Air Conditioning

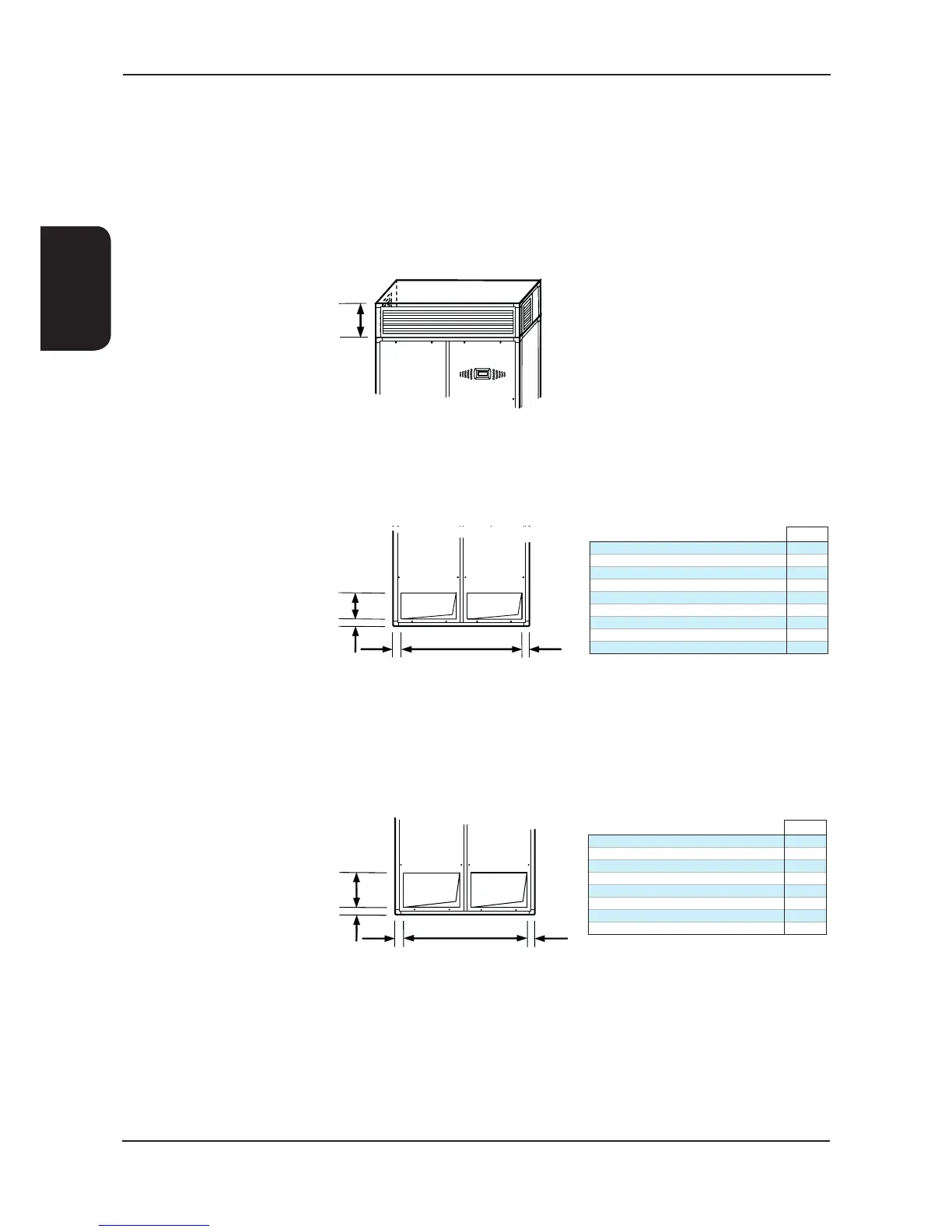

Dimensional & Installation Data
Upow
370
370
A
65
325
65
65
H
65
325
65
65
A
75
435
75
75
Options
Discharge Air Plenum
Rear Return Air Aperture
(mm)
V6 - V26
V28 - V60
1 Discharge air plenum shows as 3 way, also available is front discharge only
1 25 mm ange required to return air duct work, supplied by others.
2 M6 xings holes required.
A
V6 X/WX mm 540
V8 X/WX mm 540
V10 X/WX mm 540
V13 X/WX mm 860
V15 X/WX mm 860
V17 X/WX mm 860
V20 X2/WX2 mm 1180
V22 X2/WX2 mm 1180
V26 X2/WX2 mm 1180
A
V28 X/X2/WX/WX2 mm 1310
V31 X/X2/WX/WX2 mm 1310
V35 X/X2/WX/WX2 mm 1685
V40 X/X2/WX/WX2 mm 1685
V45 X2/WX2 mm 1685
V50 X2/WX2 mm 3020
V55 X2/WX2 mm 3020
V60 X2/WX2 mm 3020
36
EasiCool Technical Manual 7525389 V1.8.0_05_2016
