Page 21
[TH]

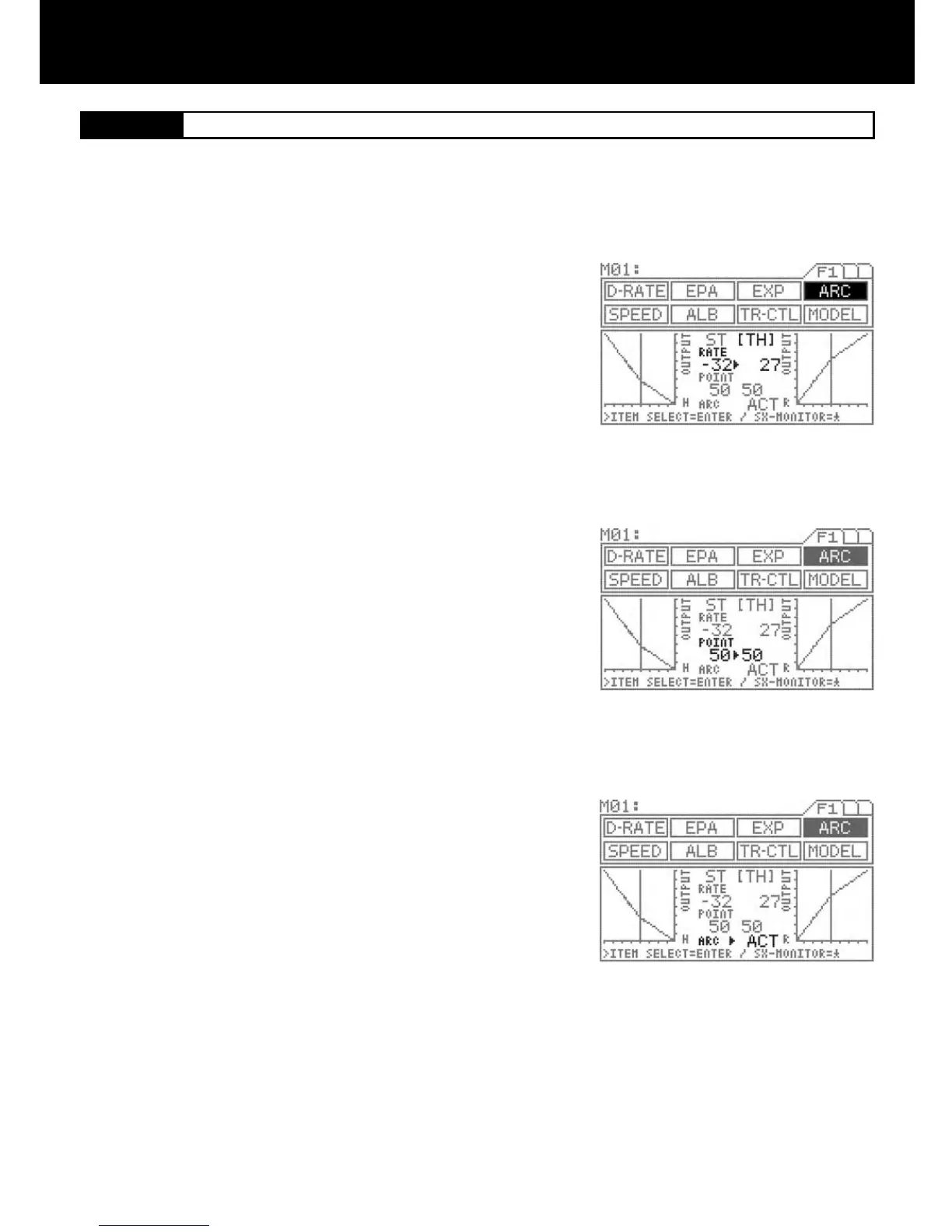

Throttle Adjustable Rate Control
Press the function select key and move the cursor to [TH] in ARC.
RATE SETTING
Be sure that the arrow appears below RATE.
To adjust the high side throttle setting, pull the throttle trigger all the way to
change the arrow direction to the throttle rate.
To adjust the brake side throttle setting, push the throttle trigger all the way to
the brake side, and watch the arrow direction change to the brake side.
Set the RATE by pressing the Inc.+ or Dec.- key.
Setting range -100 to 100 (Default setting 0)
POINT SETTING
Move the arrow to below POINT with the ENTER key.
To adjust the high side throttle setting, pull the throttle trigger all the way to
the high side, this will change the arrow to the throttle side.
To adjust the brake side throttle setting, push the throttle trigger all the way to
the brake side, and the arrow will change to the brake side.
Set the POINT value by pressing the Inc.+ or Dec.- key.
Setting range 5 to 95 (Default setting 50)
INH/ACT setting for ARC
To activate the ARC function, select ACT, and to deactivate, select INH.
Using the ENTER key, move > to the right side of ARC.
Select INH or ACT by pressing the Inc.+ or Dec.- key.
IMPORTANT
About the INH/ACT setting of ARC
The INH/ACT setting of ARC in the menu can be also switch to any desired key switch by using the key assign function. By
using this function, Activation ,of the ARC “ON” or “OFF” can be selected during the operation.
Throttle characteristic can be variably adjusted from mild through linear or to quick. In general, reduce the numeric value on
slippery track or with models that have powerful response, and increase it on high-grip track or with power units that have
lower torque. The high side and brake side can be set independently.
1.
2.
3.
4.
