AIRTRONICS M11 - Receiver Connection and Installation; Receiver Connector Locations; Receiver Installation Precautions

Page 52
CAUTION
Use only genuine Airtronics FM Crystals.
Using of crystals other than those specied may result in frequency errors and possible runaway operation.
There is a danger of runaway operation, if connectors shake loose while driving. Make sure that receiver, servo, and-
switch connectors are securely tted.
A danger of runaway operation exists with shorter antennas, due to reduced receptivity. Do not cut any length of antenna
wire.
The receiver susceptible to vibration, shock and moisture. Take appropriate measures to protect against vibration and
water. Failure to take appropriate measures could result in runaway operation or to damage to the receiver.
Keep the receiver antenna away from motors, battery, and ESC and make sure that antenna stick out from the model
vehicle vertically.
When installing the receiver, don’t let it come in contact with any carbon or metal chassis.
Contact between metal parts mounted on a model can result in electrical noise, adversely affecting receiver performance
and possibly resulting in runaway operation or damaged to your model vehicle.
With electrically-powered models, be sure to t the motor with a noise suppression capacitor. Without a noise suppression
capacitor, excessive noise generation can cause runaway operation. And/or result of damage to the model vehicle.
Use rubber anti-vibration absorbers with servos. Direct transmission of engine vibration to servos can cause servo failier
and possibly result in runaway operation with damaging your model vehicle.
The manufacturer disclaims all responsibility for damages resulting from use of components other than genuine
AIRTRONICS/SANWA components.
The M11 can be switched between 2ch and 4ch operation.
Note that 4ch operation is not possible when using the 92836 or 92837 receivers were being used.
Receiver Connection and Installation

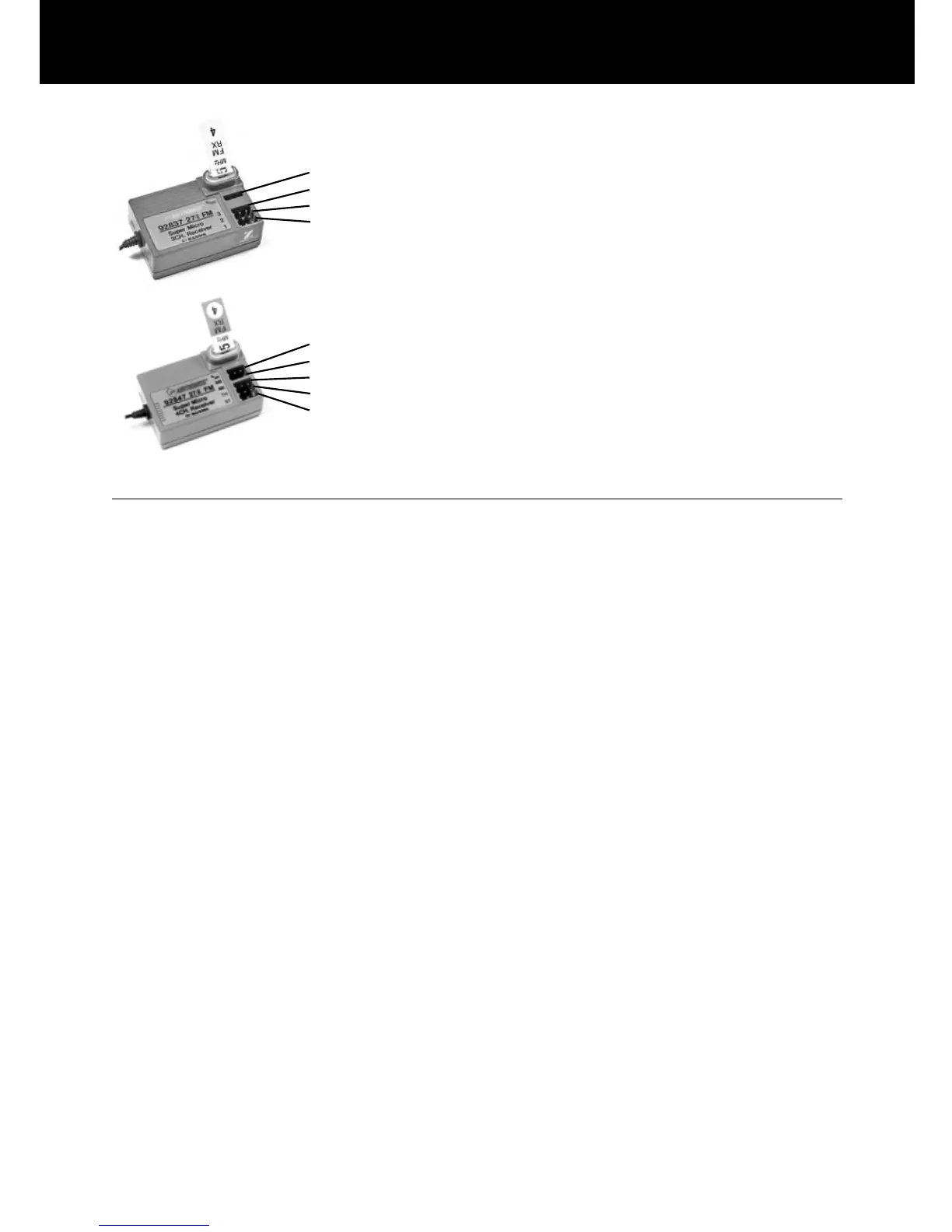

Connector Locations on the receiver
B/DSC
AUX2
AUX1
TH
ST
Battery / Direct Servo Controller
Channel 4
Channel 3
Channel 2 (Throttle)
Channel 1 (Steering)
B/DSC
AUX1
TH
ST
Battery / Direct Servo Controller
Channel 3
Channel 2 (Throttle)
Channel 1 (Steering)
92837Z FM 3 Ch (27 MHz)
92827Z FM 3 Ch (75 MHz)
92847Z FM 3 Ch (27 MHz)
92846Z FM 3 Ch (75 MHz)
(3 Channel Receiver)
(4 Channel Receiver)
