HDR Image Analyzer v1.0r3 13 www.aja.com

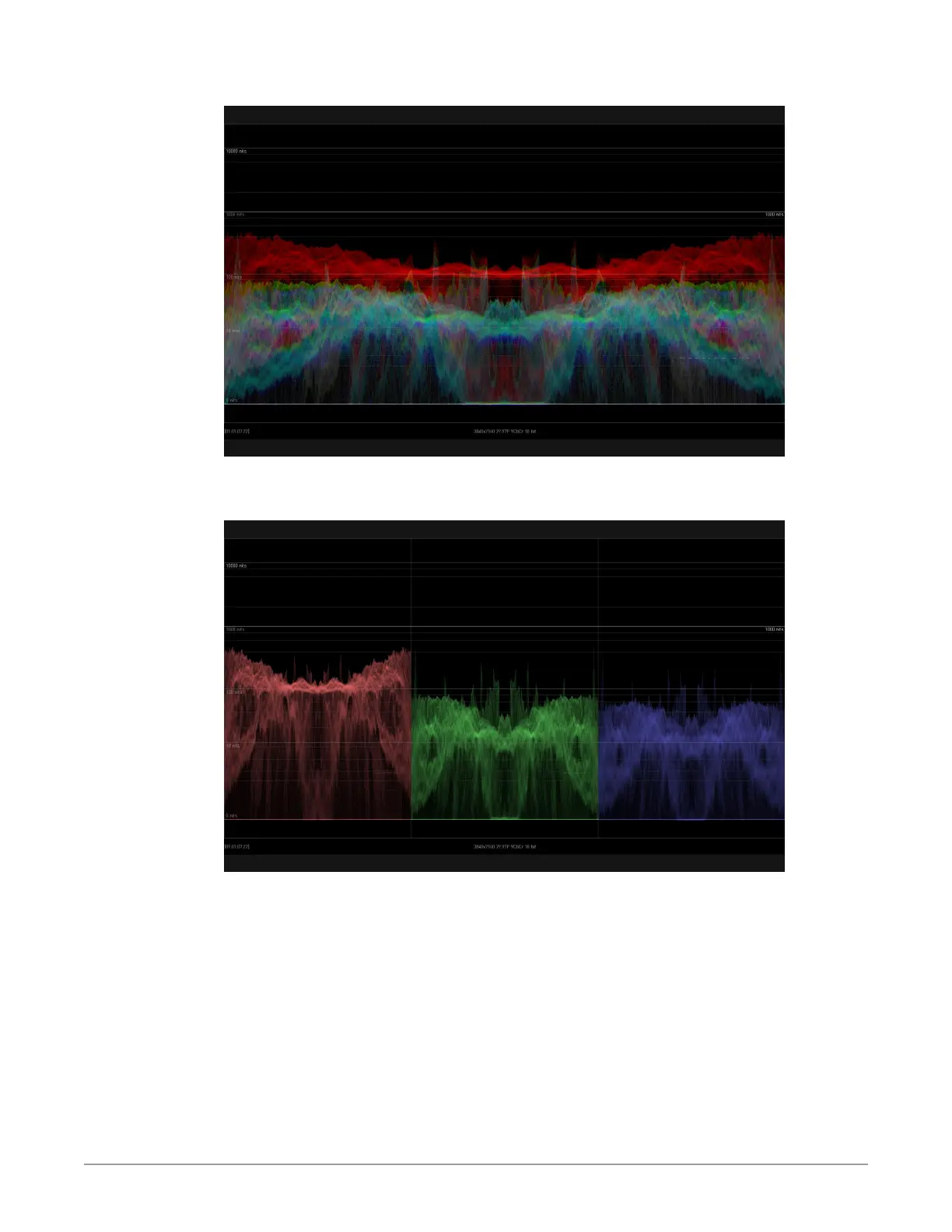

Figure 8. Waveform Color Mode
Waveform showing the RGB channels superposed in one graph.
Figure 9. Waveform RGB Color Mode
Waveform showing the RGB channels in a split view, where each graph is shown
in its respective color.
