HDR Image Analyzer v1.0r3 15 www.aja.com

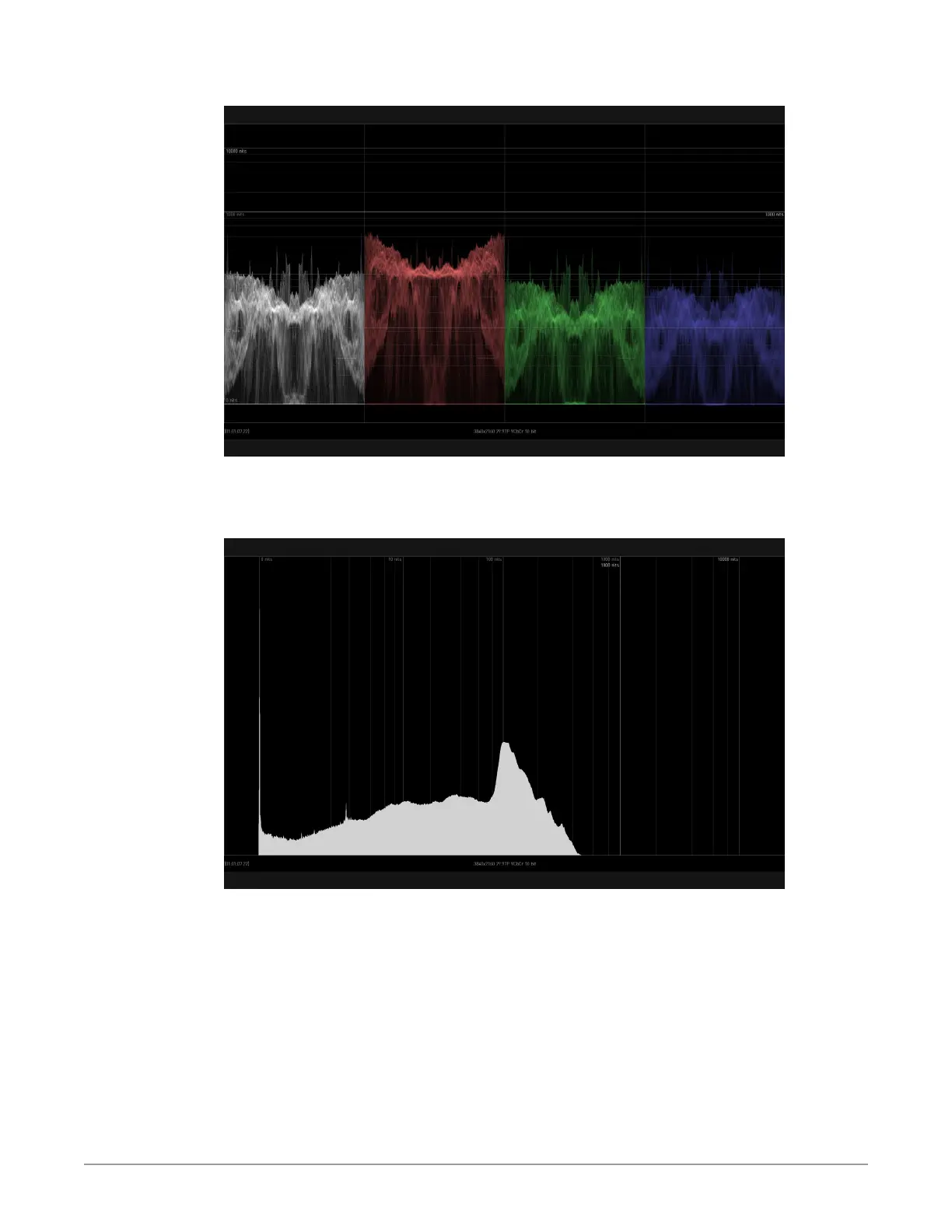

Figure 12. Waveform YRGB Mode

Waveform showing luminance and RGB channels in a split view, where each color

channel graph is shown in its respective color.

Figure 13. Histogram Luminance Mode

Histogram Luminance is showing the frequency of luminance values throughout

the current image content. Left-hand part is for darker, right-hand part is for

lighter image content.
