Hard Disk Drive
1. From the bottom of the unit, remove the screws for the bottom cover and open the bottom.

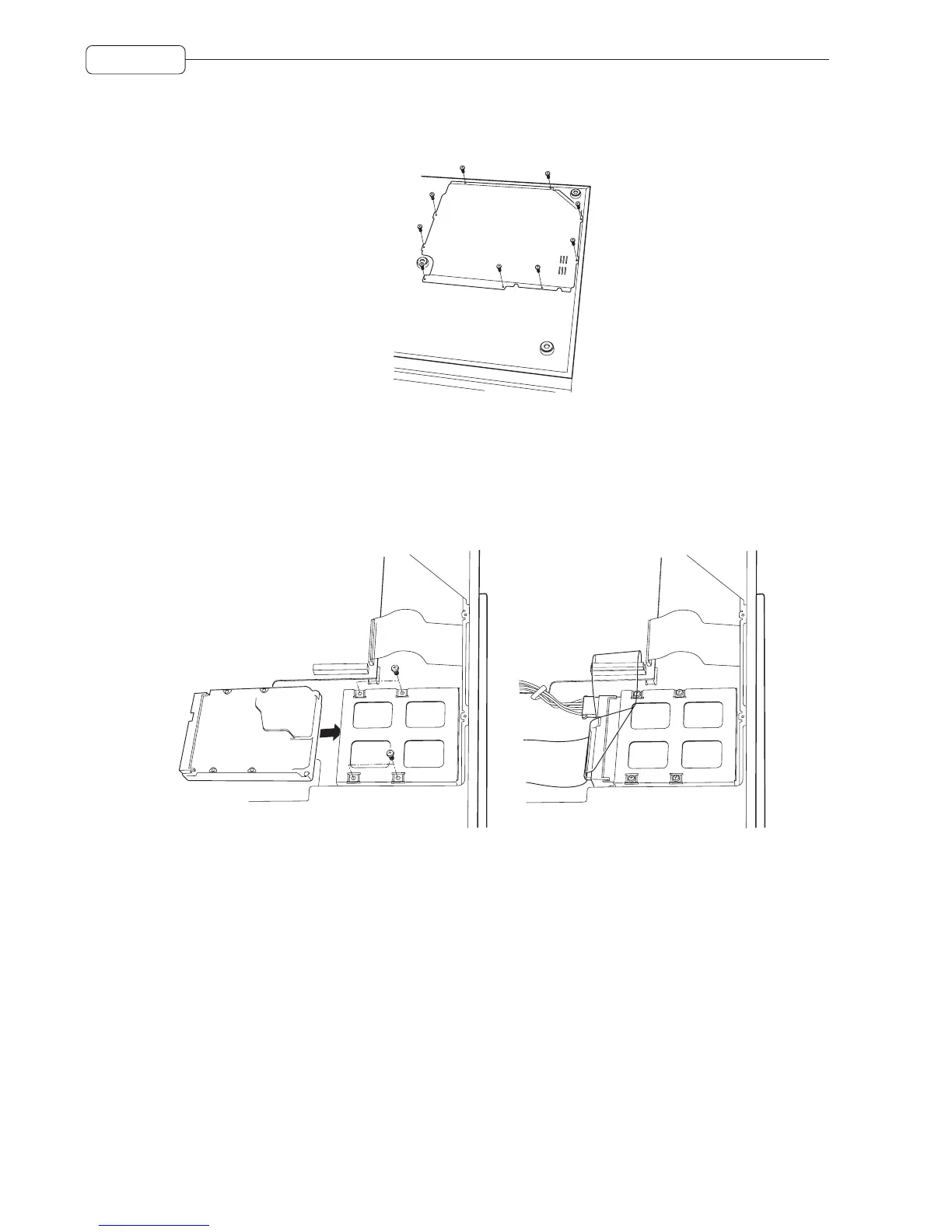

2. Referring to the illustration, slide the Hard Disk Drive in the disk holder and mount it with the screws inside the
Internal Disk Mounting Kit. There are inch-threaded screws and millimeter-threaded screws inside. Be sure to
use the appropriate type.
3. Connect the 4-pin Power Cable and 40-pin Disk Drive Cable as illustrated.
4. Place the bottom cover back and tighten all screws.
