Akai DPS24 User Manual

36

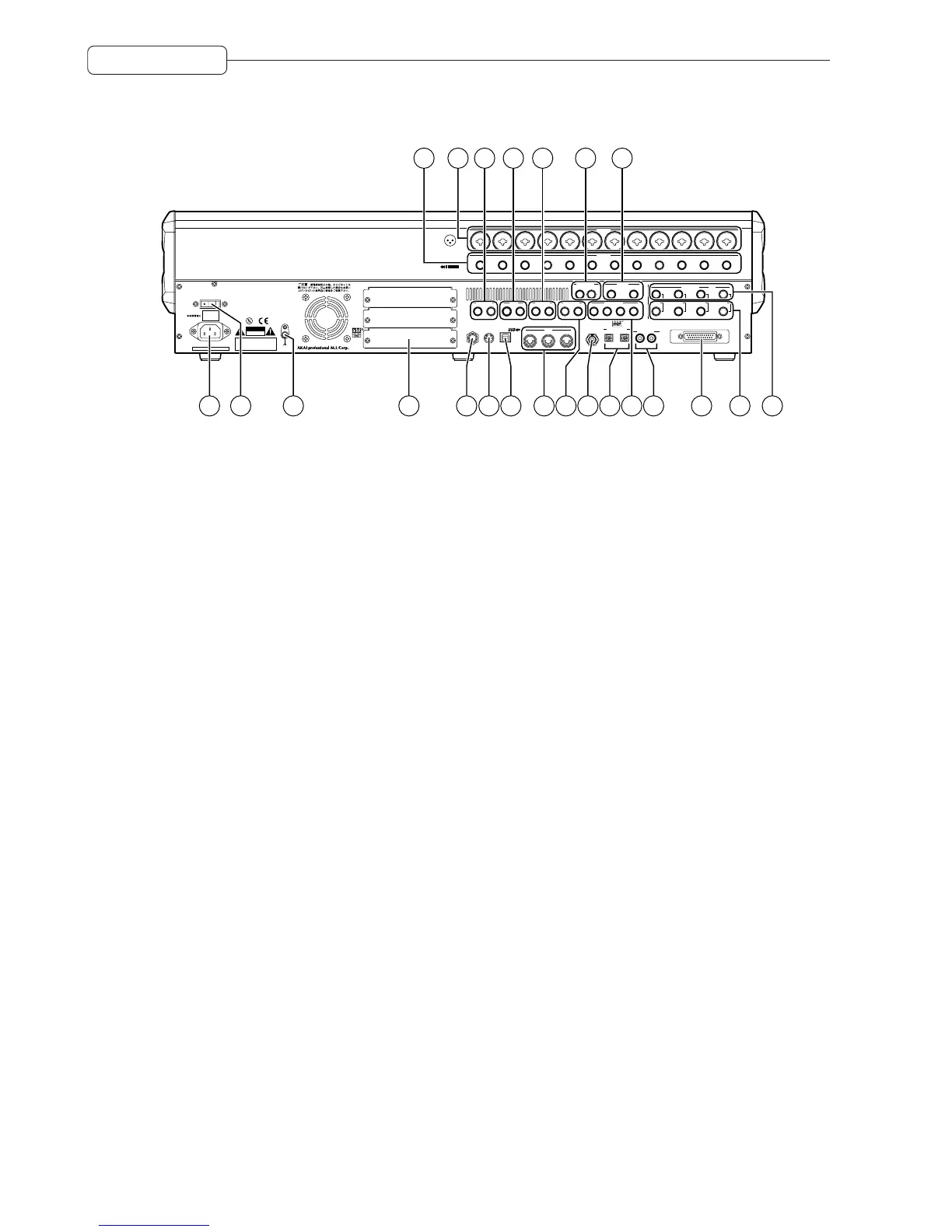

REAR PANNEL
REAR PANEL
AUX SENDS NEARFIELD
1 2 3 4 L R
MAIN
L R
STEREO OUT
L R
STUDIO OUT
L R
AUX IN
2-TRACK IN
ADC IN
INSERT
DIRECT OUT
INSERT INSERT INSERT
1 2 3 4
SCSI
DIGITAL I/O
MP LIGHTPIPE I/O
OUT IN
OUT IN
WORDCLOCK
MIDI
THRU OUT IN
FOOTSWITCH
ASCII
KEYBOARD
L R L R
1234
INPUTS A
56789101112
INPUTS B
1234
56789101112
123
12
3
1: GROUND
2: HOT
3: COLD
THIS CLASS
(
B
)
DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES
-
003.
CET APPAREIL NUMERIQUE DE LA CL ASSE
(
B
)
EST CONFORME A LA NORME NMB
-
003 DU CANADA.
´
`
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS :
(
1
)
THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(
2
)
THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERAT ION.
POWER
ON OFF
100 - 240V
50/ 60Hz
110W
90W
AC100 - 240V
50/ 60Hz
110W
AKAI PRO. M.I
WARNING :
SHOCK HAZARD
-
DO NOT OPEN!
AVIS :
RISQUE DE CHOC ELECTRIQUE
-
NE PAS OUVRIR!
VORSICHT :
BERUHRUNGSGEFAHR
-
NICHT OFFNEN!
....
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK ,
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE
.
WARNING :
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
SIGNAL
GND
MADE IN CHINA
MODEL NUMBER DPS24
OPTION
1
OPTION
2
OPTION
3
1 19
345
2
687917101113 1220212223
18161514
The rear panel has a comprehensive selection of connectors to interface the DPS24 with a wide range of analogue
and digital equipment. These are:
1 INPUTS - BANK A
Across the top of the rear panel are the two banks of analogue inputs. The top row (Bank A) are balanced inputs
on XLR/TRS jack combos. These can accommodate XLR connectors or TRS (tip: Hot, ring: Cold, sleeve: Gnd)
1/4” jack plugs.
2 INPUTS - BANK B
The second row of inputs (Bank B) are TRS jacks that can accommodate balanced inputs.
Banks A and B are switched from the front using the switches across the top of the panel
3 CHANNEL INSERT SENDS/DIRECT OUT
4 CHANNEL INSERT RETURNS/ADC INPUTS
Inputs 1-4 also feature balanced insert points allowing you to patch in professional external processors such as
noise gates, compressors, etc. Although each channel of the DPS24 has a compressor/gate, you may want to use
external valve units or other devices.
The channel insert sends (3) can also be used as balanced direct outputs and the channel insert returns (4) can also
be used to accept external pre-amps or 19” ‘channel strips’ therefore bypassing the internal pre-amps on the
DPS24 for these channels.
5 SCSI CONNECTOR OPTION
The optional SCSI connector may be installed here allowing you to connect external SCSI drives to the DPS24.
6 DIGITAL I/O
These RCA phono connectors offer SPDIF digital audio input and output. The input is freely assignable to chan-
nels within the DPS24 and the output can accept a wide variety of internal audio sources (the default is the master
stereo L/R output).
7 MULTI-PURPOSE LIGHT PIPE I/O
These optical connectors are configured to carry 8-channel ADAT™ digital input/output.
8 AUXILLIARY SENDS 1-4
AUX SENDS 1-4 default to being output here for use with external effects processors. However, it is possible
to patch other audio sources to appear at these outputs if you wish.
9 WORDCLOCK I/O
When wordclock is selected as the sync source, this BNC is set to receive wordclock. At all other times, this BNC
is set to generate wordclock.
J MIDI IN/OUT/THRU
The MIDI IN connection can accept MIDI Time Code and MIDI clock for synchronising to external equipment
such as sequencers.
