38

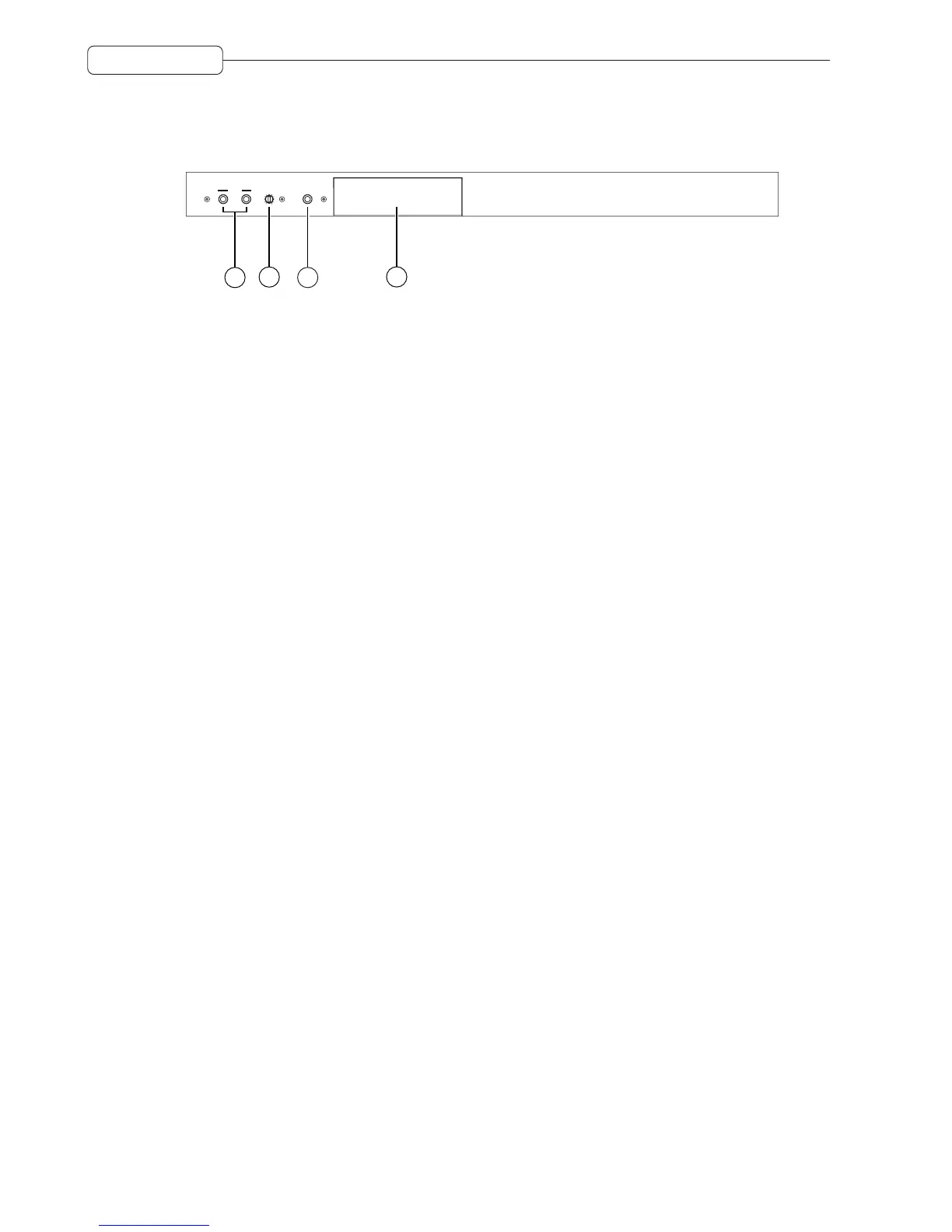

FRONT PANEL
FRONT PANEL
1 CD-RW/CD-R DRIVE
An optional IDE CD-RW or CD-R drive may be installed here.
2 HI-Z GUITAR INPUT
An electric guitar (or bass guitar) may be DI’d into this high impedance input. Note that when this input is used,
it uses Input Channel 12 and Inputs 12A and 12B on the rear panel are overridden and cannot be used.
3 HEADPHONE LEVEL
This allows control of the level of the signal appearing at the headphone outputs.
4 HEADPHONE OUTPUT
Two headphone output connectors are provided. Both are identical (i.e. wired in parallel) and carry a duplicate
of the MONOTOR output.
PHONES
MAX
MIN
LEVEL
HI-Z
1
2
3
4
