Akuvox R26 Series - Unlock Via Exit Button

R26/R23 Series
Admin Guide
24
UserName & Password: Users can setup the username and
password for HTTP unlock.
URL format:
http://IP_address/fcgi/do?action=OpenDoor&UserName=&Pas
sword=&DoorNum=1
3.6.4. Unlock via Exit Button
Go to Intercom - Input to configure input settings.
R26/R23X supports two input triggers Input A/B (DOOR A/B).
Input Service: To enable or disable input trigger service.
Trigger Option: To choose open circuit trigger or closed circuit
trigger. Low means that connection between door terminal and GND
is closed, while high means the connection is opened.
Action to execute: To choose which action to execute after the
input terminal is triggered.
Http URL: To configure URL, If HTTP action is chosen.

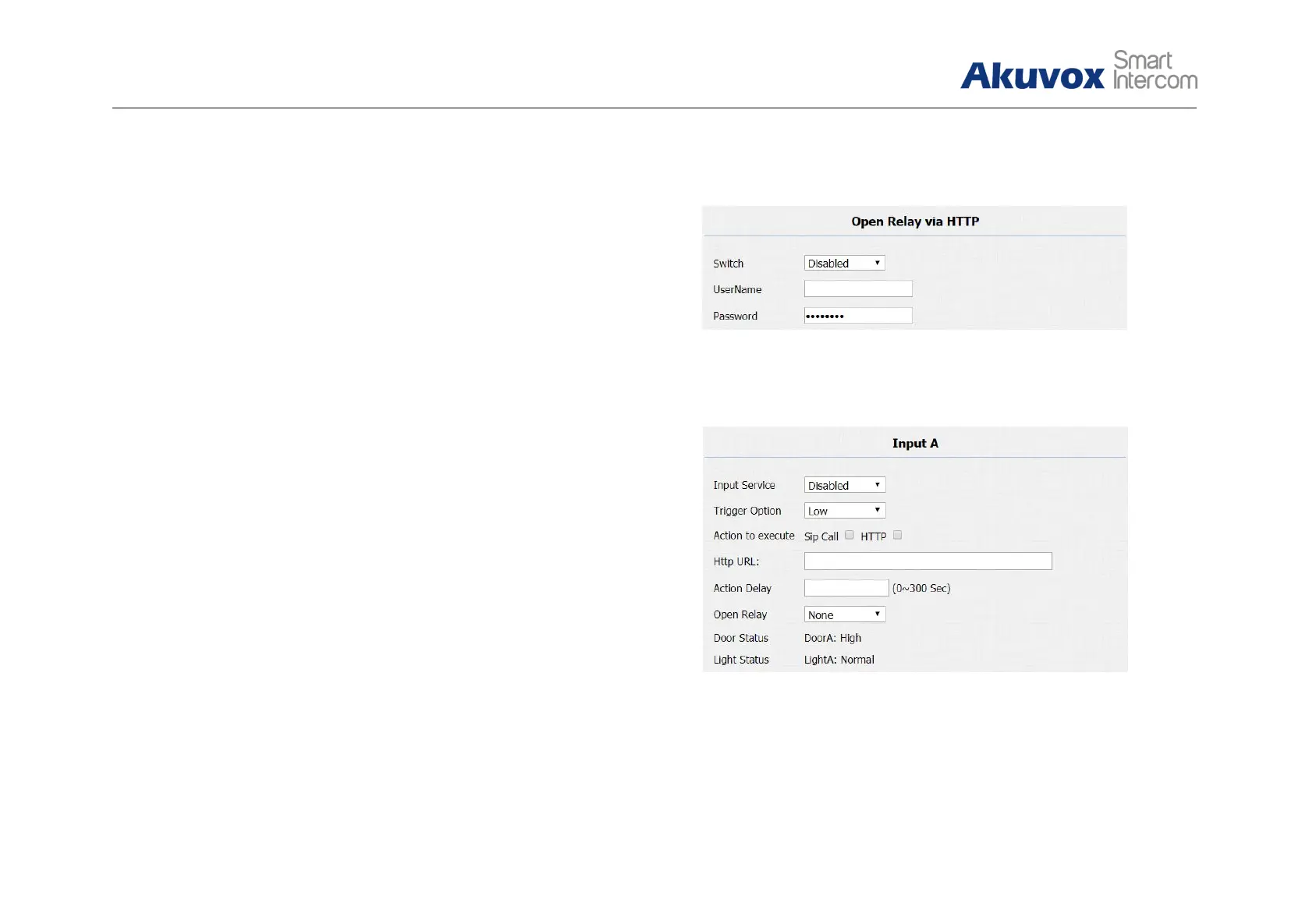

Figure 3.6.3 Open relay via HTTP
Figure 3.6.4-1 Unlock via exit button
