Help in case of malfunction
8.6 Changing over the quick-tension chain
wheel (18)
On EKI2200/40, EKS2400/40:
1. Unscrew and remove Phillips screw (18/1).
2. Remove the guide rail, turn it and screw it
back on using Phillips screw (18/1).
3. Projecting pin (18/2) defines the correct posi-
tion of the quick-tension chain wheel. Make
sure it is correctly seated.

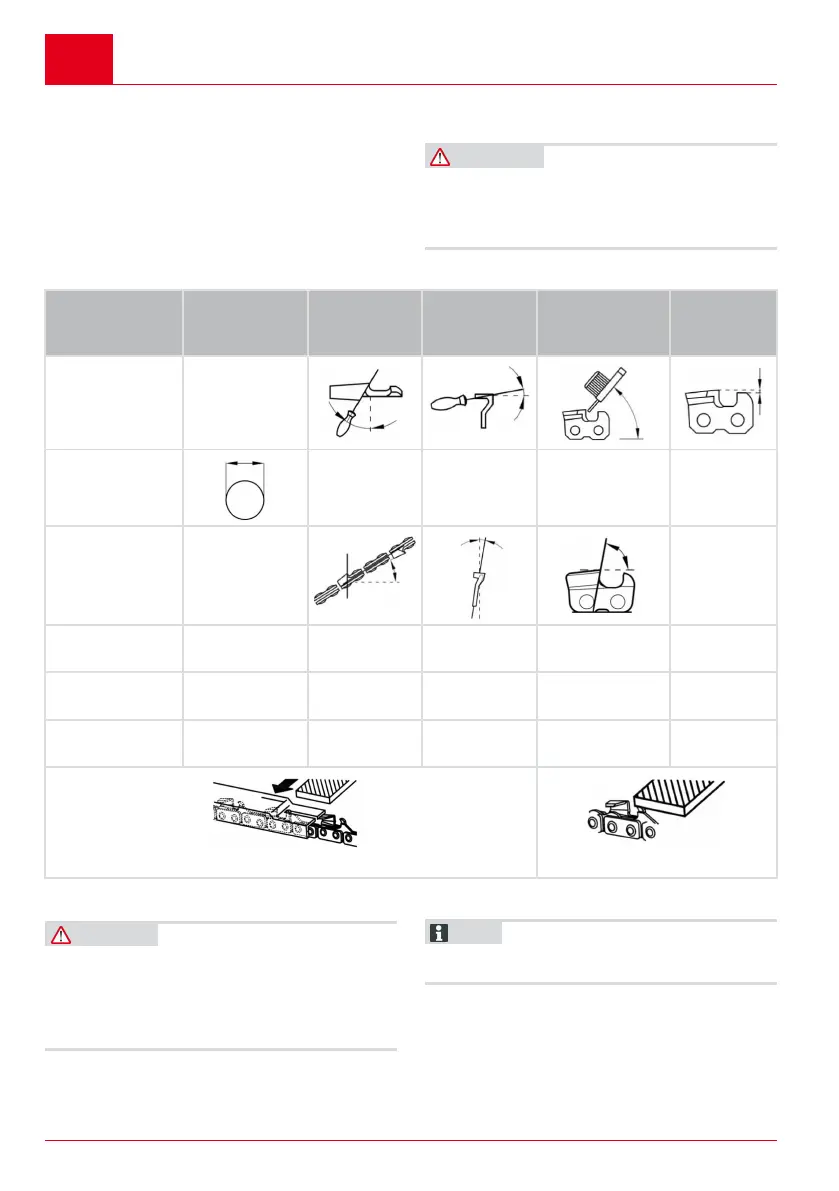

8.7 Chain maintenance table
Angles and dimensions: see figure (15).
WARNING! Danger of serious injury. Use
of an unapproved saw chain or guide rail on the
chain saw can result in serious injuries.
■
Use only approved saw chains and guide
rails.
Saw chain
(guide rail)
File diameter Top plate an-
gle (α)
Down angle
(β)
Head tilt angle
(γ)
Depth
gauge set-
ting (z)
Rotational an-
gle of the tool
Inclination an-
gle of the tool
Side plate angle
90PX040X
(104MLEA041)
4.5mm 30° 0° 75° 0.025"
91P045X
(120SDEA041)
5/32" 30° 0° 85° 0.025"
91PX052X
(140SDEA041)
5/32" 30° 0° 85° 0.025"
Depth gauge setting File
9 HELP IN CASE OF MALFUNCTION
CAUTION! Risk of injury. Sharp-edged
and moving appliance parts can lead to injury.
■
Always wear protective gloves during mainte-
nance, care and cleaning work!
■
Switch off the appliance and disconnect from
the mains power supply!
NOTE For malfunctions that are not listed
in this table or that you cannot resolve yourself,
please contact our customer service.
