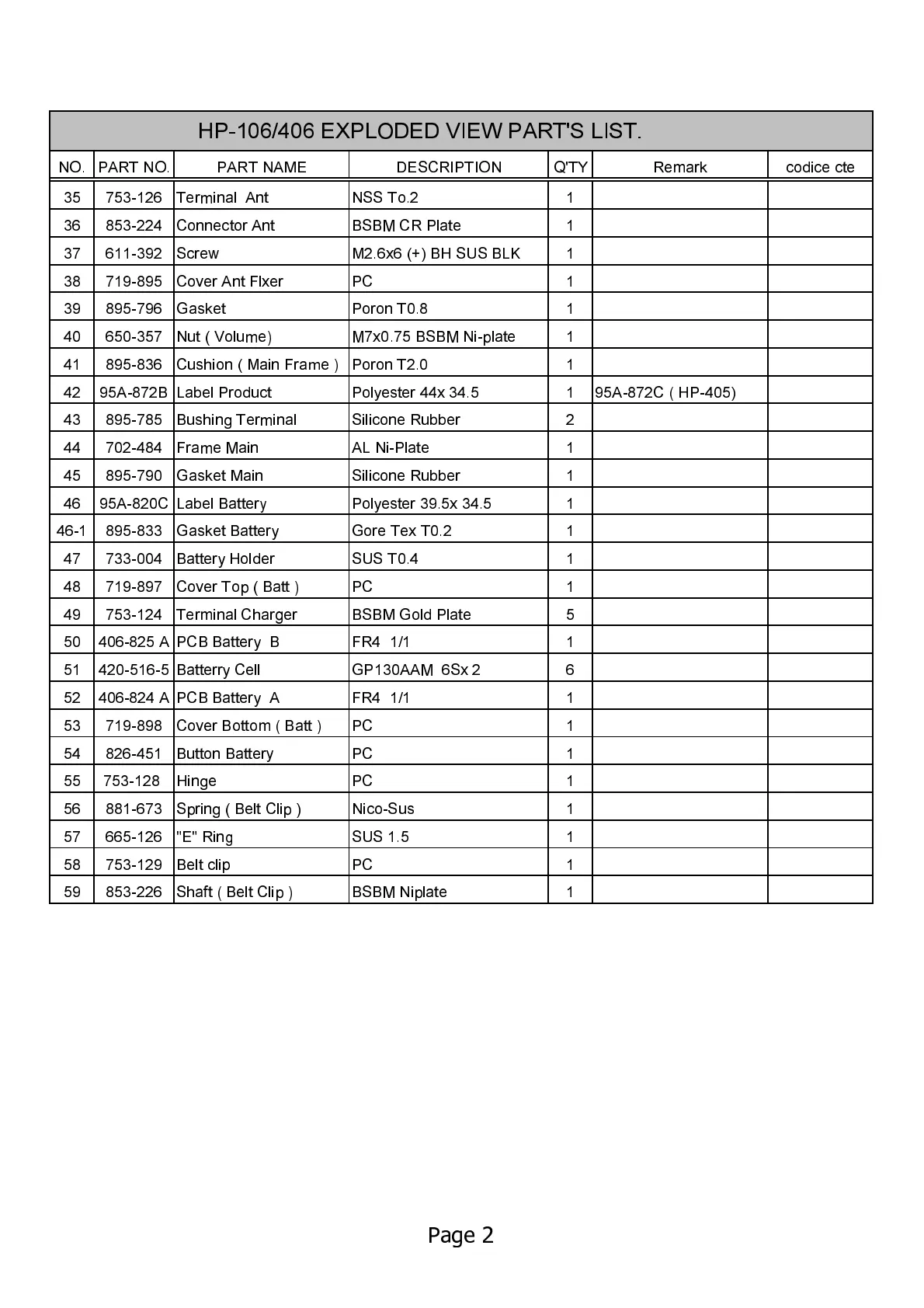

HP-106/406 EXPLODED VIEW PART'S LIST.
NO. PART NO. PART NAME DESCRIPTION Q'TY Remark codice cte
35 753-126 Terminal Ant NSS To.2 1
36 853-224 Connector Ant BSBM CR Plate 1
37 611-392 Screw M2.6x6 (+) BH SUS BLK 1
38 719-895 Cover Ant Flxer PC 1
39 895-796 Gasket Poron T0.8 1
40 650-357 Nut ( Volume) M7x0.75 BSBM Ni-plate 1
41 895-836 Cushion ( Main Frame ) Poron T2.0 1
42 95A-872B Label Product Polyester 44x 34.5 1 95A-872C ( HP-405)
43 895-785 Bushing Terminal Silicone Rubber 2
44 702-484 Frame Main AL Ni-Plate 1
45 895-790 Gasket Main Silicone Rubber 1
46 95A-820C Label Battery Polyester 39.5x 34.5 1
46-1 895-833 Gasket Battery Gore Tex T0.2 1
47 733-004 Battery Holder SUS T0.4 1
48 719-897 Cover Top ( Batt ) PC 1
49 753-124 Terminal Charger BSBM Gold Plate 5
50 406-825 A PCB Battery B FR4 1/1 1
51 420-516-5 Batterry Cell GP130AAM 6Sx 2 6
52 406-824 A PCB Battery A FR4 1/1 1
53 719-898 Cover Bottom ( Batt ) PC 1
54 826-451 Button Battery PC 1
55 753-128 Hinge PC 1
56 881-673 Spring ( Belt Clip ) Nico-Sus 1
57 665-126 "E" Ring SUS 1.5 1
58 753-129 Belt clip PC 1
59 853-226 Shaft ( Belt Clip ) BSBM Niplate 1
