Alcatel-Lucent 7210 SAS M - Point-to-Point (p2 p) Redundant Connection Across Layer 2;3 VPN Network

LAG
Page 74 7210 SAS M, T, X, R6, R12, Mxp Interface Configu-
ration Guide
Point-to-Point (p2p) Redundant Connection Across Layer 2/3 VPN Network

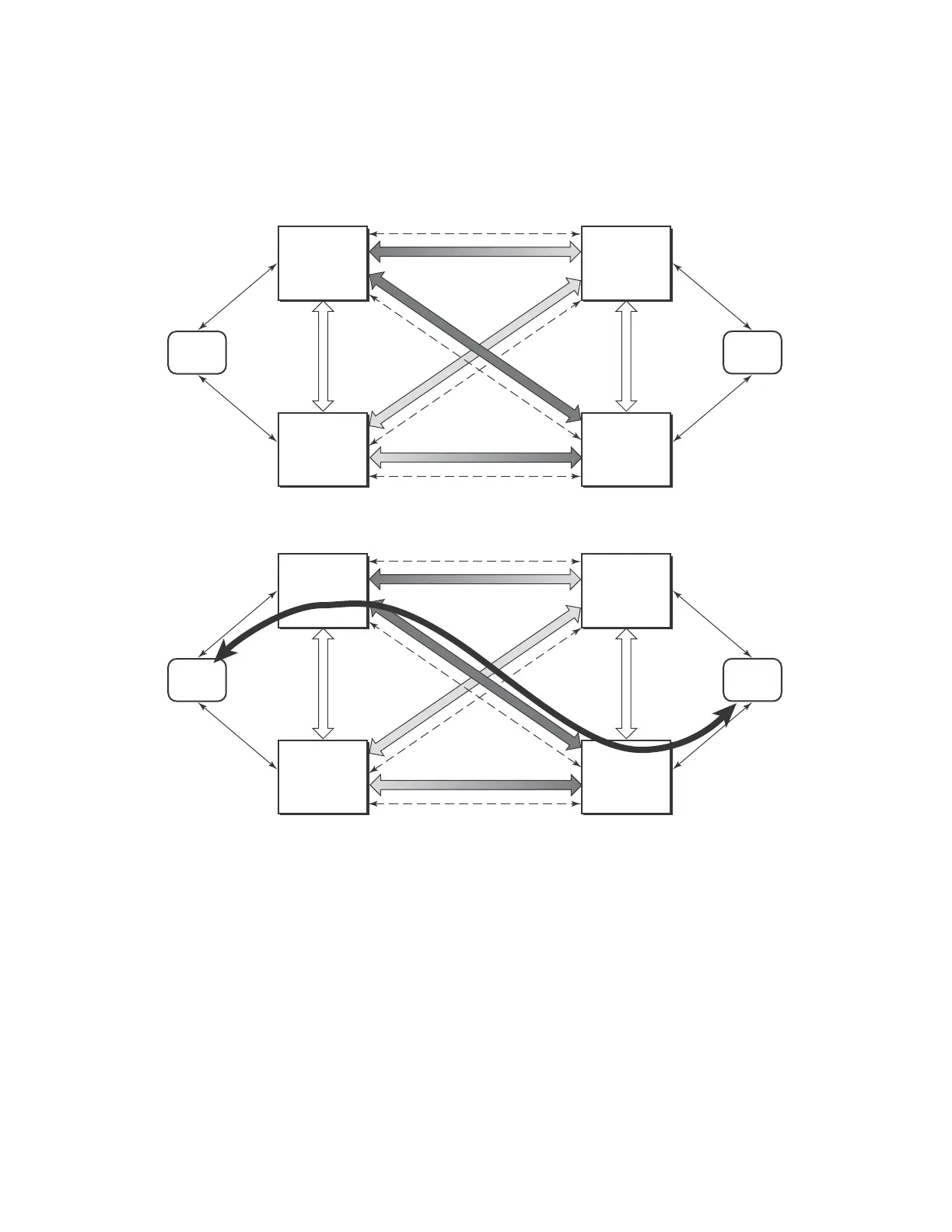

Figure 6: P2P Redundant Connection Through a Layer 2 VPN Network
Figure 6 shows the connection between two multi-service access nodes (MSANs) across network
based on Layer 2/3 VPN pseudo-wires. The connection between MSAN and a pair of PE routers
is realized by MC-LAG. From MSAN perspective, redundant pair of PE routers acts as a single
partner in LACP negotiation. At any point in time, only one of the routers has an active link(s) in a
given LAG. The status of LAG links is reflected in status signaling of pseudo-wires set between all
participating PEs. The combination of active and stand-by states across LAG links as well and
pseudo-wires give only 1 unique path between pair of MSANs.
Aggregation
node
A
Aggregation
node
C
MSANMSAN
Aggregation
node
B
Aggregation
node
D
Inter-chassis
PW for VLL
Active
Active
Active
Active
Standby
Standby
Standby
Standby
Standby
TLDP
Standby Active
Active
Inter-chassis
PW for VLL
Aggregation
node
A
Aggregation
node
C
MSANMSAN
Aggregation
node
B
Aggregation
node
D
Inter-chassis
PW for VLL
Active
Standby
Standby
TLDP
Active
Inter-chassis
PW for VLL
