OmniSwitch 6860 Chassis Details Chassis and Power Supplies
page 3-4 OmniSwitch 6860 Hardware Users Guide May 2014

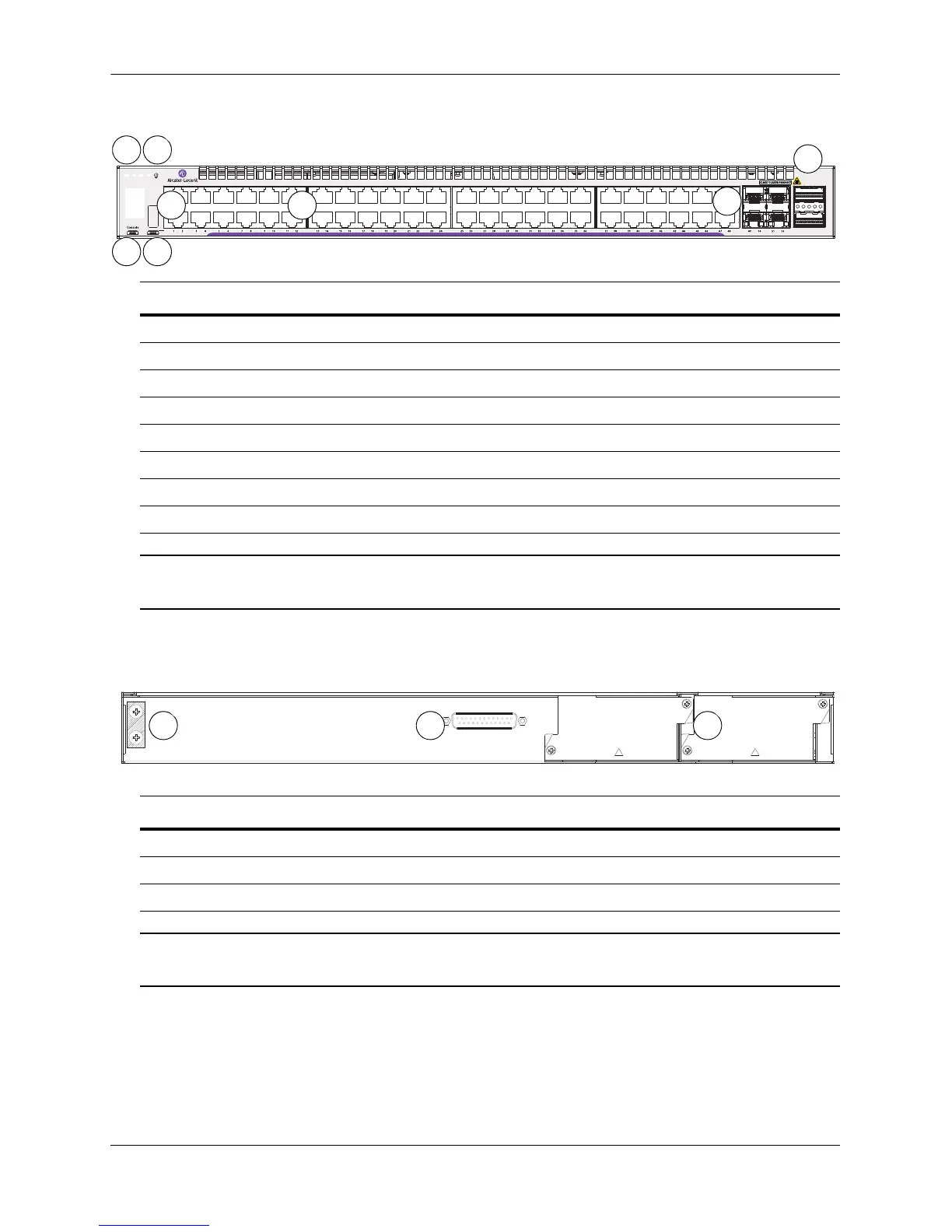

OS6860-48 Front Panel
CLASS 1 M LASER CAUTION. CAUTION - CLASS 1 M LASER RADIATION WHEN OPEN.
DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS
OS6860-48 Rear Panel
Note. Only the Alcatel-Lucent OnmiSwitch BPS may be attached to the DB25 backup power supply
connector. Refer to the switch’s technical specifications for max. power ratings for this connector.
Item Description
A
Virtual Chassis ID LED
B
Status LEDs
C
USB port
D
Console port
E
RS-232 port
F
(48) 10/100/1000 Base-T ports
G
(4) fixed SFP+ (1G/10G) ports
H
(2) 20G Virtual Chassis link ports
Item Description
A
Chassis Grounding Lug
B
OmniSwitch Backup Power Supply (OS-BPS) Connector (See note below.)
C
Power Supply/Fan Tray Bays
OS6860-48
USB
VFL/54
VFL/53
USB
RS232
OK
PRI PS
BPS
GRN
OS6860-48
USB
VFL/54
VFL/53
USB
RS232
OK
VC PS
BPS
GRN
G
H
D
F
E
A B
C
PS 1
PS 2
BPS
A B C
