OmniSwitch Backup Power Shelf/System (BPS) Rack-Mounting
OmniSwitch 6860 Hardware Users Guide May 2014 page 4-11
5 Insert the remaining rack-mount screws through the empty holes in the flange and tighten.

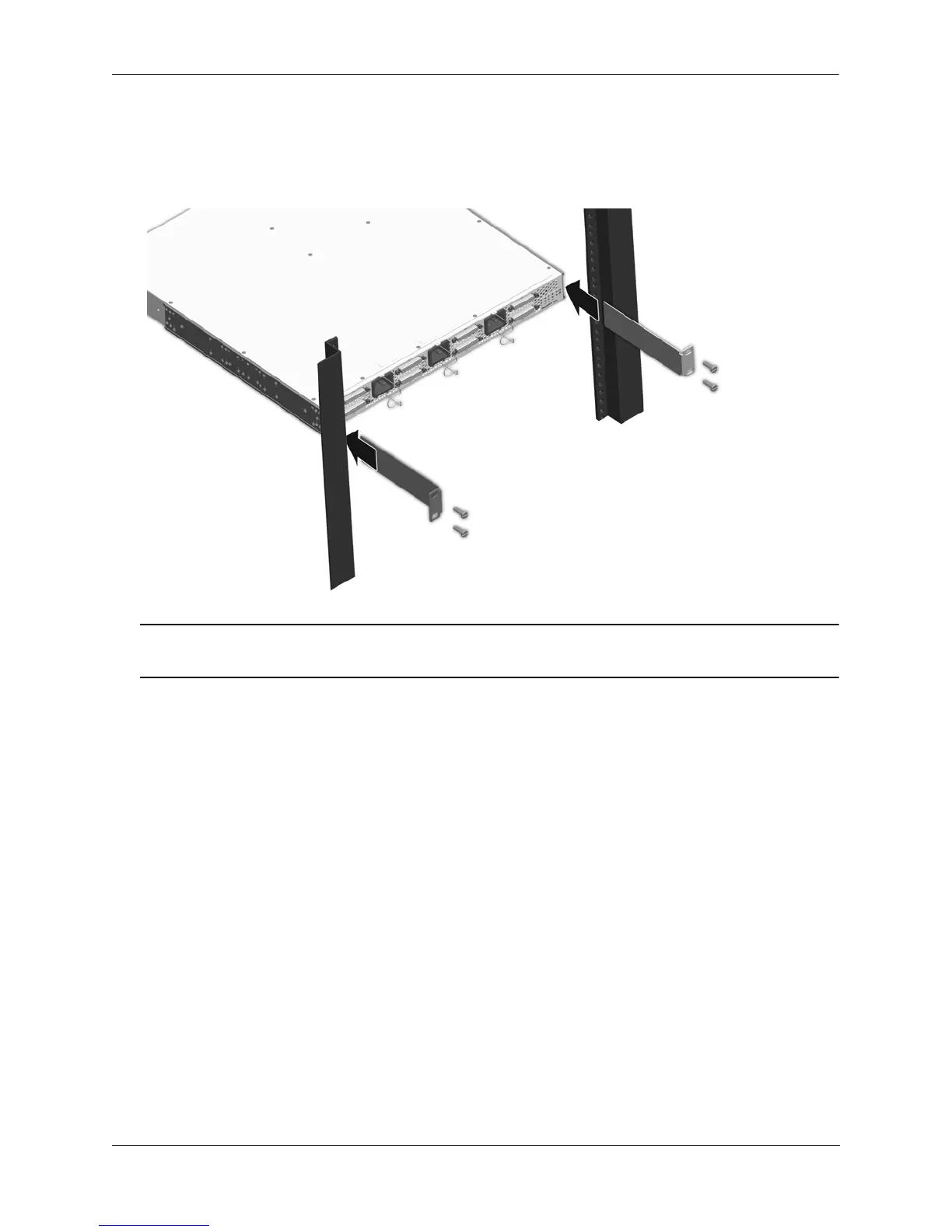

6 Next, secure the back of the chassis to the rear rack posts. With the flanges facing out, insert the slide-
in braces into the slot rails until they meet the rear rack posts.
Note. The chassis installation should be level. Be sure that the rear flanges are aligned with the
corresponding holes at the front of the rack.
7 Insert rack mount screws through the rear rack mount flanges and tighten.
