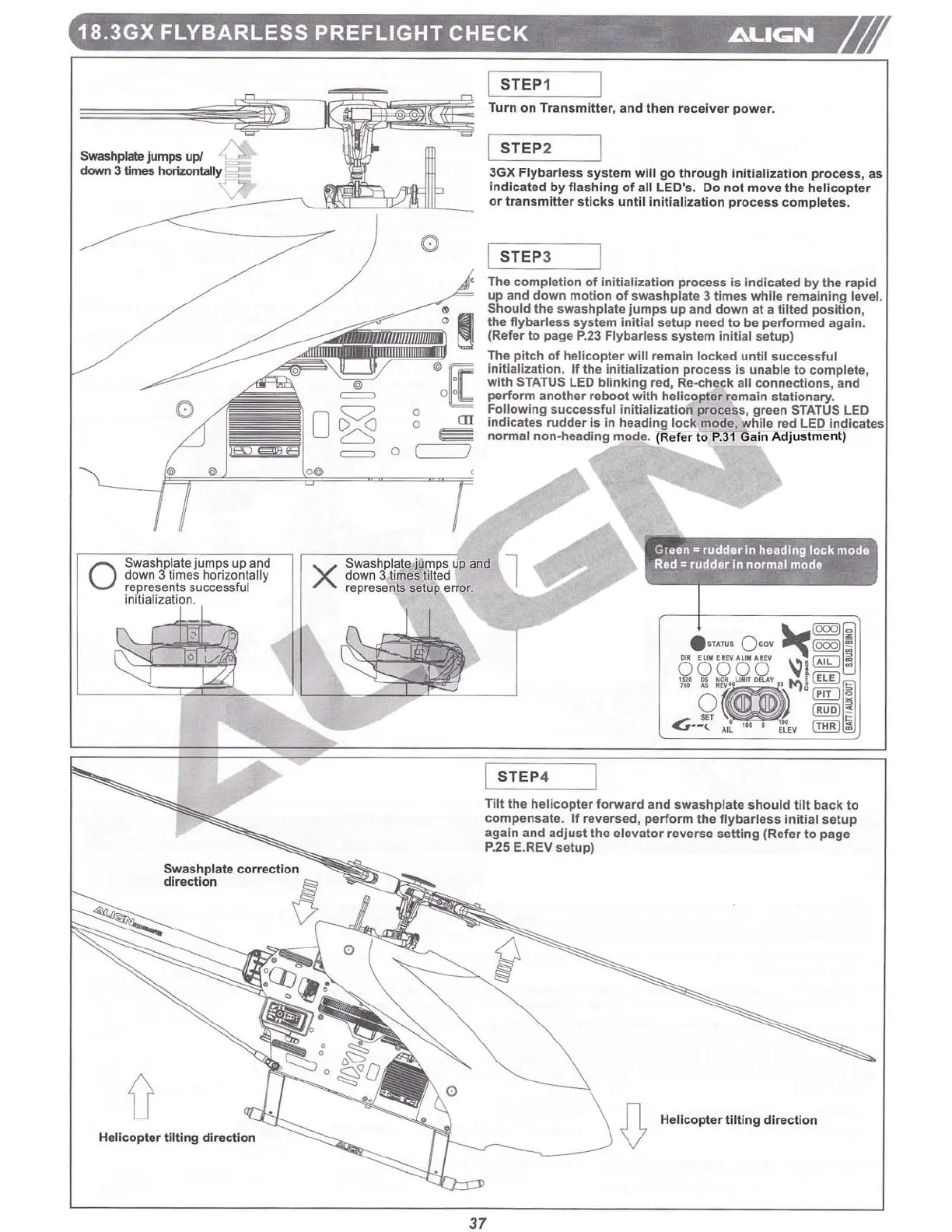

18.3GX FLYBARLESS PREFLIGHT CHECK L\LICiON
I STEP 1
Turn on Transmi tt er, and then receiver power.
[ STEP 2
3GX Fl yb ari ess sys tem will go thro ugh ini tialization proc ess , as
Indicated by fla
shi ng of all l EO' •. Do n ot m ove the h elicopt er
or
tra nsmi tte r sti c ks u ntil i nitiali zati on process complet e •.
o
ISTEP3
DHellcopter til ting dir e cti on
The completion of initialization process is in dicated by the rap id
up and down motion of swashptate 3 times while remaining level.
Sho uld the swashplate j umps up and down at ill tilted position ,
the f1ybaness system
initial setup need to be pe rformed again.
(Refer to page P.23 Flyba rless system Initial setup)
The
pitc h of helicopter wil l remain locked until s uccessf ul
Init ializatio n. If the initializati on process is un abl e to comp lete,
with STATUS LED bli nking red, Re-eheck all con
necti ons, and
perfor m a not her reb oo t with helic opter remain stationary.
FollOW ing successf ul in itiali zation pr ocess, green STATUS LEO
indicates rud der is In headi ng lock mode, while red LEO Ind icate s
nonnal non-hea ding mode . (Refer to P.31 Gain Adju stm ent )
Tilt the hel icopt er forwa rd and swash plate sho uld till back to
c omp ensate. If reve rsed , pe rf onn the f lyba rl ess in itlal se tup
again and adjust the elevato r reverse setti ng (Re fer to page
P.25 E.REV
set up)
ISTE P4
Swashplale jUmps up and
down j times lilted
represents setup:error.
x
0'-'
Swashplate comtctlo n
dire
ctio n ~
~ ~
H eli copt er tilt ing dir ection ;: -J:; :::::::::::: "" ... :::: ::::~ ~~ ~~~: ~ ~
O
Swash plate jumps up and
down 3times horizontally
represents success ful
initialization.
37
