ARTIX-7 FPGA Development Board AX7035 User Manual
21 / 42

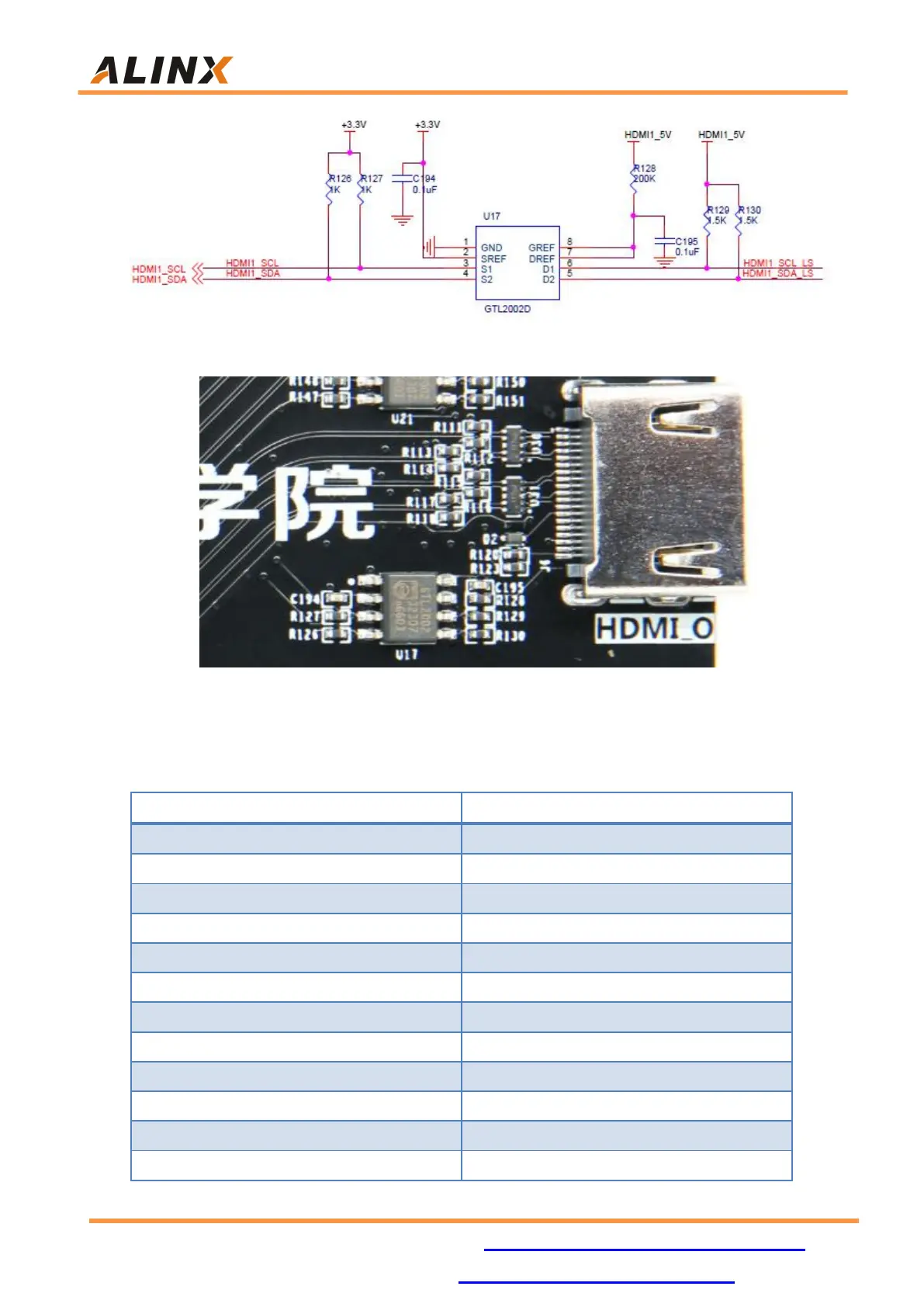

Figure 9-3: GTL2002D level conversion circuit
Figure 9-4: HDMI Output Interface on the FPGA Board
HDMI Output Pin Assignment
Pin Name
FPGA Pin
HDMI1_CLK_P
E1
HDMI1_CLK_N
D1
HDMI1_D0_P
G1
HDMI1_D0_N
F1
HDMI1_D1_P
H2
HDMI1_D1_N
G2
HDMI1_D2_P
K1
HDMI1_D2_N
J1
HDMI1_SCL
P4
HDMI1_SDA
N3
HDMI1_OUT_EN
M6
HDMI1_HPD
P5
