ARTIX-7 FPGA Development Board AX7035 User Manual
24 / 42

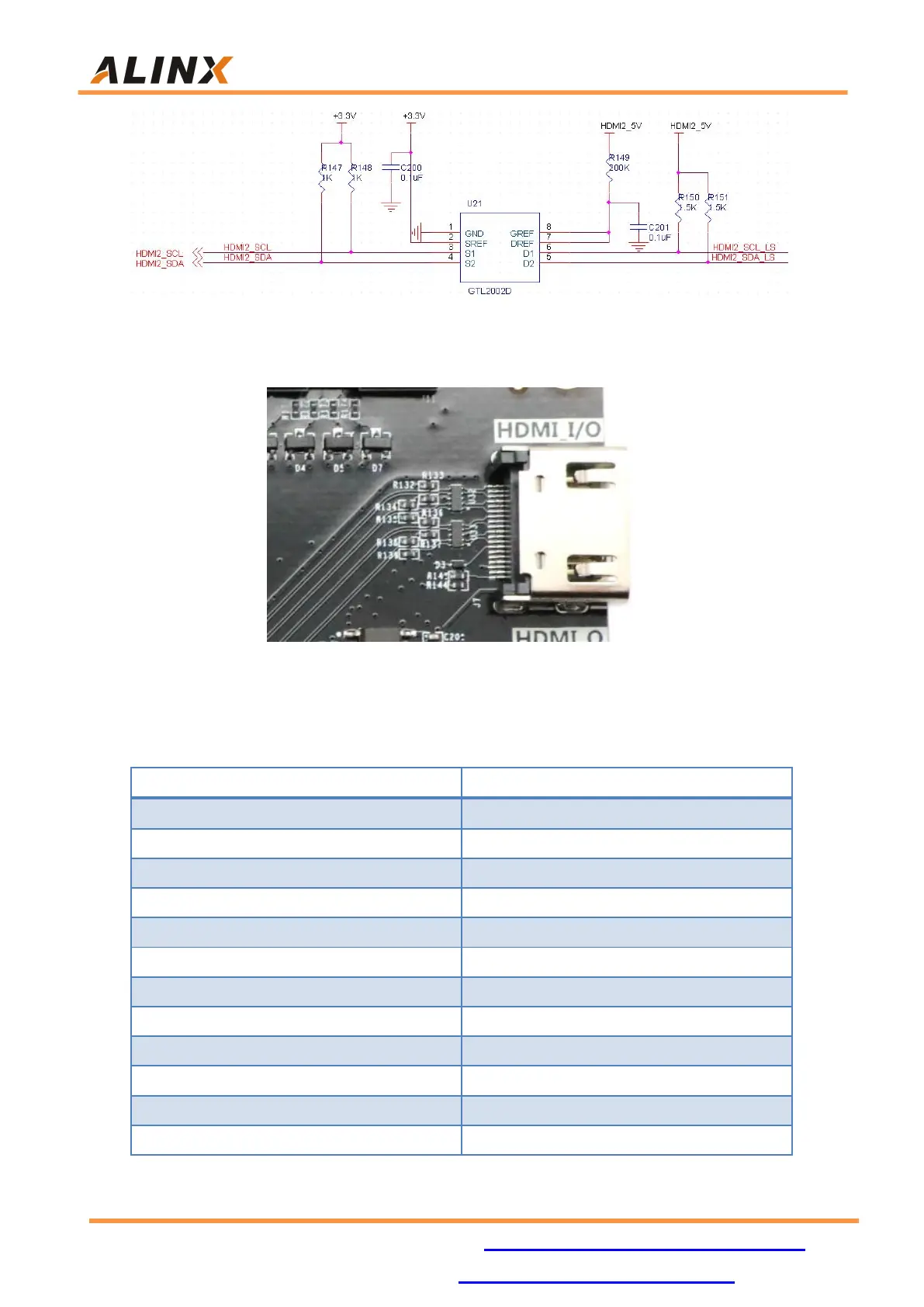

Figure 10-3: GTL2002D level conversion circuit
Figure 10-4: HDMI Input Interface on the board
HDMI Input Interface Pin Assignment
Pin Name
FPGA Pin
HDMI2_CLK_P
K4
HDMI2_CLK_N
J4
HDMI2_D0_P
M1
HDMI2_D0_N
L1
HDMI2_D1_P
P2
HDMI2_D1_N
N2
HDMI2_D2_P
R1
HDMI2_D2_N
P1
HDMI2_SCL
N5
HDMI2_SDA
L6
HDMI2_OUT_EN
P6
HDMI2_HPD
M5
