86 Rockwell Automation Publication 1444-UM001D-EN-P - June 2018
Chapter 2 Install the Dynamix 1444 Series Monitoring System
Self-generating Magnetic Sensor
The connected channel of the Tachometer Signal Conditioner must be
configured with:
• Transducer Type = Self-generating Magnetic Pickup, and
• Transducer Power = OFF
Wire the pickup as illustrated.

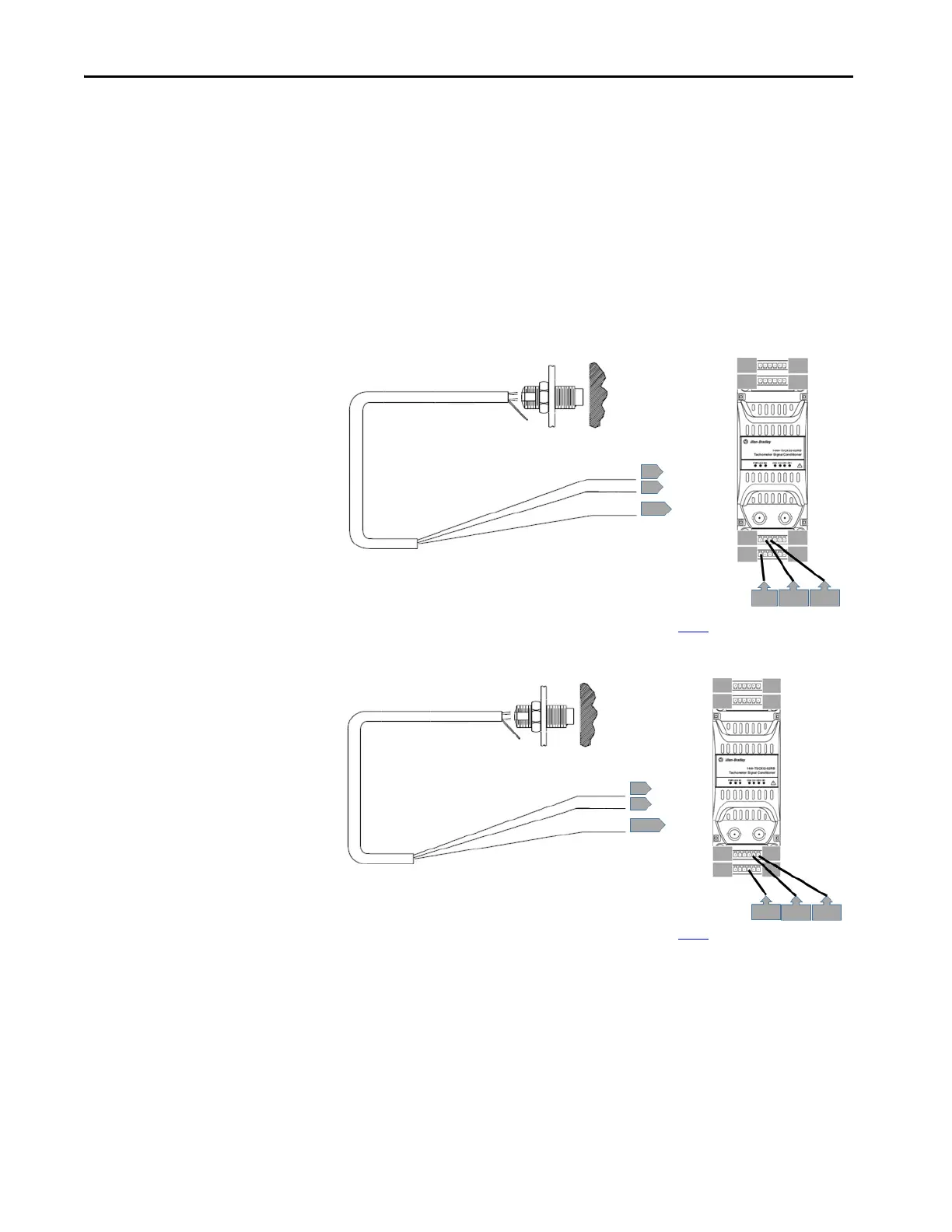

Figure 36 - Channel 0 Wiring for a Self-generating Magnetic Sensor
* Shield can be landed to any available shield connection. See the IMPORTANT note on page 56 for additional information.
Figure 37 - Channel 1 Wiring for a Self-generating Magnetic Sensor
* Shield can be landed to any available shield connection. See the IMPORTANT note on page 56 for additional information.
Shield Floating
Common
Signal
Shield
24
19
3
7*
2
18
13
16
7
12
72
3
Shield Floating
Common
Signal
Shield
6
5
10*
24
19
18 13
1
6
7
12
10
5
6
