Configure the Linking Device Chapter 4

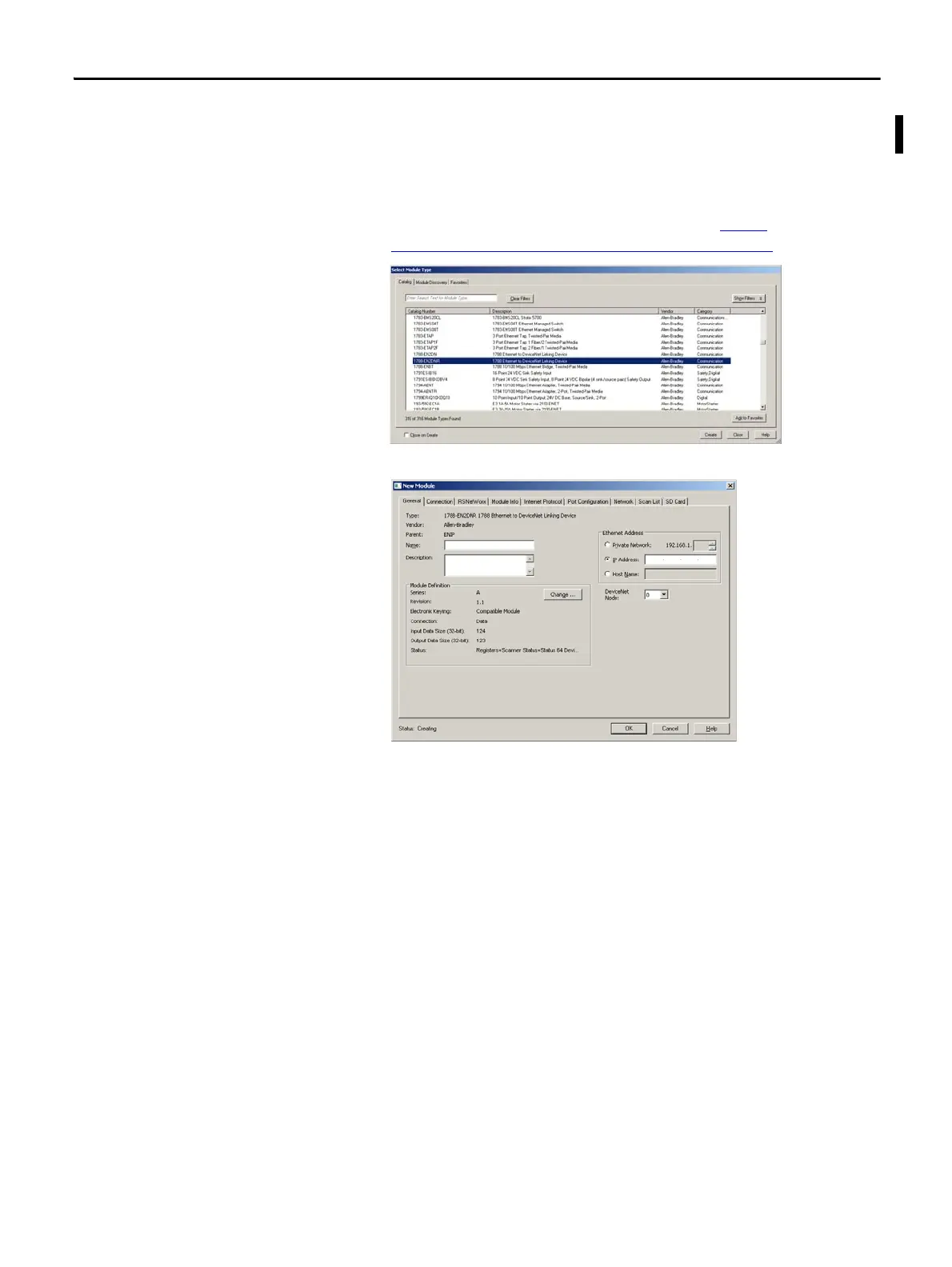

7. From the Select Module Type dialog box, select “1788 Ethernet to
DeviceNet Linking Device” and click Create.
The AOP needs to be installed for the linking device to show up in the list.
Download firmware and associated files (such as AOP files) from the
Product Compatibility and Download Center at: http://
www.rockwellautomation.com/global/support/pcdc.page
The New Module dialog box appears.
8. In the Name box, enter a module name.
9. Click IP Address and type the IP address for which the linking device is
configured.
10. Click the Connection tab.
11. Enter the Requested Packet Interval (RPI or update rate) in a range from
2…750 ms.
12. Click the RSNetWorx tab.
