214 Rockwell Automation Publication 5069-UM004A-EN-P - April 2019
Appendix A Troubleshoot Your Module
Figure 22 shows the Compact 5000 I/O standard DC input modules
status indicators.

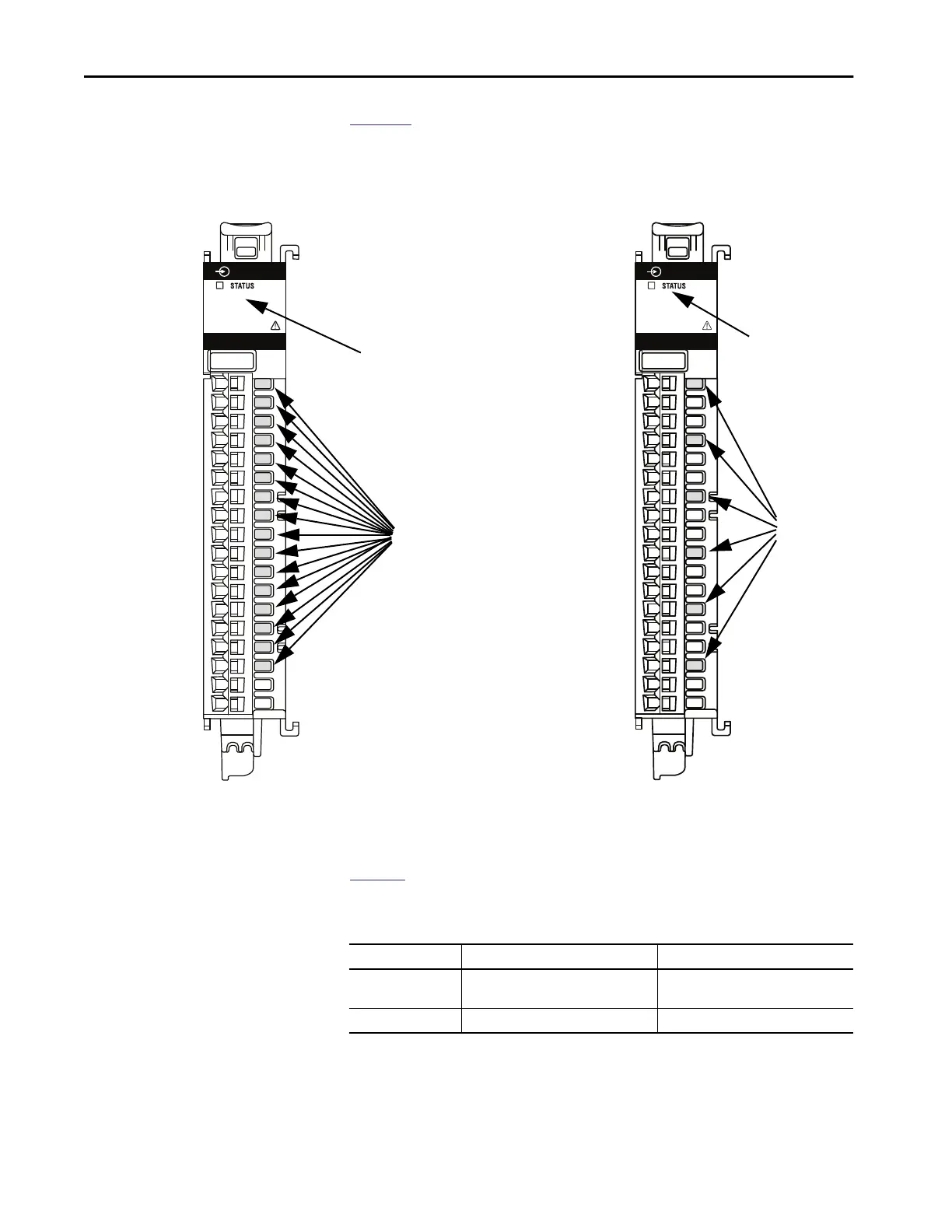

Figure 22 - Compact 5000 I/O Standard DC Input Module Status Indicators
Table 50 describes the Compact 5000 I/O standard DC input modules I/O
status indicators.
DC INPUT
5069-IB6F-3W
DC INPUT
5069-IB16
5069-IB16, 5069-IB16F, 5069-IB16K
IMPORTANT: The 5069-IB16F and 5069-IB16K module status indicators
appear the same as the indicators are shown on the 5069-IB16 module.
Input Channel 0 (I00)
SA+ (24V DC)
SA- (24V DC Return)
Input Channel 1 (I01)
SA+ (24V DC)
SA- (24V DC Return)
Input Channel 2 (I02)
SA+ (24V DC)
SA- (24V DC Return)
Input Channel 3 (I03)
SA+ (24V DC)
Input Channel 4(I04)
SA+ (24V DC)
SA- (24V DC Return)
Input Channel 5 (I05)
SA+ (24V DC)
SA- (24V DC Return)
SA- (24V DC Return)
Module Status
Indicator
I/O Status
Indicators
5069-IB6F-3W
Input Channel 0 (I00)
Input Channel 1 (I01)
Input Channel 2 (I02)
Input Channel 3 (I03)
Input Channel 4 (I04)
Input Channel 5 (I05)
Input Channel 6 (I06)
Input Channel 7 (I07)
Input Channel 8 (I08)
Input Channel 9 (I09)
Input Channel 10 (I10)
Input Channel 11 (I11)
Input Channel 12 (I12)
Input Channel 13 (I13)
Input Channel 14 (I14)
Input Channel 15 (I15)
No Connect
No Connect
Module Status
Indicator
I/O Status
Indicators
Table 50 - I/O Status Indicators - Compact 5000 I/O Standard DC Input Modules
Indicator State Description Recommended Action
Off The input is Off, or no module power
applied
None
Steady yellow The input is On. None
