Allen-Bradley 5069-OBV8S User Manual

218 Rockwell Automation Publication 5069-UM004A-EN-P - April 2019
Appendix A Troubleshoot Your Module

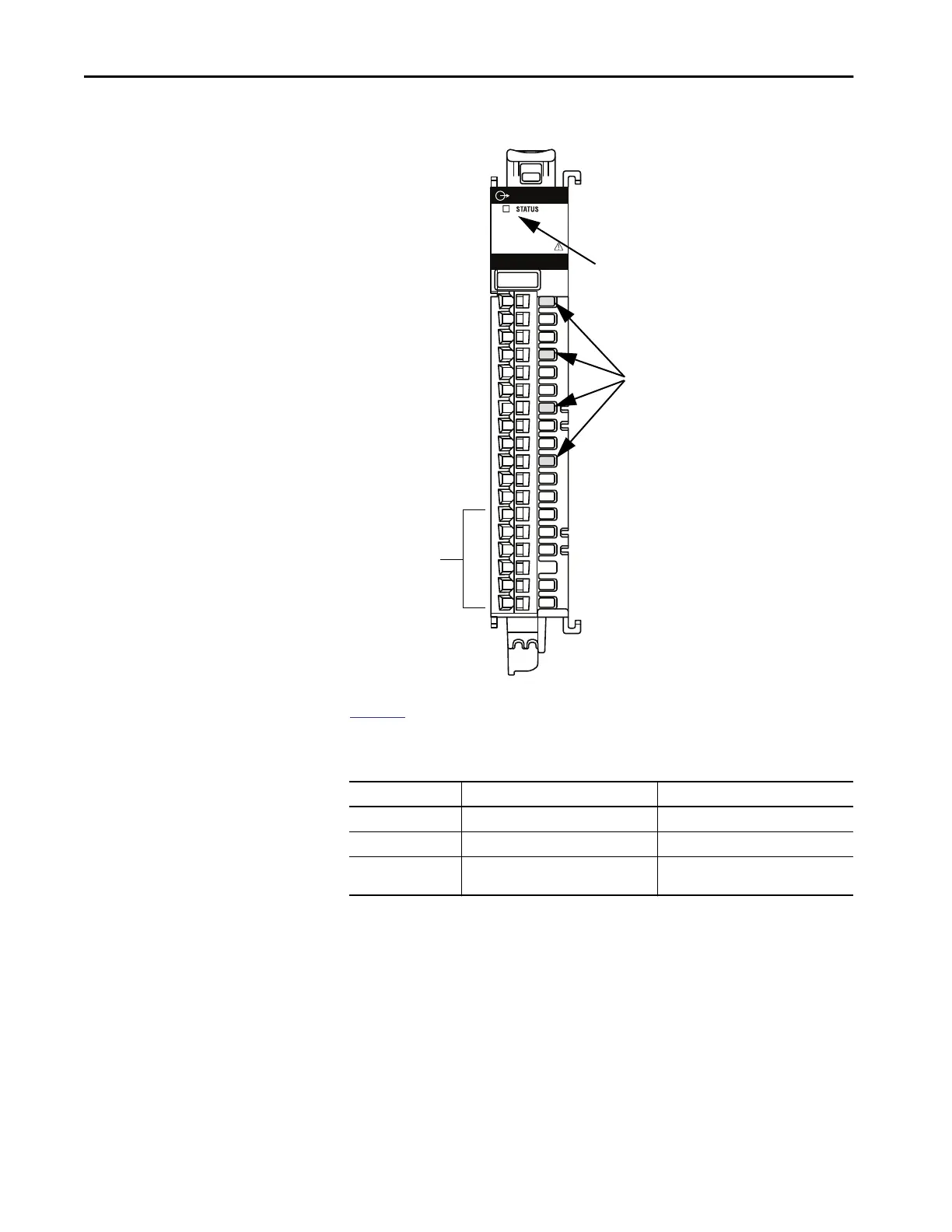

Table 53 describes the I/O status indicators on Compact 5000 I/O standard
relay output modules.
Table 53 - I/O Status Indicators - Compact 5000 I/O Standard Relay Output Modules
Indicator State Description Recommended Action
Off Output is Off, or no module power applied None
Steady yellow The output is On. None
Flashing red 5069-OW16 only - A Field Power Loss
condition exists.
Locate and correct the cause of field power
loss condition.
RELAY OUTPUT
5069-OX4I
Module Status Indicator
I/O Status Indicators
5069-OX4I
Terminals
are unused
(O COMMON)
(1 COMMON)
(2 COMMON)
(0 N.C.)
(0 N.O.)
(1 N.C.)
(1 N.O.)
(2 N.C.)
(2 N.O.)
(3 N.C.)
(3 N.O.)
(3 COMMON)
