3–3Configuring Through DeviceNet Manager Software
Publication 1756–6.5.15 – July 1998
Accessing the Module Configuration Screen
To access the Module Configuration screen, double-click on the
1756–DNB communication module icon.

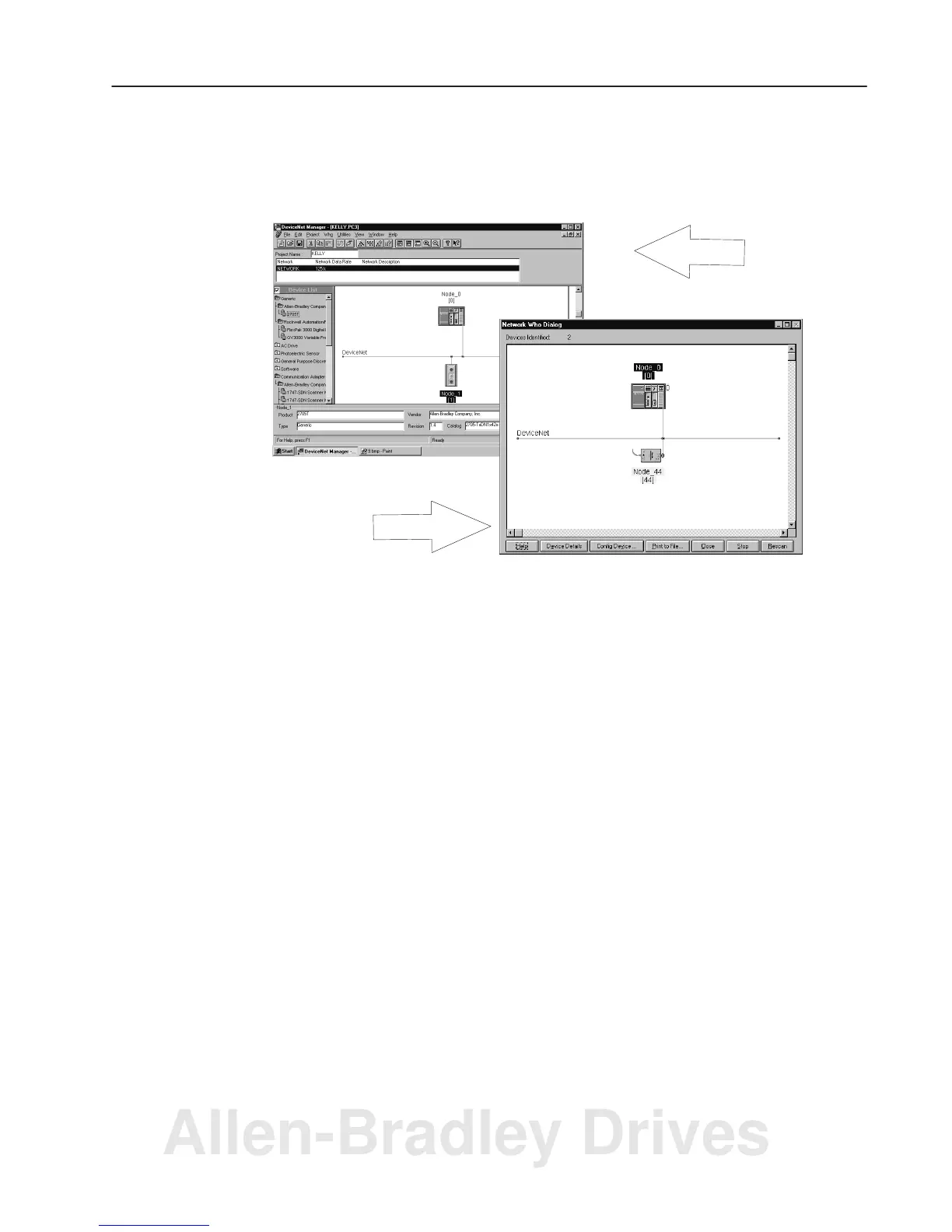

Project View
Network Who
When there is more than one communication module in the Project
or Network Who screen, you can tell what communication module a
device belongs to by the color that surrounds the device. You can
also place the cursor over the device until the yellow box is activated
with the Product Type information.
For example, a device highlighted in red belongs to the scan list in
the communication module highlighted in red.
A number also appears in the upper right corner of a device
indicating the scan list to which it belongs.
Important: The colors surrounding a device or communication
module are arbitrary and indicate nothing more than the
communication module/device relationship.
"
