3–8 Configuring Through DeviceNet Manager Software
Publication
1756–6.5.15 – July 1998
The 1756–DNB Scan List Editor screen displays a summary of the
network residing selected in the Module Configuration screen.
For information about See page
Scan list editor functions 3–8
Removing devices from the scan list 3–9
Viewing device information in the
scan list
3–9
Adding devices to the scan list from the
Scan List Editor screen
3–11
Configuring a device in the scan list 3–13
Determining data-mapping preferences
with auto map
3–15
Scan List Editor Functions

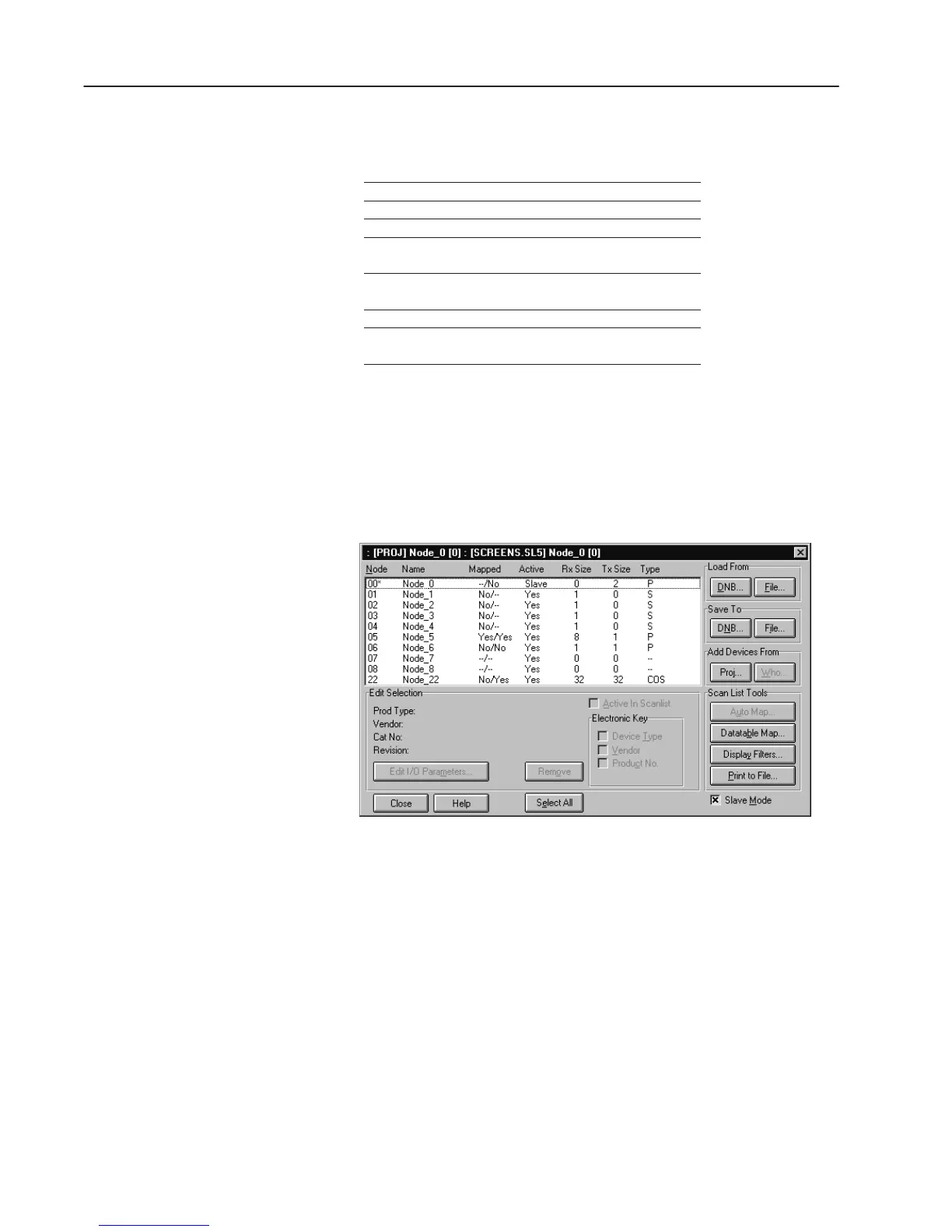

The 1756–DNB Scan List Editor screen displays a summary of the
network residing on the channel selected in the Module
Configuration screen and allows you to determine I/O and
data-mapping preferences.
The Scan List Editor screen supports a multiple-selection method.
You can select multiple devices for edit at one time (these devices do
not have to be consecutive). For example, you can choose nodes 1
and 2, then skip to nodes 5 and 10. You do not have to choose the
nodes between 2 and 5 or 5 and 10. Highlight the specific nodes or
range of nodes then choose the desired function.
When you choose Slave Mode, the communication module becomes
enabled to be placed in another communication module’s scan list as
a slave device.
Using the Scan List
Editor Screen
"
To Next Page
